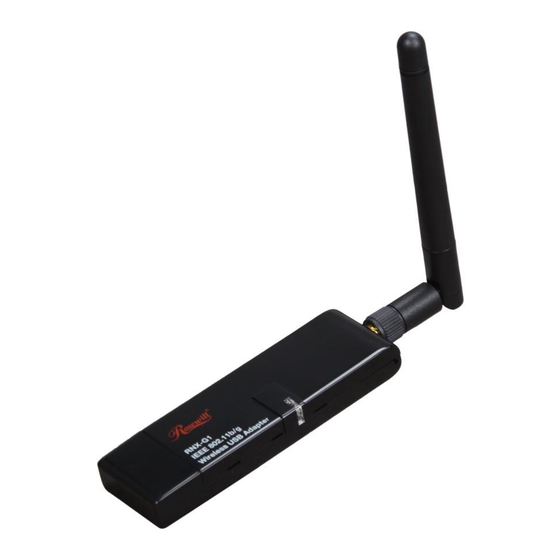

- Page 1 WIRELESS ADAPTER RNX-G1/G1W QUICK INSTALLATION GUIDE...
-
Page 2: Installation
Wireless adapter NX-G1/G1W Quick Installation Guide For advanced configuration, refer to the User’s Manual in the CD-ROM provided. Installation Warning! Do not cover or block the airflow to the adapter. The adapter will reach a high temperature during use. Before you proceed with the installation, please notice the following descriptions. Note1: The following installation was operated under Windows XP. - Page 3 Wireless adapter NX-G1/G1W Quick Installation Guide Choose a set up language. Click Next to process the installation. The system starts software installation of the WLAN USB adapter.
- Page 4 Wireless adapter NX-G1/G1W Quick Installation Guide On Windows Logo Software Installation screen, click Continue Anyway to continue. Note: Not all the drivers will have this message box. Click Finish to complete the installation.
- Page 5 Wireless adapter NX-G1/G1W Quick Installation Guide 7. After click Finish to complete the installation , under Windows XP <ALL Programs> menu , REALTEK USB wireless LAN Utility program installed. Please reboot the system after all installation complete. 8. Insert the wireless LAN USB adapter into your computer USB port , the computer detected and active the wireless LAN USB adapter automatically.
-
Page 6: Rt Wlan: Wireless Lan Management Gui
Wireless adapter NX-G1/G1W Quick Installation Guide Rt WLAN: Wireless LAN Management GUI Introduction of Main Window A. Main Menu C. Properties Area B. Adapter List Area D. Global Control Bar E. Status Bar A. Main Menu The main menu includes five submenus. 1. - Page 7 Wireless adapter NX-G1/G1W Quick Installation Guide 2. Set Wizard(S) There are 2 modes for RNX-G1/G1W. If you want to connect your computer directly to a wireless router, please select station mode (2.1). If you want to set up RNX-G1/G1W as an AP, please select AP mode (2.2) 2.1 Wizard-1 (station mode) 1.
- Page 8 Wireless adapter NX-G1/G1W Quick Installation Guide 2. From red box you can access the AP you search or click Refresh button to search available AP. Select one and click Next. 3. Click...
- Page 9 Wireless adapter NX-G1/G1W Quick Installation Guide 4. Click to connect If password is needed, you need to fill in password at green box. Click to connect.
- Page 10 Wireless adapter NX-G1/G1W Quick Installation Guide 5. Click Finish and now you can access to internet. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
