Acer G246HYL Quick Start Manual

Acer LCD Monitor Quick Start Guide (QSG)
Important safety instructions
Please read the following instructions carefully.
1 To clean the LCD monitor screen:
• Turn off the LCD monitor and unplug the power cord.
• Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
2 Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.
3 Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
4 Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of
any nature.
5 Store the LCD monitor in a room with a temperature of -20° to 60° C (-4° to 140° F). Storing the LCD monitor outside this
range may result in permanent damage.
6 Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:
• Monitor-to-PC signal cable is frayed or damaged.
• Liquid spills onto the LCD monitor or the monitor is exposed to rain.
• The LCD monitor or case is damaged.

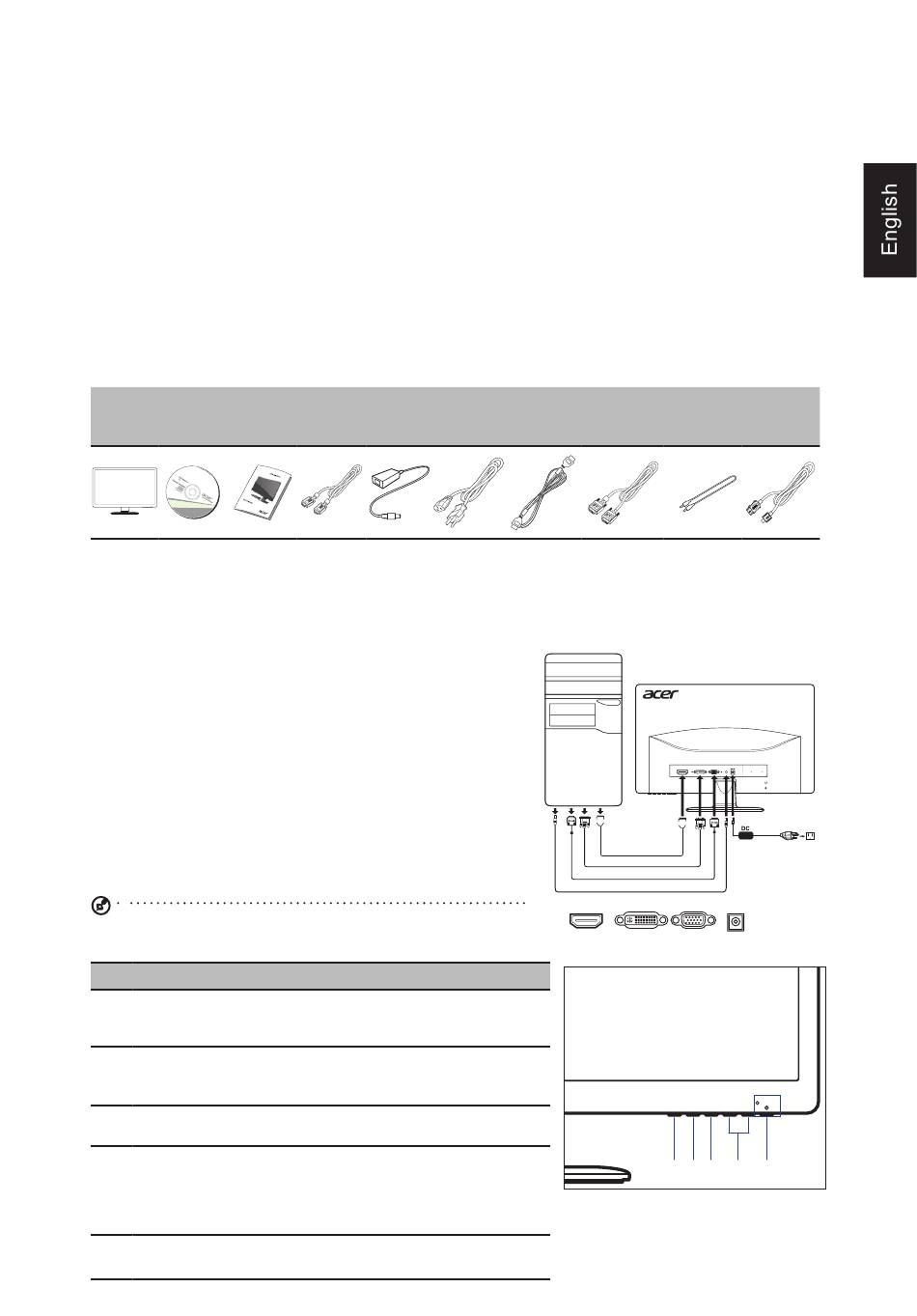

Package contents
Quick
LCD User
start
monitor guide
guide
Adjusting the monitor base
1 Carefully remove the monitor from its packaging.
• The monitor base is attached onto the monitor before shipment and it is undetachable.
2 Pull the monitor base out fully so that the monitor can be placed on a stable surface in the upright position.
3 Secure the monitor base by turning the white screws (at the bottom of the base) using the integrated tab or a suitable coin.
Connecting your monitor to a computer
1 Turn off your computer and unplug your computer's power cord.
2 Connect the signal cable to the VGA and/or DVI-D (optional) and/or
HDMI input socket of the monitor, and the VGA and/or DVI-D (optional)
and/or HDMI output socket of the graphics card on the computer.
or connect MHL cable(Only for MHL-Input Model)(Optional) to the
portable device.Then tighten the thumbscrews on the signal cable
connector.
3 Connect one end of the adapter to the monitor and the other end to a
properly grounded, AC outlet.
4 Plug the power cords of your computer and your monitor into a nearby
electrical outlet.
5 Connect the audio cable.
Connect an audio cable to the audio port of the monitor.
Note: MHL input only works for the MHL-certified device. Please chek
user manual for more instruction.
Panel controls
No. Item Description
1 Power button/ Turns the monitor on/off. Blue indicates power
indicator on. Blinking blue indicates standby/power saving
mode.
< >
2
/ button Press the
function or to change the settings of the current
function.
3 Menu/Enter Press to view the OSD menu. Press it again to
button enter a selection in the OSD menu.
4 Auto/Exit button • When the OSD menu is active, press this
• When the OSD menu is inactive, press
5 Empowering Press this button to open the Acer eColor
Key Management OSD and access the scenario modes.
D-sub AC
cable Adapter
< >
/ button to navigate to the desired
button to exit the OSD menu.
this button to activate the Auto Adjustment
function.
AC HDMI
DVI cable
Power cable
(Optional)
cord (Optional)
HDMI
HDMI
Audio MHL
cable cable
(Optional) (Optional)
HDMI DVI-IN VGA IN AUDIO IN
H DMI
HDMI
DVI
VGA
AUDIO IN
DVI VGA DC IN
5 4 3 2 1
