- Page 1 USER’S GUIDE ® " Wi-Fi Video Baby Monitor MODELS: CONNECT20 The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit 10 9 Display (LCD screen) TALK button Parent Unit ON/OFF and Press and hold to speak to your Charging LED baby. Red when the parent unit is ON. 10. Mocrophone Purple when electrical outlet 11. Antenna connected.

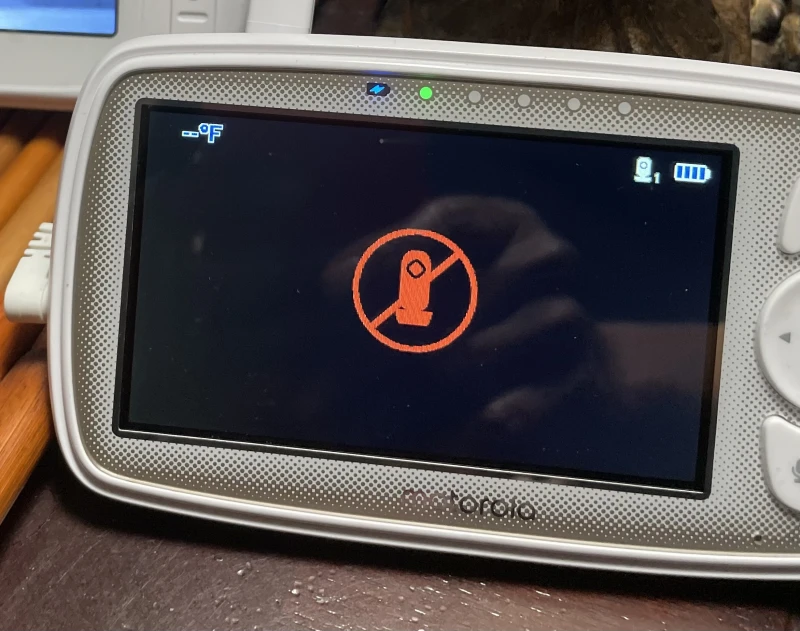

- Page 4 Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X).
- Page 5 Overview of Your Baby Unit High Sense Microphone Infrared LEDs (x 8, for night vision) Speaker Photo Sensor (Night Vision Mode) PAIR button Camera Lens Power/Link indicator Power Socket Antenna Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor •...
-
Page 6: Table Of Contents
Table of contents Safety Instructions ..................8 Getting Started ..................10 2.1 Connecting the Power Supply for the Baby Unit ........10 2.2 Connecting the Power Supply of the Parent Unit........10 2.3 Desktop Stand of the Parent Unit .............. 11 2.4 Registration (Pairing). - Page 7 Procedure for Resettingthe Camera ............. 26 Disposal of the Device (environment)............27 1 0 . Cleaning ......................27 1 1 . Help ......................28 12. General Information ................36 13. Technical Specifications ................42...
-
Page 8: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 9 ® Wi-Fi CAMERA UNIT SET UP & USE: • Choose a location for the Baby Unit that will provide the best view of your baby in his/her crib. • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit on a wall securely using the keyhole slots in the underside of the stand.
-
Page 10: Getting Started
2. Getting Started Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to a suitable electrical outlet. -
Page 11: Desktop Stand Of The Parent Unit
• Connect the small plug of the power adapter to the parent unit and the other end to the electrical outlet. Only use the enclosed adapter (5VDC/1000mA). • Press and hold the button to turn the Parent unit on, the Parent unit and Baby unit are automatically linked and ready to use. -
Page 12: Registration (Pairing)
Registration (Pairing) The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: Press the M button and the menu bar will pop up. -
Page 13: Using The Baby Monitor
3. Using the Baby Monitor Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. -
Page 14: Parent Unit Menu Options
4. Parent Unit Menu Options Volume Press the Left or Right button to adjust the volume level. icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 5, and level 0 is OFF.) Zoom Press the M button and the menu bar will pop up with highlighted. -
Page 15: Alarm
4.4.2 Audio Book (English only) Playback • Tap on M button then Scroll Left/Right to select option at the menu bar. • Scroll Up or Down to select then confirm with O button. • Press + UP button or - DOWN button to view the desired Audio Book. The book titles appear on the screen. -
Page 16: View A Camera
- DOWN button to select the desired Camera, and press the O button to start searching for a camera unit. Note: If a camera is currently paired with the Parent Unit, its camera location (with a * against it) cannot be selected for a new registration. Press and hold the PAIR button on the underside of the Baby Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen. -
Page 17: Scan Camera
Press the + UP button or - DOWN button to select del, and press the O button to confirm. Camera will pop up, press the + UP button or - DOWN button to select the desired Camera, and press the O button. -
Page 18: Power Saving Mode
Power Saving mode Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until V is highlighted. Press the + UP button or - DOWN button to select auto video off after 5 mins, 30 mins or 60 mins (if operating on batteries only). -
Page 19: Wi-Fi® Internet Viewing
5. Wi-Fi® Internet Viewing Minimum System Requirements Android™ System • Version 5.0 or above iPhone®/iPad® iOS • Version 9.0 or above High Speed (Wi-Fi®) Internet • At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site: http://www.speedtest.net) Getting started - Connecting Devices How does it work? Wi-Fi®... - Page 20 Status of LED Indication: Pair / Setup state: LED is Blue and Flashing. Unconnected state: LED is Red and Flashing. Connected state: LED is Blue and always on. Video streaming: LED is Blue and Flashing. Note: You can only setup via a compatible smartphone or tablet and not via a PC. User Account and Camera Setup on Compatible Devices What you need •...
- Page 21 5.4.4 Add the Camera to your account • Log in your Hubble Account by entering "User Name" and "Password" (fig. A3). • Tap on the screen of your device to add new Camera (fig. A4) Wi-Fi® Internet Viewing...
- Page 22 • To select your device for setting up by tapping Baby Monitoring (fig. A5). • Tap EASE44CONNECT to add the new camera (fig. A6) . • The following setup instructions will appear on the screen, select your Wi-Fi network and enter "Password" (fig. A7). •...
- Page 23 Press and hold the PAIR button at the side of Camera, you will hear a voice prompt "Ready for Pairing" then tap Continue (fig. A9) Tap Generate QR code on your device and hold the QR code 15 to 30 cm in front of Camera to get scanned till you will hear confirmation message "...
-
Page 24: Camera Functions
The Red LED will flash if the camera is not set up. (Note: To switch off the device, unplug the power supply.) • Run the Hubble for Motorola Monitors App on your smart device. Overview of the Features on Hubble App Event History •... - Page 25 Lullabies Tap to access the Melody menu and select one of the 10 pre-set melodies you wish to play on your Camera Unit. Tap to access the Soothing sounds/Audio books or Personal recordings. Talkback Tap to activate the function. Press the round button once to speak through the Camera Unit.
-
Page 26: Working With Pc/Notebook
7. Working with PC/Notebook • Go to http://www.hubbleconnected.com/motorola/login/ • Enter your User Name and Password and then click Login if you have already created an account. • Click on the Camera list paired in your account via Android™ device or iPhone ®... -
Page 27: Disposal Of The Device (Environment)
9. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 28: 1 . Help
11. Help Display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON. - Page 29 • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/ mobile telephone. Move the Baby Unit or Parent Unit 1.5 metre away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (Wi- Fi® routers), Bluetooth™...
- Page 30 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Account I am unable to login Please check your user name and even after registra- tion. password. Account I receive an error Please ensure that you have registered message saying: “Email with us.
- Page 31 Viewing When I am in “re- mote When you are accessing your Camera mode”, the video stops via a network different from your Camera home network (over after 5 minutes. How do I the internet) your video times view for longer? out after 5 minutes.
- Page 32 General What is the The LED indicates the following status: significance of the LED flashing Red: Your Camera is camera LED? booting up. After a voice prompt the camera is booted up and ready for pairing. LED Cycling Blue/Red: Your camera is in pairing mode.
- Page 33 Connec- tivity Even though I am Please check your wireless router Issues accessing my Camera settings. For example, for Buffalo brand from the same routers there is an option called Wi-Fi ® network, I still Wireless Isolation. Please disable this find my Camera is option.
- Page 34 App for Android™ – Open the Google Play Store and iOS devices? on your Android™ device. – Select Search – Type in “Hubble for Motorola Monitors” – The results will show the Hub- ble – Select to install it iOS Device: –...
- Page 35 Features How many users can If you are accessing in Local Mode, two access the Camera at users are supported, after two users all one time? streaming will go through the remote server. This allows for unlimited user access to a single Camera at one time. Connectivi- ty found interference...
-
Page 36: General Information
12. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 2M Pixels IR LED 8 pcs Operating Tem- F - 104 perature Power Adapter: Input: 100-240V AC, 50/60Hz, 300mA; Out-put: 5.0V DC, 1000mA Technical Specifications... - Page 37 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 4.3” diagonal TFT LCD Display Colors 16.7M color LCD Brightness Con- trol 5 steps Volume Control 8 steps Power Adapter: Input: 100-240V AC, 50/60Hz, 300mA; Out-put: 5.0V DC, 1000mA WARNING Use only with provided power supply. Battery (built-in) Lenovo (BL253) 3.8V, 2000mAh Lithium-Ion Polymer, re-...
- Page 38 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Apple logo and Safari are trademarks of Apple Inc., registered in the U.S.
