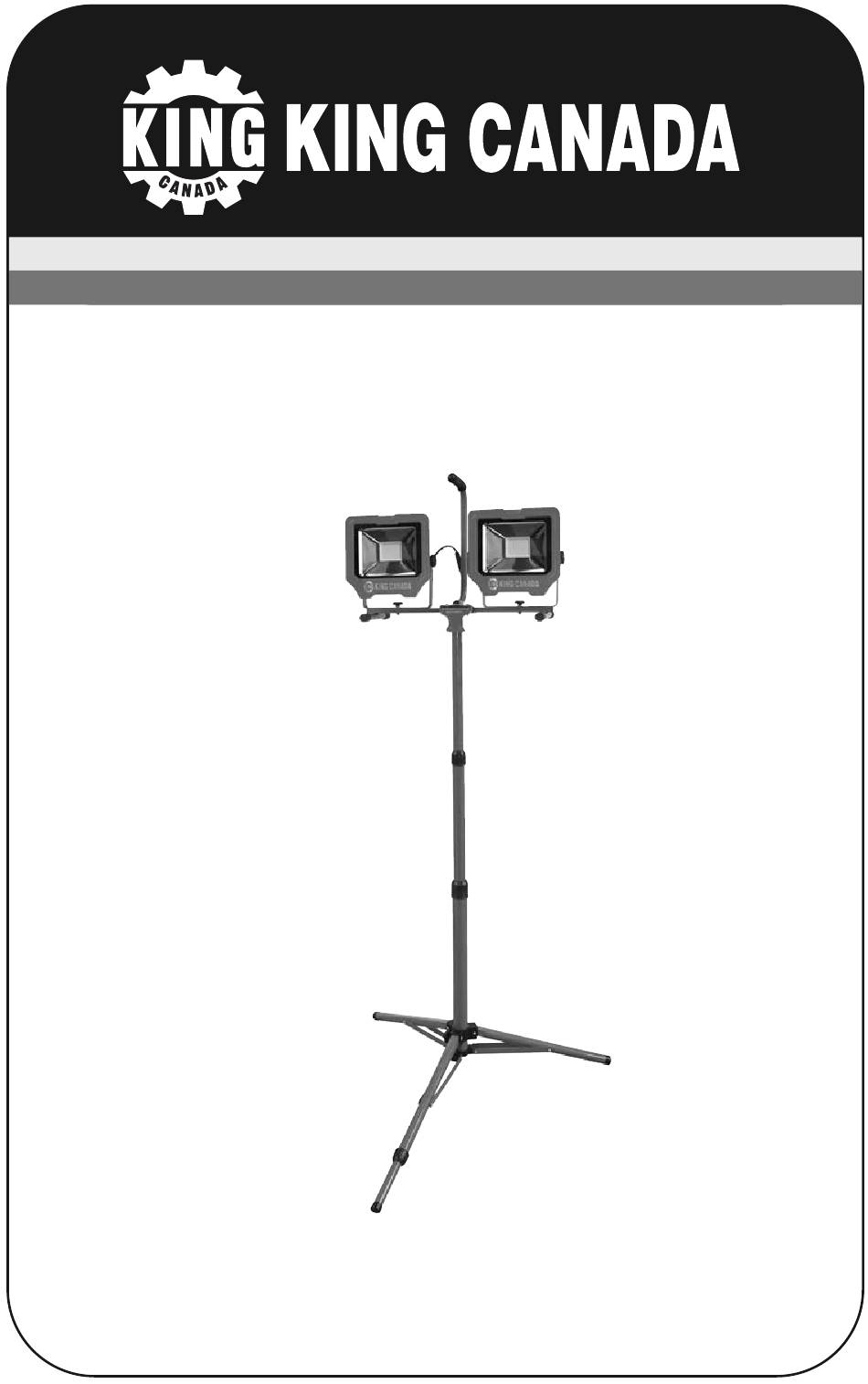

- Page 1 TWIN LED WORK LIGHT WITH TRIPOD MODEL: KC-4002LED-ST INSTRUCTION MANUAL COPYRIGHT © 2021 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Proof Of Purchase
Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized service center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your corded power tool. - Page 4 GENERAL & SPECIFIC SAFETY INSTRUCTIONS 3) Personal safety continued... f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. These can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION Technical Specifications Model ....................KC-4002LED-ST VoltageCycle/Phase ................120V, 60Hz, 1 phase Amperage ....................0.66A (2 x 0.33A) Lumens ..................8,000 (2 x 4,000 lumens) Wattage ....................72W (2 x 36W) LED life ......................+30,000 hours POWER SUPPLY WARNING: YOUR LED WORK LIGHT MUST BE PROPERLY GROUNDED OUTLET... - Page 6 GETTING TO KNOW YOUR TWIN LED WORK LIGHT Getting to know your Twin LED Work Light 1- Carry handle with foam 2- 8ft. power cord 3- Aluminum housing 4- 1 of 4 tilt lock knobs 5- 1 of 2 pivot lock knobs 6- Steel base 7- 1 of 3 tripod height/stability adjusting lock rings...
- Page 7 ASSEMBLY ASSEMBLY SETTING UP THE TRIPOD 1. Loosen the tripod locking knob (A) Fig.4. 2. Push down the leg connector (B) until the legs (C) are fully extended, then firmly tighten the locking knob (A). 3. Adjust the height of the tripod by loosening the twist collars (D) and raising the center poles (E) of the tripod.
-
Page 8: Operation And Maintenance
PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
