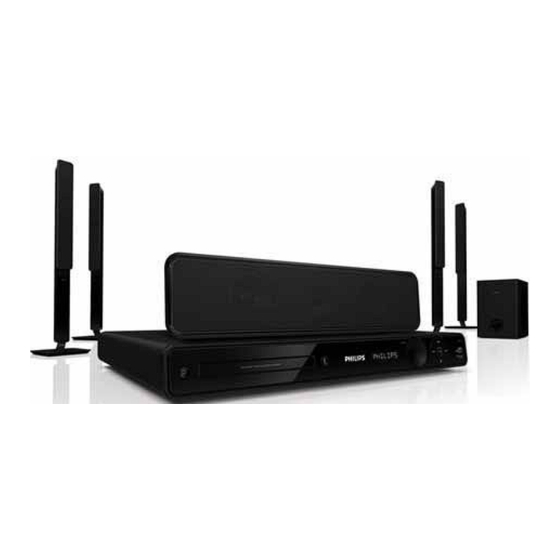

Philips HTS3578/51 User Manual

Philips dvd home theatre system hts3578
Hide thumbs Also See for HTS3578/51:
Table of Contents

Advertisement

Quick Links

Register your product and get support at
www.philips.com/welcome
HTS3578
UK
RU

Advertisement

Table of Contents
loading

Related Manuals for Philips HTS3578/51

Summary of Contents for Philips HTS3578/51

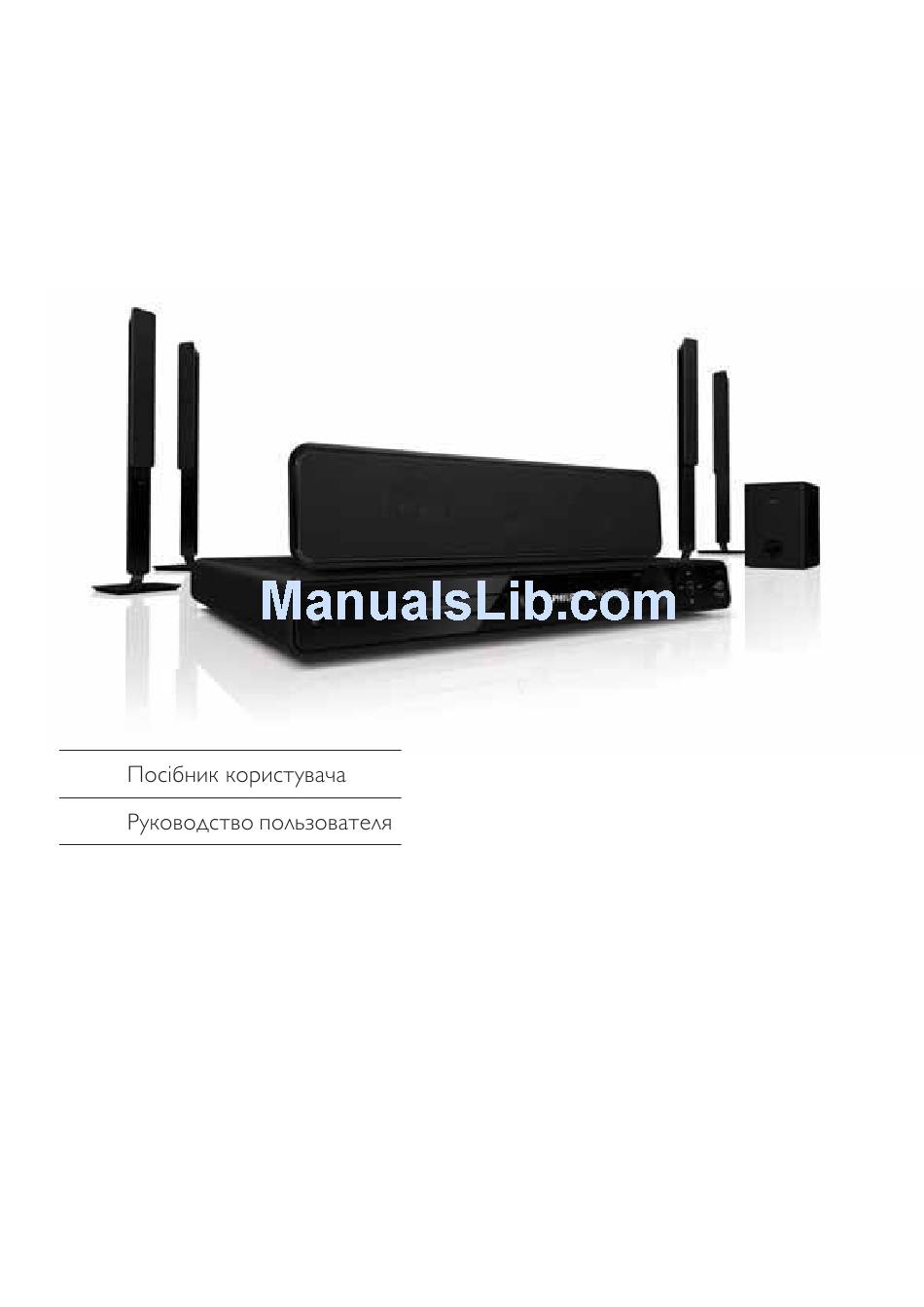

  • Page 1 Register your product and get support at www.philips.com/welcome HTS3578...

  • Page 3: Table Of Contents

    4 Get started Insert the remote control batteries Find the correct viewing channel Select menu display language Turn on Progressive Scan Change speaker settings Use Philips EasyLink Select a play source 5 Play Play a disc Play video Play music...

  • Page 4: Important

    1 Important Safety and important notice Warning • Risk of overheating! Never install the Home Theater System in a conÀ ned space. Always leave a space of at least 4 inches around the Home Theater System for ventilation. Ensure curtains or other objects never cover the ventilation slots on the Home Theater System.

  • Page 5: Trademark Notice

    Copyright notice This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision...
  • Page 6 Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. HDMI, and HDMI logo and High-DeÀ nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc.

  • Page 7: Your Home Theater System

    2 Your Home Theater System Congratulations on your purchase, and welcome to Philips! To fully beneÀ t from the support that Philips offers, register your product at www.philips.com/welcome. Feature highlights Video upscaling to 1080p Enjoy watching discs in the highest picture quality available for your HDTV.

  • Page 8: Product Overview

    Product overview Main unit ( Standby-On ) • Turns on the Home Theater System or switches to standby mode. b Disc compartment ( Open/Close ) • Opens or closes the disc compartment. d IR sensor • Detects signals from the remote control.

  • Page 9: Remote Control

    Remote Control ( Standby-On ) • Turns on the Home Theater System or switches to standby mode. • Press and hold to turn off the Home Theater System and all HDMI CEC compliant devices. ( Open/Close ) • Opens or closes the disc compartment.
  • Page 10 o Source buttons • AUDIO SOURCE : Selects an audio input source. • RADIO : Switches to FM band. • USB : Switches to the USB source. • DISC : Switches to the disc source. p OK • ConÀ rms an entry or selection. BACK •...

  • Page 11: Connect

    Different types of connectors may be used to connect this product to your TV, depending on availability and your needs. A comprehensive interactive guide to help you connect your product is available at www.connectivityguide. philips.com. Place the Home Theater System • Place the Home Theater System where it cannot be pushed, pulled over or knocked down.

  • Page 12: Connect Video Cables

    Note • If your device supports HDMI CEC, you can control compliant devices with a single remote control. (see ‘Get started’ > ‘Use Philips EasyLink’). • If the TV has a DVI connection only, connect via a HDMI/DVI adaptor. Connect an audio cable for sound output.
  • Page 13 Option 2: Connect to the component video jack VIDEO OUT Connect the component video cable (not supplied) to the Y Pb Pr jacks on this Home Theater System and the COMPONENT VIDEO input jacks on the • If a progressive scan TV is used, you may turn on the progressive scan mode.

  • Page 14: Connect Speaker Cables To Speakers

    Connect speaker cables to speakers Connect the speaker cables to the matching color jacks on the speakers (or speaker stands). Connect speaker to speaker stand Attach the speakers to the speaker stands and secure the position with screws. Connect speakers and subwoofer Connect the speakers and subwoofer to the matching jacks on the Home Theater...

  • Page 15: Connect Radio Antenna

    Connect radio antenna Connect the FM antenna to the FM75 jack on this Home Theater System (for some models, this cable is already connected). Extend the FM antenna and À x its ends to the wall. • For better FM stereo reception, connect to an external FM antenna.
  • Page 16 Connect audio from cable box/ recorder/game console You can choose to connect to analog or digital jack depending on the device capabilities. Connect to analog jacks AUX 2 AUDIO IN AUDIO OUT Connect the audio cables (not supplied) to the AUDIO IN-AUX2 jacks on the Home Theater System and the AUDIO output jacks on the device.
  • Page 17 Connect to optical jack OPTICAL DIGITAL OUT Connect an optical cable (not supplied) to the OPTICAL DIGITAL-IN jack on the Home Theater System and the OPTICAL/SPDIF output jack on the device. Note • To listen to the audio output from this connection, press AUDIO SOURCE repeatedly until ‘OPTI IN’...

  • Page 18: Connect Power Cord

    Connect power cord Warning • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the Home Theater System. Connect the power cord to the power outlet when all the required connections are done.

  • Page 19: Get Started

    4 Get started Insert the remote control batteries Slide the battery cover off the back of the remote control. Insert the 2 supplied batteries (AAA). Be sure the + and - ends of the batteries line up with the markings inside the case. Slide the cover back into position.

  • Page 20: Find The Correct Viewing Channel

    • Go to the lowest channel on your TV, then press the Channel Down button until you see the Philips screen. • Press SOURCE button repeatedly on the remote control of your TV.

  • Page 21: Turn On Progressive Scan

    Turn on Progressive Scan If the TV supports progressive scan output, you can connect this Home Theater System and the TV using component video connection. (see ‘Connect video cables’ > ‘Option 2: Connect to the component video jack’). Video Setup Turn on the TV and ensure that the TV progressive scan mode is deactivated (see the TV user manual).

  • Page 22: Change Speaker Settings

    Change speaker settings Ideally, the distance between listening position and all the speakers should be the same. If not, change the speaker settings based on their distance from the listening position to obtain the best possible surround sound. Audio Setup Press DISC .

  • Page 23: Use Philips Easylink

    Use Philips EasyLink Your Home Theater System supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control. Note • Philips does not guarantee 100% interoperability with all HDMI CEC devices.
  • Page 24 Map the audio inputs to the connected devices Note • Before you start, ensure that the audio output of the HDMI TV and other HDMI devices have been connected to the audio input jacks on this Home Theater System. General Setup Press DISC .

  • Page 25: Select A Play Source

    Select a play source On the main unit • Press SOURCE button repeatedly to select: DISC > USB > FM > AUX 1 > AUX 2 > COAX IN > OPTI IN > MP3 LINK > DISC ... On the remote control •...

  • Page 26: Play

    5 Play Play a disc Caution • Never place any objects other than discs into the disc compartment. • Never touch the disc optical lens inside the disc compartment. Press to open the disc compartment. Insert a disc with its label facing up. •...
  • Page 27 Change video play Play a title. Use the remote control to change the video play. Button Action AUDIO Selects an audio language or SYNC channel on a disc. SUBTITLE Selects the subtitle language on a disc. REPEAT Selects or turns off repeat or shufÁ...

  • Page 28: Sync Audio Output With Video Play

    Access VCD menu or preview menu The PBC (Playback Control) for VCD is activated by default in the factory. When you load in a VCD, the contents menu is displayed. Press to select a play option, then press OK to start play. •...
  • Page 29 Repeat play a specifi c section During playback, press » The disc status menu is displayed. Select [Repeat] in the menu, then press Move to [ A-B] in the menu, then press OK to set the starting point. Press OK again to set the ending point. »...

  • Page 30: Play Music

    Play music Control audio track play Play a track. Use the remote control to control the track. Button Action Starts, pauses or resumes disc play. Stops disc play. Skips to the next track. Skips to the beginning of the current track. Press twice to jump to the previous track.

  • Page 31: Play Photo

    Play photo Play photo as slideshow This Home Theater System can play JPEG photos (À les with .jpeg or .jpg extensions). Insert a disc or USB that contains the JPEG photos. Press DISC or USB . » Slideshow begins (for Kodak disc) or a contents menu (for JPEG disc) is displayed.

  • Page 32: Play From Usb Device

    Play musical slideshow Play MP3/WMA music À les and JPEG photo À les simultaneously to create musical slideshow. The MP3/WMA and JPEG À les must be stored on the same disc or USB device. Play MP3/WMA music. Navigate to the photo folder/album and press OK to start slideshow play.

  • Page 33: Play From Portable Media Player

    Play from portable media player Simply connect your portable media player (e.g. MP3 player) to this Home Theater System to enjoy superb sound quality from your music collections. Connect a 3.5mm stereo audio cable (not supplied) from the MP3 LINK jack on this Home Theater System to the ‘headphone’...

  • Page 34: Listen To Radio

    Listen to radio Press RADIO . Use the remote control to control the radio. Button Action Selects a preset radio station. Tunes the radio frequency up or down. Press and hold this button to erase the current radio station from the preset list. The preset number for other radio stations remain unchanged.

  • Page 35: Advanced Features

    6 Advanced features Create MP3 audio fi les You can convert audio CDs into MP3 audio À les with this Home Theater System. The created MP3 audio À les are saved in your USB device. Option Description [Speed] Selects the write-to-À le speed. If [Normal] speed is selected, music play can be heard while creating the MP3 À...

  • Page 36: Adjust Sound

    7 Adjust sound Control the volume Press VOL +/- to increase or decrease the volume. • To mute, press • To restore the volume, press or press VOL + . Select surround sound Press SURR repeatedly to select the best surround output that’s available on the disc.

  • Page 37: Adjust Microphone Volume Level

    Adjust microphone volume level Connect a microphone (not supplied) to MIC jack on this Home Theater System. Turn on the microphone output. (see ‘Karaoke settings’.) Press MIC ( VOL +/- ) to adjust the microphone volume. » ‘MIC XX’ is displayed. •...

  • Page 38: Adjust Settings

    8 Adjust settings You can customize various kinds of settings as you prefer. Refer to the following instructions to navigate through the setup menus. Symbol Options [General Setup] [Audio Setup] [Video Setup] [Preferences] Note • If the setup option is grayed out, it means the setting cannot be changed at the current state.
  • Page 39 You must turn on the HDMI CEC operations on the TV/devices before you can enjoy the EasyLink controls. See the TV/devices manual for details. • Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. [Disc Lock] Sets play restriction for a speciÀ c discs.

  • Page 40: Audio Setup

    [Sleep Timer] Switches to standby automatically after the preset time. • [15 mins] , [30 mins] , [45 mins] , [60 mins] – Selects the count down time before the Home Theater System switches to standby. • [Off] – Disables sleep timer mode. [DivX(R) VOD Code] Displays the DivX®...
  • Page 41 [Speakers Delay] Sets the delay time for the center and rear speakers if they are placed closer to the listening position, so that the sound output from all speakers reach the listening position at the same time. 1) To start, press OK . 2) Select a speaker in the menu, then press to set the delay time.

  • Page 42: Video Setup

    Video setup Video Setup Press SETUP . » [General Setup] menu is displayed. Press to select [Video Setup] , then press . Select an option, then press OK Select a setting, then press OK . • To return to the previous menu, press BACK .
  • Page 43 [HDMI Setup] Selects the HDMI video setting when you connect this Home Theater System and the TV with a HDMI cable. • [Wide Screen Format] – DeÀ nes the wide screen format for disc play. Option Description [Superwide] Center position of the screen is stretched less than the side.

  • Page 44: Preferences

    Preferences Note • Stop disc play before you can access to [Preferences] . Preferences Press SETUP . » [General Setup] menu is displayed. Press to select [Preferences] , then press . Select an option, then press OK . Select a setting, then press OK . •...
  • Page 45 Theater System. • This information is required when you want to À nd out if a newest software version is available at the Philips website that you may download and install on this Home Theater System. [Default] Resets all the settings of this Home Theater System to factory default, except for [Disc Lock] , [Password] and [Parental] settings.

  • Page 46: Additional Information

    OK . Write down the version number, then press SETUP to exit the menu. Go to www.philips.com/support to check the latest software version available for this Home Theater System. If the latest software version is higher than the software version of this Home Theater System, download it and store onto a CD-R or USB Á...

  • Page 47: Specifi Cations

    10 Specifications Note • SpeciÀ cation and design are subject to change without notice Playback media • DVD-Video, DVD+R/+RW, DVD-R/- RW, DVD+R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX-CD, USB Á ash drive Amplifi er • Total output power: •...
  • Page 48 Subwoofer • Impedance: 3 ohm • Speaker drivers: 203 mm (8”) woofer • Frequency response: 40 Hz ~ 150 Hz • Dimensions (WxHxD): 242 x 352 x 360 (mm) • Weight: 5.76 Kg Laser specifi cation • Type: Semiconductor laser GaAIAs (CD) •...

  • Page 49: Troubleshooting

    Home Theater System and get support at www.philips.com/ welcome. If you contact Philips, you will be asked for the model and serial number of your Home Theater System. The model number and serial number are on the back or bottom of your Home Theater System.
  • Page 50 Sound No sound. • Ensure that the audio cables are connected and press the correct input source (for example, AUDIO SOURCE , USB ) to select the device you want to play. No sound on HDMI connection. • Sound cannot transmit through HDMI connection if the connected device is non-HDCP compliant or only DVI- compatible.

  • Page 51: Glossary

    12 Glossary Aspect ratio Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-deÀ nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.
  • Page 52 A À le format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD. MPEG Motion Picture Experts Group.
  • Page 53 Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese...
