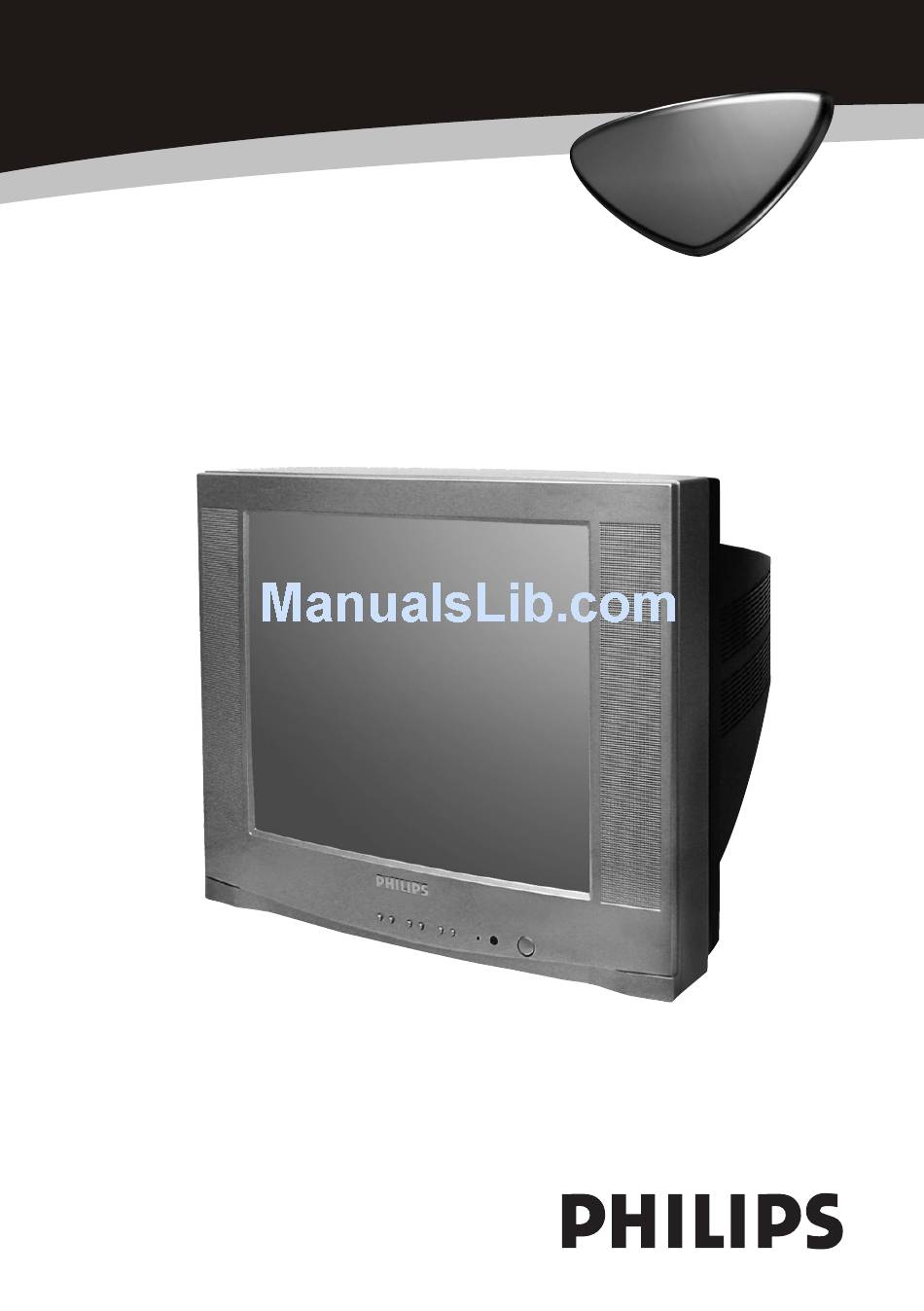

- Page 1 Colour television 14PT2110 14PT2110 21PT2110 21PT2110 Operating Instructions...
-
Page 2: Table Of Contents
Introduction Safety Information/Useful Tips ... 3 Before Calling Service ... 4 Basic Installation/Function Hooking Up Your TV (Basic Connection) ... 5 Use/Care of Remote Control ... 5 Connecting the Audio/Video Sockets (Playback) ... 6 Functions of Remote Control ... 7 Functions of TV Controls ... -
Page 3: Safety Information/Useful Tips
AFETY Safety Information • Disconnect mains plug when: _ the red light below the TV screen is flashing continuously. _ a bright white line is displayed across the screen. _ cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois leather or soft cloth. -
Page 4: Before Calling Service
Below is a list of frequently occurred symptoms. Before you call for service, make these simple checks. Some of these symptoms can easily be rectified if you know what to do. Symptom Colour patch (unevenness) No power No picture Good picture but no sound Good sound but poor colour or no picture... -
Page 5: Hooking Up Your Tv (Basic Connection)
OOKING UP Antenna Connection • Connect the aerial plug to the antenna socket • Insert the mains plug into the wall socket. Mains Connection • For correct mains voltage, refer to type sticker at the • Consult your dealer if mains supply is different. Switch on the set •... -
Page 6: Connecting The Audio/Video Sockets (Playback)
ONNECTING THE SIDE AV You can view the playback of VCR/VCD/DVD tapes by using the AUDIO and VIDEO INPUT sockets on the side or rear of the TV. Connect the VIDEO and AUDIO IN sockets on the side or rear of the TV to the VIDEO and AUDIO OUT sockets on the audio/video equipment. -
Page 7: Functions Of Remote Control
UNCTION OF STANDBY SLEEP TV/AV GAME NOTES EXPAND CAPS A/CH SND. SYS. Introduction of key function: This TV features with a full-function remote control handset. For a more compact remote unit design, some of the keys are multiple with more than one function. The following text describes the function of keys on remote control unit. - Page 8 UNCTION OF Surf Button To browse the preset favorite channels. (This button will not function if you have not set any favorite channel.) Menu/Insert Button Display the main menu. Also exits menu from screen. To insert or overwrite a letter, digit or s y m b o l w h e n y o u e d i t t h e i n f o r m a t i o n previously stored in notebook.
-
Page 9: Functions Of Tv Controls
Main Power button Remote Sensor Standby light indicator Channel down/up button Volume down/up button Menu button TV/AV button TV C UNCTION OF Switch mains power on or off Acts as a sensor for activating the controls of the TV when remote control handset is aimed at it. Indicate red light when standby mode is activated. -
Page 10: Selecting The Main Menu
Operating instructions generally explains the operation of the TV set using the buttons on the remote control unless otherwise stated. Please read the following instructions carefully and follow the steps as shown to familiarise yourself with the installations and all features available in your set. Press the Menu button and Volume +/- buttons to select the main menu PICTURE, FEATURE, TIMER and PRESET. -
Page 11: Automatic Tuning Of Channels
UTOMATIC Automatic tuning of channels allows you to store each programme automatically. Press button Step MENU Manual tuning allows you to select your preferred channel number for every available programme. Press button Step MENU UNING OF Press once to enter PICTURE main menu. - Page 12 ANUAL Step Press button UNING OF Press button repeatedly until PRESET menu is selected. Press button repeatedly until Channel is selected. Press button repeatedly to select the channel no., e.g. 31. Select Band. Select the frequency band among VHFL/VHFH/UHF. Select Manual Store. Press button to manual tune upward.
-
Page 13: Fine Tuning Of Channels
Notes: If the searched channel is not as your desired, you can simply restart the searching upward or downward by pressing the button. To stop manual searching, press the downward. The menu will time out and disappear from the screen when you finish, or you can press the MENU button to clear the menu from the screen. -
Page 14: Channel Swap
This feature allows you to rearrange the channel numbers in which the channels are stored. Press button Step MENU MENU HANNEL Press once to enter PICTURE main menu. Press button repeatedly until FEATURE menu is selected. Press button repeatedly until CH Swap is selected. -
Page 15: Channel Skip
This feature allows you to remove fault channels or restore skipped channels from the channel memory. Press button Step MENU MENU HANNEL Press once to enter PICTURE main menu. Press button repeatedly until PRESET menu is selected. Select Channel. Select the channel no. you want to remove or restore, e.g. -
Page 16: Favorite Channel Setting
This feature allows you to store six favorite channels in memory and preview these channels by pressing SURF button. Press button Step MENU MENU Notes: You can delete the undesired channel no. by pressing the DELETE button when this channel is highlighted. -
Page 17: Selecting The Colour System
ELECTING THE This feature allows you to select your desired Color system. If Auto is selected, the respective color system will be automatically selected according to the transmission system. Note: Select your desired color system manually if reception is poor at Auto mode. Press button Step MENU... -
Page 18: Adjusting The Tv Picture
This picture menu allows you to make adjustments to the picture. Press button Step MENU MENU Picture menu items Contrast Bright. Color Hue (for NTSC only, this item is not selectable for other signal) Sharpness Color Temp TV P DJUSTING THE Press once to enter PICTURE main menu. -
Page 19: Smart Picture Control
Whether you are watching a movie or video game, your TV has video control settings matched to your current program source or content. The Smart Picture feature quickly resets your TV's video controls of program for a number of different types of programs and viewing conditions you may have in your home. -
Page 20: Timer Function
Timer function is provided by the microcomputer of TV set. Once it is set, the Start/Stop time and time displaying functions can start functioning. The TV set will keep the correct time as long as the main power is on, even if the TV has been turned off into standby mode. Press button Step MENU... - Page 21 Step Press button MENU Notes: Off: The Start/Stop Timer is set to off and will not operate. Once: The Start/Stop Timer is set to turn on/off the TV at that time only one time. Daily The Start/Stop Timer is set to turn on/off the TV at that time everyday until otherwise adjusted. Channel This is the channel the TV will display at Start Time.
-
Page 22: Game Function
This TV is built-in a game for enjoying in your leisure time. How to enter the Game: Short-cut operation: Step Press button GAME Menu operation: Press button Step MENU UNCTION Press button to enter the Game. Press once to enter PICTURE main menu. - Page 23 How to play the Game: Press button Step Notes: Playing the game for the first time, only level 1 can be selected and played. Only when you win the game of one level, you can enter the next higher level, and pressing the button can select from 1 to the level next higher than that you have passed.
-
Page 24: Calendar Function
This feature allows you to look up days and years very conveniently. How to enter the Calendar: Short-cut operation: Step Press button CALENDAR Menu operation: Press button Step MENU ALENDAR UNCTION Press button to enter the Calendar. Press once to enter PICTURE main menu. -
Page 25: Notebook Function
How to look up days and years: Step Press button This feature allows you to store information such as phone number, leave message and etc, and can be used as a reminder. How to input and correct information in notebook: Example: if you want to input the content: aBc@21cn.com Press button Step... - Page 26 Step Press button CAPS Notes: After finishing information writing, you can use DELETE button on the remote control to delete the unwanted or incorrect word. And press INSERT button on the remote control to select INS or OVER mode on the screen, then insert word into the stored information or overwrite it. OTEBOOK UNCTION Press button to turn off the...
- Page 27 How to utilize notebook function: If you want to display the message when the TV is turned on: Press button Step If you want to display the message at a specified time: Step Press button Notes: The time setting in notebook must be based on the time set in Time of TIMER menu. The time set in notebook must be later than the time set in Time.
-
Page 28: Specification
Picture tube screen size (diagonal) Audio Output: speaker Set Dimension Width Depth Height Net weight of Set (approximate) TV system Note: For Operating Voltage, Frequency, Power Consumption, refer to the type number at the rear of the set. Product is subjected to change without notice. PECIFICATION 14PT2110 370mm...
