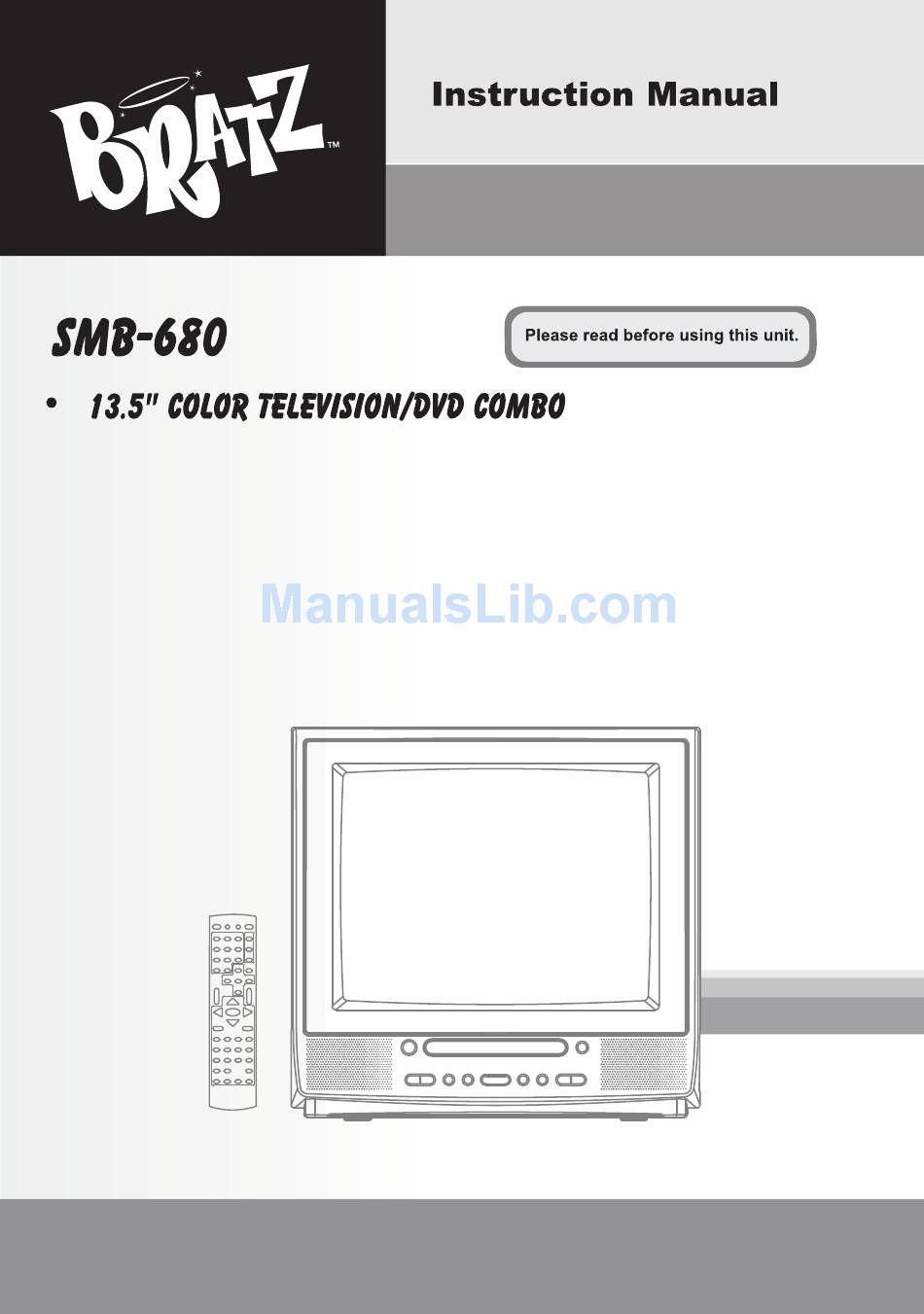

Bratz SMB-680 Instruction Manual

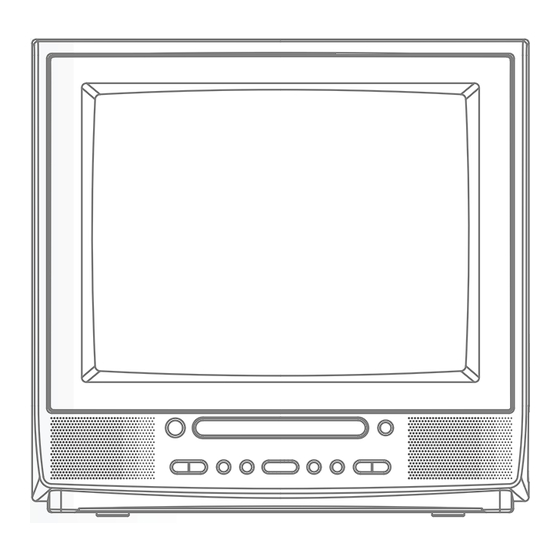

Bratz 13.5" color television/dvd combo instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Bratz SMB-680

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The graphic symbols on the back cover of the set mean the following: The lightning flash with arrowhead sym bol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 4: Laser Safety

    SAFETY PRECAUTIONS CAUTION Never tamper with any components inside your set, or any other adjustment controls not mentioned in this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is a highly vacuum. If broken, glass fragments will be violently expelled. Scratching, Chipping or undue pressure is dangerous and should be avoided.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS 1. Speaker 2. Power Button 3. Channel Buttons 4. Menu Button 5. TV/AV/DVD Button 6. DVD Door 7. Remote Sensor DVD Stop Button DVD Play Button 10. Volume -/+ Buttons 11. DVD Open/Close Button 12. Side Audio (R) Input (AV 2) 13.
  • Page 6 LOCATION OF CONTROLS BATTERY INSTALLATION • Insert two pcs "AAA" Alkaline "LR03" batteries as illustrated and replace the battery cover. • Batteries included. CAUTION • Do not attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the fire. •...

  • Page 7: Operating The Television

    OPERATING THE TELEVISION Connect your TV aerial to the aerial input socket located on the back of the TV. Push the Main Power Switch, Power Indicator will be illuminated. After a few seconds the TV screen will light up and will show interference on the screen. The TV will require tuning into the available TV stations in your area.

  • Page 8: Set Up Language

    C. SYSTEM 1. Press the Navigation change the desired colour system PAL, NTSC, AUTO. S SYSTEM 1. This unit is the single sound system, it is fixed cannot be adjust. Notes: 1. If ghost / noisy stations have been stored when using the AUTO SEARCH method, these can be removed from the channel list by entering the SKIP Mode shown in the TUNE menu.
  • Page 9 CHANNEL SELECT AND VOLUME CONTROL 1) Press CHANNEL Press CHANNEL." ", the programme no. will appear on the top right corner and change from a higher to lower number. 2) Press VOLUME button to adjust sound level. TV/AV/DVD Mode Button •...

  • Page 10: Remote Control Operation

    4. REMOTE CONTROL OPERATION CHANNEL Up and Down buttons Press the CHANNEL 0~9 Numberic Button To select a TV station using A buttons 0~9. For example: Press number “9” button to select PROGRAMME “9”. Two digit Programme Number For example:selecting PROGRAMME “12” 1.

  • Page 11: Dvd Player Operation

    DVD PLAYER OPERATION Basic Operation 1. Press “TV/AV/DVD” button on the unit or press the DVD MODE direct key on the remote handset to turn ON DVD. 2. Press “OPEN / CLOSE (EJECT)” button to load disc in disc tray. 3.
  • Page 12 There are 5 OSD languages embedded in the DVD Player : English, French, German, Italian, Spanish. 1. Press the SETUP button on the remote controller to enter the setup menu GENERAL SETUP PAGE. 2. Go to the OSD LANG option and use the Navigation Arrows to do the selection. 3.
  • Page 13 Slow The Slow Forward is applicable for DVD. There are 4 steps of slow motion speed, 1/2, 1/4, 1/8, 1/16. Successive key presses will decrement the playback speed. Note : Press Play Key to switch back to normal playback speed. Repeat Mode This function is applicable for DVD and CD audio but with different effects.
  • Page 14 Display (Remain Time) This function is applicable for DVD only. It will display the timing information of the playback on the screen. • For DVD playback, subsequent key press on the DISPLAY Button will show the Title Elapsed Time, Title Remain Time, Chapter Elapsed Time and Chapter Remain Time one by one.
  • Page 15 Program M ode This function is applicable for DVD and CD audio. User can assign the playback sequence according to his/her preference. For CD audio, user can assign the track sequence while for DVD disc, user can assign both the Title and Chapter sequence. 1.

  • Page 16: Specifications

    SPECIFICATIONS TV SECTION Receiving Channels Tuner Type DVD SECTION Laser Wave length Laser power Signal System Digital audio output Headphone GENERAL SECTION AC Power Input AC Power Consumption Speaker Audio Output Dimensions Net Weight Design and specifications are subject to change without notice. CH 2 - 4 CH 5 - 12 CH 21- 69...

  • Page 17: Disc Maintenance

    DISC MAINTENANCE Handling Discs: - Hold the disc by the edges so the surface will not be soiled with finger prints. (Fig. A) - Do not scratch the disc. Do not write on the label side with a pen. - Be careful not to drop or bend the disc. - Do not place more than 1 disk in the tray.
