Panasonic WV-Q204/1S Instructions

Rack mount bracket

Download this manual

Instructions

Before attempting to mount this product,

please read these instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

These Rack Mount Brackets are used for mounting such as the WJ-GXE500, etc.

WV-Q204/1S can mount the unit on the rack.

WV-Q204/2S can mount side by side up to two or three units on the rack.

Precautions

The installation described below should be made by qualified service personnel or system installers.

Important: Recommended tightening torque is M3: 0.78 N·m {8 kgf·cm}.

Preparations

q Remove the four rubber feet from the bottom of the unit.

w Remove four screws from the rear of the unit.

(Only for WV-Q204/2S)

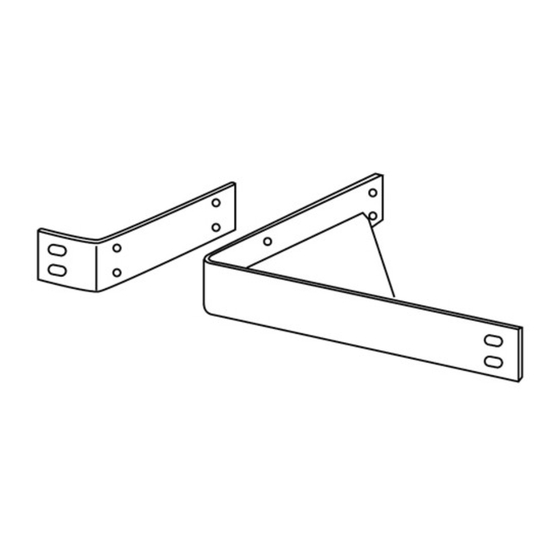

Rack Mount Bracket

WV-Q204/1S

Model No.

WV-Q204/2S

Rubber feet

Page 1 The model number is abbreviated in some descriptions in this manual. These Rack Mount Brackets are used for mounting such as the WJ-GXE500, etc. WV-Q204/1S can mount the unit on the rack. WV-Q204/2S can mount side by side up to two or three units on the rack.
Page 2 Installation ■ Installing a unit using the WV-Q204/1S q Install the rack mount brackets on both sides of the unit. Bracket mounting Using the bracket mounting screws (6 pcs.) for the rack screws mount brackets, fix them firmly. • Rack mount bracket (Large) x 1 •...
Page 3 (localy procured) if the rack (localy procured) is subject to vibration. Standard accessories WV-Q204/1S: Mount Screw WV-Q204/2S: Mount Screw Bracket mounting (M3 x 8) ......8 pcs. Bracket mounting (M3 x 8) ......8 pcs. Bracket mounting (flat head) (M3 x 6) ..16 pcs.
Page 4 Fukuoka, Japan 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada 1-877-495-0580 Authorised Representative in EU: https://www.panasonic.com/ca/ Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany © Panasonic i-PRO Sensing Solutions Co., Ltd. 2019 Ns0407-8109 3TU001717JZA Printed in China...
