Stanton S.550 User Manual

Professional dual cd player
Hide thumbs Also See for S.550:
Table of Contents

Advertisement

Quick Links

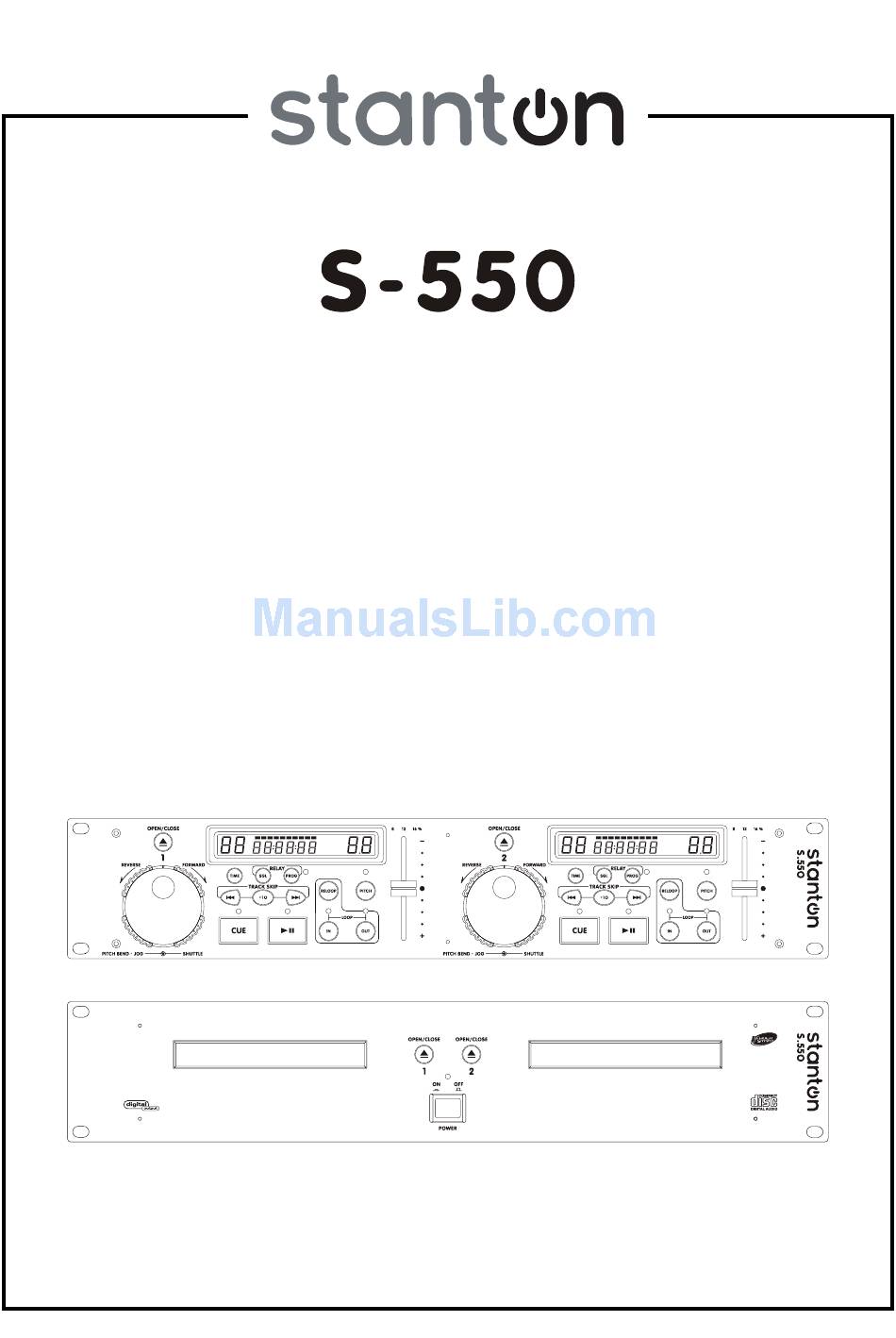

USER MANUAL
REMAIN
REMAIN
CONTINU
CONTINU
TRACK
M
S
F
TRACK
M
S
F
PROFESSIONAL DUAL CD PLAYER

Advertisement

Table of Contents
loading

Related Manuals for Stanton S.550

Summary of Contents for Stanton S.550

  • Page 1 USER MANUAL REMAIN REMAIN CONTINU CONTINU TRACK TRACK PROFESSIONAL DUAL CD PLAYER...

  • Page 2: Important To Safety

    IMPORTANT TO SAFETY IMPORTANT TO SAFETY WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: 1. Handle the power supply cord carefully Do not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read before this product is operated. 2. Retain Instructions － The safety and operating instructions should be retained for future reference. 3. Heed Warnings － All warnings on the appliance and in the operating instructions should be adhered to.

  • Page 4: Note On Use

    NOTE ON USE Allow for sufficient heat dispersion when installed on a rack. Handle the power cord carefully. Hold the plug when unplugging the cord. Keep the set free from moisture, water, and dust. Unplug the power cord when not using the set for long periods of time. Do not obstruct the ventilation holes.
  • Page 5 MAIN FEATURES CONTROL UNIT TRACK 12 13 SHUTTLE OPEN/CLOSE TIME (Time Button) LCD (Liquid Crystal Display) SGL (Single Button) PROG. PROGRAM Indicator RELOOP (Reloop button) PITCH (Pitch Indicator) (10) PITCH SLIDER (11) JOG (12) B.SKIP TRACK REMAIN CONTINU 15 16 (13) CUE Indicator (14) CUE (Cue Button) (15) +10...

  • Page 6: Names And Functions

    PREPARATIONS 1. Checking the Contents Check that the carton contains the following items: 1) Main unit 2) Control unit 3) Operating instructions (this booklet) 4) Pair of RCA pin cord. 5) Control cords (1 meter) 2. Installing the Unit Mount the unit onto your console or rack with 19" EIA rack rails. CAUTION: The player will work normally when the main unit is mounted with the front panel at within 15 degrees of...

  • Page 7: Control Unit

    NAMES AND FUNCTIONS Control Unit (1) SHUTTLE (Shuttle Dial) Use the dial to select the scanning direction and speed. The disc is scanned in the forward direction when the shuttle dial is turned clockwise from the neutral position, in the reverse direction when the shuttle dial in turned counterclockwise.

  • Page 8: Loading Discs

    OPERATIONS 1. Opening and Closing the Disc Holder Turn the unit power on. Press the OPEN/CLOSE button to open the disc holder. OPEN/CLOSE buttons are provided on both the main unit and control unit. The disc holder cannot be opened during playback to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally.

  • Page 9: Frame Search

    OPERATIONS 6. Pausing ˙ Press the PLAY/PAUSE button to switch the play and pause. ˙ The play indicator flashes when the pause mode is set. ˙ Figure 6 show the relationship between the play and pause. The player has completed the cue or pause operation and is waiting for the play start command.

  • Page 10: Time Display

    OPERATIONS 10. Time display Press TIME button to select time display mode: TIME 11. Matching the Beats Per Minute (BPM There are two tools available for matching the BPM of the two CDs: Use the pitch slider to adjust the BPM satirically. Turn the JOG dial to change the BPM temporarily.

  • Page 11: Before Switching Off The Power

    OPERATIONS 15. Relay-Play In the Relay-operation, the device automatically switches to the other player after the current track is played. In this way, you have the possibility to automate the play features between the two CDs. As soon as the current track of CD1 is finished, the player automatically starts CD2.

  • Page 12: Specifications

    SPECIFICATIONS GENERAL Dimensions: Main unit: Control unit: Weight: Player unit: Control unit: Power supply: Dual Voltage: AC 115/230V, 50/60Hz Single Voltage: AC 100V, 50Hz (For Japan) AC 110V, 60Hz (For Taiwan) AC 120V, 60Hz (For U.S.A.,Canada) AC 127V, 60Hz (For Mexico) AC 220V, 50Hz (For United Arab Emirates,Chile,Aegentina) AC 220V, 60Hz (For Philippines) AC 230V, 50Hz (For Europe,U.K.,New Zealand,South Africa,Singapore,Israel)
  • Page 13 Any returns to a non-authorized dealer or to an authorized Stanton dealer not in the same country as the merchandise was intended to be sold or as set forth above will void this warranty.
  • Page 14 c u t a l o n g d o t t e d l i n e...
  • Page 15 Stanton Magnetics, Inc. 3000 SW 42nd Street Hollywood, FL 33312 U.S.A. PLACE STAMP HERE...
