*使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要。
K
o
l h
r e
i K
KOHLER CHINA INVESTMENT CO., LTD

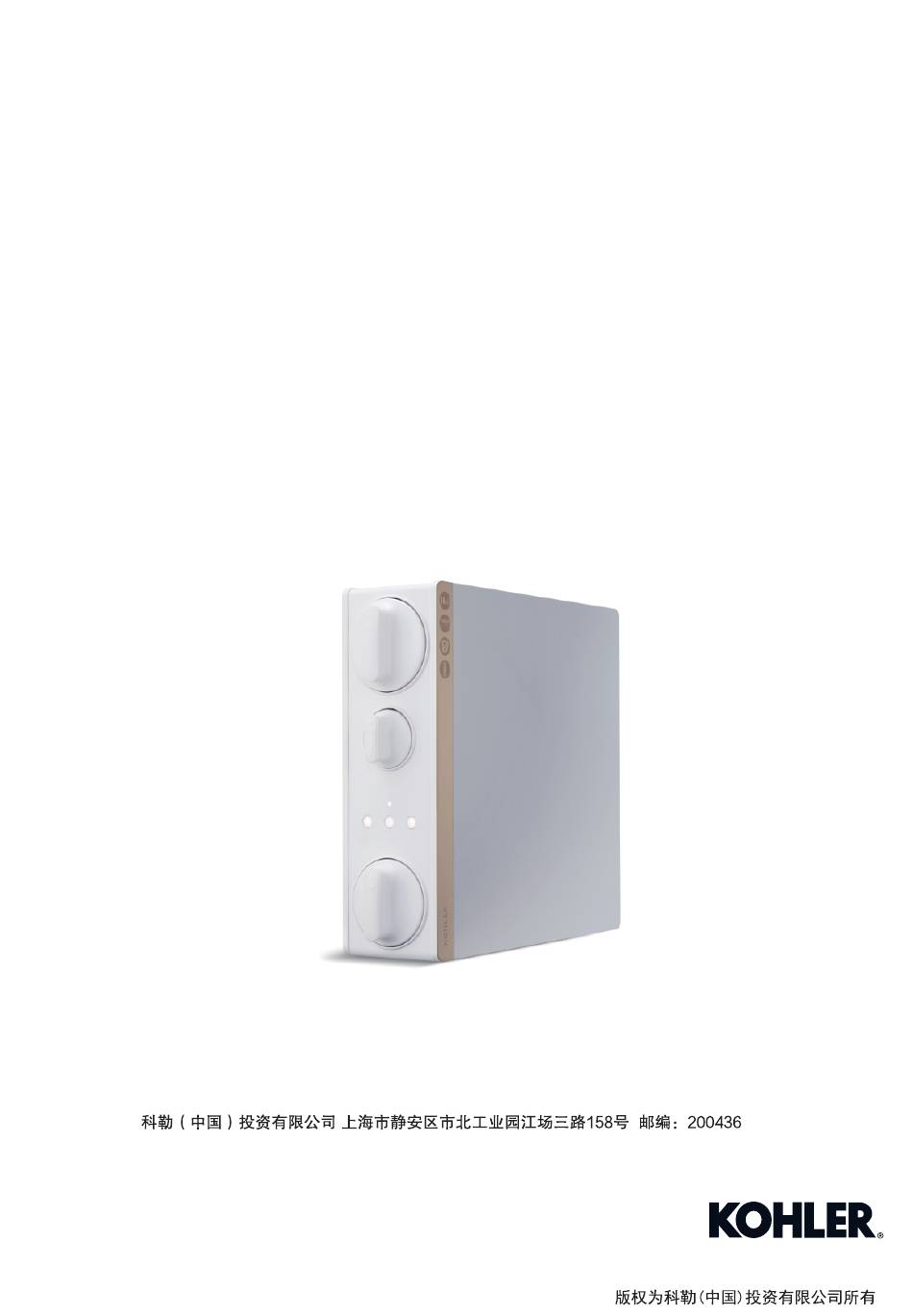

* Image is for reference only
*
照片仅供参考，以实物为准
1406034-T01-D
Installation Guide
产品安装使用说明书
c t
h
e
n
W
t a
r e
科勒厨房净饮机贝芙系列
K-30843T-KPT40-01R
K-30843T-KPP40-01R
K-30843T-KPQ40-C10
JING'AN DISTRICT, SHANGHAI, PRC
i F
r t l
t a
o i
n
S
y
s
NO.158, JIANG CHANG SAN ROAD,
POST CODE: 200436
Copyright Kohler China Investment Co., Ltd.
©
e t
m
B
e
v
l e
S
r e
©
e i
s
Advertisement
Related Manuals for Kohler Bevel Series
Summary of Contents for Kohler Bevel Series
- Page 1 科勒厨房净饮机贝芙系列 K-30843T-KPT40-01R K-30843T-KPP40-01R K-30843T-KPQ40-C10 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 * Image is for reference only 照片仅供参考，以实物为准 Copyright Kohler China Investment Co., Ltd. © 1406034-T01-D ©...
-
Page 5: Performance Data Sheet
PERFORMANCE DATA SHEET 30843T-KPT40-01R 30843T-KPP40-01R 30843T-KPQ40-C10 Kitchen Water Filtration System BEVEL series Description 科勒厨房净饮机贝芙系列 Name Kohler Reverse Osmosis Purifier RO400-T Model RO400-P RO400-Q Production Rate 1.05L/min Product Function 此反渗透系统以复合滤芯、反渗透滤芯、压缩活性炭滤芯为净化单元，对市政自来水 中的浊度、有机物、可溶性重金属及相关微生物进行去除，帮助进一步提高饮用水水质。 产品功能 Inlet Pressure/Operation Temperature 0.1~0.4MPa / 0.2~0.6MPa / 5~38℃ MOH Certificated System Capacity 4000L Inlet Water 适用范围... - Page 6 PERFORMANCE DATA SHEET Key Components Specification Key Component Unit Name RO400-T/P/Q Polypropylene Filter Housing 93mm 360mm PP Cotton Filter Aperture 孔径：10μm Composite ID46 / OD65mm x 263mm Activated Carbon Filter Compressed Activated Carbon Aperture 孔径：5μm φ43.5mm x 263mm (1套) Polypropylene Cap 69 mm 32.5mm 77.2mm 39.5mm 74mm 254mm...
-
Page 7: Getting Started
GETTING STARTED Package list Main Body Assembly Composite Activated Carbon Filter High Efficacy Reverse Osmosis Filter Odor-Free Carbon Filter Installation Guide Service Parts Page Compliance Certification Power Adaper Connect Fittings Drain plug 3/8" Tubing Clip Water Supply Drain Saddle 3/8" 1/4"... - Page 8 Faucet Installation Manual for tools and detailed installation steps of water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet dimension is 1/4" adapter). 1. Make sure cold water supply line under the sink is turned off;...
- Page 9 Step 2: Making connections Refer to Figure 4, insert the 3/8" Plastic tubing into the filter inlet port and the water supply adapter, insert the 1/4" Plastic tubing into the filter outlet port and filtration ( 4) faucet; then insert the 1/4" Plastic tubing into the drain port of RO system and the drain line under the sink.
- Page 10 Step 3: Installing Filter Cartridge & Replacing Filter Cartridges Remove and discard the dustproof cap (sanitary protective cap) from the cartridge; Push the filter cartridge into the filter base align the hollow icon of the cartridge with the hollow icon on the filter base, ( 9) then turn cartridge clockwise until the hollow icon of the cartridge were aligned the color filled icon on the filter...
- Page 11 CAUTION! If the power cord from the transformer to the unit looks or becomes damaged, the cord and transformer should be replaced by a Kohler Service Agent or similarly qualified person in order to avoid a hazard. CAUTION! Do not touch the power plug with a wet hand.
-
Page 12: Performance Indicator
性能提示 PERFORMANCE INDICATOR PRODUCE: 制水： When first time Start-up procedure is finished, 机器正常使用后，每次打开龙头取水，机器的状态灯、滤芯状态 each time open the water filtration faucet to get the pure 灯都会亮起显示。 water the operation status light will light on. 滤芯正常提示灯亮起白色。 Shut off faucet, all lights will black out. 关闭龙头，所有灯熄灭。... -
Page 13: Troubleshooting Guide
,and filter has water pressure,water will run out. bottom or filter sleeves Please wipe water with a duster. Kohler Service Hotline: 800 820 2628 / 400 820 2628 Question Trouble Shooting Please check whether there is a drain plug in the drain port. - Page 14 常见问题及处理 请注意：如下状况非产品故障。 问题 说明 这个是滤芯提醒。 滤芯指示灯变为 ·红色常亮为预警--建议准备更换滤芯（约1个月后到期） ·红色闪烁为报警--建议立刻更换滤芯 更换滤芯后，长按对应的滤芯指示灯，即可复位 （任意一级或多级）滤芯指示灯 从白色变为红色（亮/闪烁） 这个是正常现象。 在安装机器或者更换滤芯时，发现机器底部 或者滤芯套筒处有少量水或者流出少量水 安装滤芯或者更换滤芯时，滤芯基座和滤芯内会有少量水流出， 因为旋出滤芯时，基座和滤芯有水压，在旋转过程会流出，请擦干即可。 科勒服务热线: 800 820 2628 / 400 820 2628 问题 解决方法 机器连续工作不停机、 检查机器废水出水口是否有安装废水塞， 废水一直在排放 如果未安装废水塞，请安装废水塞 1. 检查机器纯水出水端是否有安装废水塞，如果有安装，请 去掉废水塞。 同时建议检查废水端是否有安装废水塞，废水端应装有废水 机器出水流量较小 塞。 2. 滤芯使用时间较久，滤芯堵塞，建议更换滤芯。 3. RO滤芯安装不正确，检查滤芯是否安装到位，正确方式对 应点位应朝上，不可朝下。...
- Page 15 X: Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current requirements in GB/T 26572. The product "service life for environment protection" is 10 years; Kohler Company will specify product service life based on product characteristics. The product "service life for environment protection" is only effective when the product is used as described in the product specification.
- Page 16 扫码了解 产品信息 1406034-T01-D...
