Samsung SolarCell Quick Start Manual

ENG

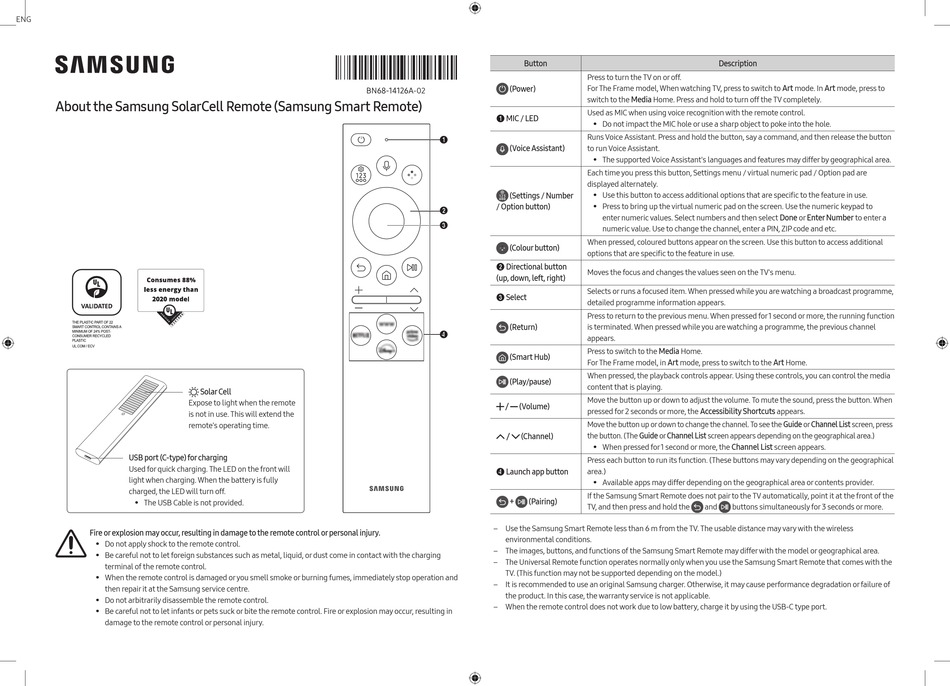

About the Samsung SolarCell Remote (Samsung Smart Remote)
Expose to light when the remote
is not in use. This will extend the
remote's operating time.
USB port (C-type) for charging
Used for quick charging. The LED on the front will
light when charging. When the battery is fully
charged, the LED will turn off.
• The USB Cable is not provided.
Fire or explosion may occur, resulting in damage to the remote control or personal injury.
• Do not apply shock to the remote control.
• Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging
terminal of the remote control.
• When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and
then repair it at the Samsung service centre.
• Do not arbitrarily disassemble the remote control.
• Be careful not to let infants or pets suck or bite the remote control. Fire or explosion may occur, resulting in
damage to the remote control or personal injury.
Solar Cell
Button
Press to turn the TV on or off.
(Power) For The Frame model, When watching TV, press to switch to Art mode. In Art mode, press to
-02
switch to the Media Home. Press and hold to turn off the TV completely.
Used as MIC when using voice recognition with the remote control.
1 MIC / LED
Runs Voice Assistant. Press and hold the button, say a command, and then release the button
1
(Voice Assistant) to run Voice Assistant.
Each time you press this button, Settings menu / virtual numeric pad / Option pad are
displayed alternately.
(Settings / Number
/ Option button)
2
3
When pressed, coloured buttons appear on the screen. Use this button to access additional
(Colour button)
options that are specific to the feature in use.
2 Directional button
Moves the focus and changes the values seen on the TV's menu.
(up, down, left, right)
Selects or runs a focused item. When pressed while you are watching a broadcast programme,
3 Select
detailed programme information appears.
Press to return to the previous menu. When pressed for 1 second or more, the running function
is terminated. When pressed while you are watching a programme, the previous channel
(Return)
4
appears.
Press to switch to the Media Home.
(Smart Hub)
For The Frame model, in Art mode, press to switch to the Art Home.
When pressed, the playback controls appear. Using these controls, you can control the media
(Play/pause)
content that is playing.
Move the button up or down to adjust the volume. To mute the sound, press the button. When
(Volume)
pressed for 2 seconds or more, the Accessibility Shortcuts appears.
Move the button up or down to change the channel. To see the Guide or Channel List screen, press
the button. (The Guide or Channel List screen appears depending on the geographical area.)
(Channel)
Press each button to run its function. (These buttons may vary depending on the geographical
4 Launch app button area.)
If the Samsung Smart Remote does not pair to the TV automatically, point it at the front of the
+ (Pairing)
TV, and then press and hold the
– Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless
environmental conditions.
– The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
– The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the
TV. (This function may not be supported depending on the model.)
– It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of
the product. In this case, the warranty service is not applicable.
– When the remote control does not work due to low battery, charge it by using the USB-C type port.
Description
• Do not impact the MIC hole or use a sharp object to poke into the hole.
• The supported Voice Assistant's languages and features may differ by geographical area.
• Use this button to access additional options that are specific to the feature in use.
• Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to
enter numeric values. Select numbers and then select Done or Enter Number to enter a
numeric value. Use to change the channel, enter a PIN, ZIP code and etc.
• When pressed for 1 second or more, the Channel List screen appears.
• Available apps may differ depending on the geographical area or contents provider.
and buttons simultaneously for 3 seconds or more.
