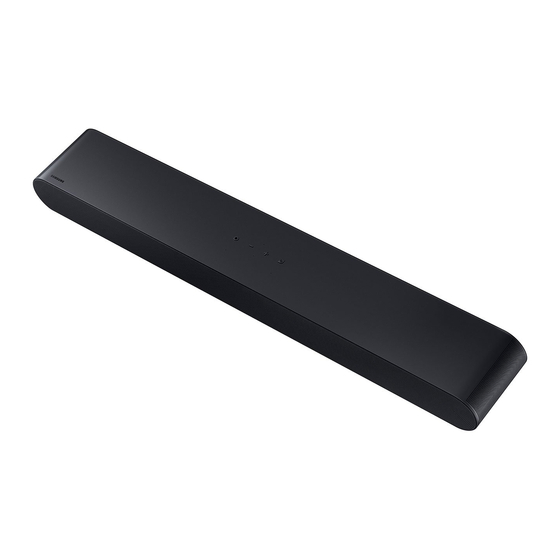

- Page 1 FULL MANUAL HW-S60B / HW-S61B Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
- Page 2 • This apparatus shall always be connected to a Refer to the table below for an explanation of AC outlet with a protective grounding symbols which may be on your Samsung product. connection. • To disconnect the apparatus from the mains,...
- Page 3 However, if there is no alternative to cutting off the 2. During thunderstorms, disconnect the AC plug, remove the fuse and then safely dispose of plug from the wall outlet. Voltage peaks due the plug. Do not connect the plug to a mains to lightning could damage the unit.
-
Page 4: Table Of Contents
Adjusting the Soundbar volume with a TV remote control ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar ------------------------- Connecting to a TV Connecting the TV that supports HDMI ARC (Audio Return Channel) - Page 5 Connecting an External Device Connecting using an Optical Cable ------------------------- Connecting a Mobile Device Method 1. Connecting via Bluetooth ------------------------- Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- Using the Tap Sound ------------------------- Connecting via Apple AirPlay 2 Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components...
-
Page 6: Checking The Components
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care. -
Page 7: Product Overview
02 PRODUCT OVERVIEW Front Panel / Top Panel of the Soundbar Top Panel The LED Indicator flashes, glows, or changes colour depending on the Soundbar's current mode or status. The colour of the LED indicator and the number of lights indicate the active mode as described below. - Page 8 Press the (Mic On/Off) button to turn the microphone on or off. When the microphone is off, the LED Indicator will light red. Red On On/Off LED Indicator Button “ “ Mic Off” Mic On” • When you plug in the AC cord, the power button will begin working in 4 to 6 seconds. •...
-
Page 9: Bottom Panel Of The Soundbar
Bottom Panel of the Soundbar DC 19V DIGITAL AUDIO IN DC 19V DIGITAL (OPTICAL) AUDIO IN (OPTICAL) SERVICE HDMI SERVICE (ARC) HDMI (ARC) DIGITAL AUDIO IN (OPTICAL) DC 19V HDMI (ARC) SERVICE DC 19V (Power Supply In) Connect the AC/DC power adapter. (See page 17) SERVICE Connect a USB storage device to upgrade the product's software. -
Page 10: Using The Remote Control
03 USING THE REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. - Page 11 (Mute) Press the (Mute) button to mute the sound. Press it again to unmute the sound. Blinks X Repeatly Indicator Volume Push the button up or down to adjust the volume. White moves to right X1 White moves to left X1 Indicator Volume Up Volume Down...
- Page 12 (Sound Control) By pressing the button, you can set the audio function. The desired item can be adjusted using the Up/ Down buttons. Each time the mode changes, the Multicolour LED blinks in white. White Blinks X1 Indicator ...
- Page 13 Up/Down/Left/Right Press Up/Down/Left/Right on the button to select or set functions. • Music Skip Press the Right button to select the next music file. Press the Left button to select the previous music file. • ID SET Press and hold the Up button for 5 seconds to complete ID SET (when connecting to a wireless subwoofer or wireless rear speakers).
-
Page 14: Active Voice Amplifier (Ava)
Active Voice Amplifier (AVA) • Analyzes external noise in real time while soundbar is playing, so that voice audio can always be heard clearly. • No data is saved during the analysis. Using the Hidden Buttons (Buttons with more than one function) Hidden Button Reference page Remote Control Button Function... -
Page 15: Output Specifications For The Different Sound Effect Modes
5.1 ch 7.1 ch • The Samsung Wireless Rear Speaker Kit, and Subwoofer can be purchased separately. To purchase a Kit or the Subwoofer, contact the vendor you purchased the Soundbar from. • When the input source is Dolby Atmos® the Subwoofer-only setup provides 5.1 channel audio, while the Subwoofer &... -
Page 16: Adjusting The Soundbar Volume With A Tv Remote Control
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds. -
Page 17: Connecting The Soundbar
Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9100S, sold separately) and Wireless Subwoofer (SWA-W510, sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit and Wireless Subwoofer manual. -
Page 18: Connecting To A Tv
05 CONNECTING TO A TV Connecting the TV that supports HDMI ARC (Audio Return Channel) CAUTION • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. - Page 19 NOTES • When you connect the TV that supports the HDMI ARC (Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable. • We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
-
Page 20: Connecting Using An Optical Cable
Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Optical Cable (not supplied) DIGITAL AUDIO IN... -
Page 21: Connecting Via Bluetooth
Bluetooth Speaker List [AV] Samsung Soundbar S60B / [AV] Samsung Soundbar S61B (Bluetooth)) 3. Select “[AV] Samsung Soundbar S60B / [AV] Samsung Soundbar S61B” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list. - Page 22 If the device fails to connect • If you have an existing Soundbar (e.g., [AV] Samsung Soundbar S60B / [AV] Samsung Soundbar S61B) on the list of speakers on the Samsung TV, delete it. • Then repeat steps 1 through 3.
-
Page 23: Connecting Via Wi-Fi
• Samsung TVs released in 2017 or later Home ( ) → Menu → Settings ( ) → All Settings ( ) Sound Sound Output [AV] Samsung Soundbar S60B / [AV] Samsung Soundbar S61B (Wi-Fi) ENG - 23... -
Page 24: Connecting To A Tv That Supports Dolby Atmos
Connecting to a TV that supports Dolby Atmos® Pre-connection Checklist • Dolby Atmos® is supported in "TV ARC" or "Wi-Fi" mode. • Make sure that the content supports Dolby Atmos®. Connect to the HDMI IN (ARC) or (eARC) port of your TV. Connect to the HDMI (ARC) port of DIGITAL the Soundbar main unit. - Page 25 Open the audio output options on the settings menu of your BD player or other device and make sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).
-
Page 26: Using The Q-Symphony Function
Using the Q-Symphony Function For Q-Symphony, the Soundbar syncs with a Samsung TV to output sound through two devices for optimum surround effect. When the Soundbar is connected, the menu, “TV+Soundbar” appears under the Sound Output menu of the TV. Select the corresponding menu. -
Page 27: Using The Spacefit Sound
(Sound Control) → "SpaceFit Sound Off" → ▲ ( Up ) → "SpaceFit Sound On") • This is available in all Sound modes. Method 2. Connecting via TV To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu. (Home ( ) → Menu → Settings ( ) →... -
Page 28: Connecting An External Device
06 CONNECTING AN EXTERNAL DEVICE Connecting using an Optical Cable Bottom of the Soundbar Optical Cable BD / DVD player / Set-top (not supplied) DIGITAL box / Game console AUDIO IN (OPTICAL) HDMI (ARC) Top of the Soundbar OPTICAL OUT - AUDIO - White On ->... -
Page 29: Connecting A Mobile Device
Green → Blue in turn. 5 Sec “Ready to connect via Bluetooth.” 2. On your device, select “[AV] Samsung Soundbar S60B / [AV] Samsung Soundbar S61B” from the list that appears. 3. Play music files from the device connected via Bluetooth through the Soundbar. - Page 30 Notes on Bluetooth connection • Locate a new device within 1 m to connect via Bluetooth communication. • If asked for a PIN code when connecting a Bluetooth device, enter <0000>. • The Soundbar automatically turns off after 18 minutes in the Ready state. •...
- Page 31 Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • If the Soundbar is disconnected from the Bluetooth device, the multicolour LED indicator on the Soundbar blinks "Red”...
-
Page 32: Method 2. Connecting Via Wi-Fi (Wireless Network)
Method 2. Connecting via Wi-Fi (Wireless Network) To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required. The initial connection 1. Install and launch the SmartThings app from your mobile device (smartphone or tablet). 2. -
Page 33: Using The Tap Sound
Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar. • This function may not be supported, depending on the mobile device. • This function is only compatible with Samsung mobile devices with Android 8.1 or later. SmartThings App... -
Page 34: Connecting Via Apple Airplay
• This feature may not be available in some countries. • This Samsung Soundbar supports AirPlay 2 and requires iOS 11.4 or later. With AirPlay 2, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar. -
Page 35: Installing The Wall Mount
09 INSTALLING THE Wallmount Components WALL MOUNT A TYPE : 450mm Installation Precautions Wall Mount Guide • Install on a vertical wall only. • Do not install in a place with high (M4 x L10) temperature or humidity. • Verify whether the wall is strong enough to Holder-Screw Screw support the product’s weight. - Page 36 2. Align the Wall Mount Guide’s Centre Line 5. Push a screw (not supplied) through each with the centre of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.
-
Page 37: Installing The Soundbar In Front Of Tv
10 INSTALLING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the SOUNDBAR IN Bracket-Wall Mounts on the Holder-Screws on the wall. FRONT OF TV 8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws. -
Page 38: Software Update
11 SOFTWARE 1. Go to (www.samsung.com) → search for the model name from the customer support UPDATE menu option. • For more information about update, refer to Upgrade Guide. 2. Download the upgrade file (USB type). 3. Unzip the file to create a folder with the file Auto Update name. -
Page 39: Reset
Reset 5 Sec With the Soundbar on, press the (Volume) buttons on the body at the same time for at least 5 seconds. The LED display changes as shown below and then the Soundbar is reset. White moves from left to right and right to left Cyan Blinks X3 Indicator... -
Page 40: Troubleshooting
Remote control does not work. ; HDMI-CEC may not be activated on the TV. ; Point the remote directly at the Soundbar. Turn on the CEC on the TV menu. (Samsung ; Replace the batteries with new ones. TV: Home ( ) →... - Page 41 ; Reconnect it after removing the Bluetooth ; If your wireless router is new, you will need speaker list on the device to connect. to reconfigure the speaker’s network (Samsung TV: Home ( ) → Menu → settings. Settings ( ) →...
-
Page 42: Licence
13 LICENCE • Use your phone, tablet or computer as a remote control for Spotify. Go to spotify. Dolby, Dolby Atmos, and the double-D symbol com/connect to learn how are registered trademarks of Dolby • The Spotify Software is subject to third Laboratories Licensing Corporation. -
Page 43: Open Source Licence Notice
– The product can wake with a button press on the chassis from sleep mode. ENERGY STAR qualified model only (The other models) – As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency. -
Page 44: Specifications And Guide
BT max transmitter power 100mW at 2.4GHz – 2.4835GHz NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. Precaution : The Soundbar will restart automatically if you turn on/turn off Wi-Fi. - Page 45 Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements. The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name.
- Page 46 EIRE UNITED KINGDOM EIRE his Samsung product is warranted for the period of twelve (12) months from the origi- is Samsung product is warranted for the period of twelve (12) months from the origi- beyond the control of Samsung. beyond the control of Samsung.
- Page 47 © 2022 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Country Samsung Service Centre Web Site Country Samsung Service Centre ...
