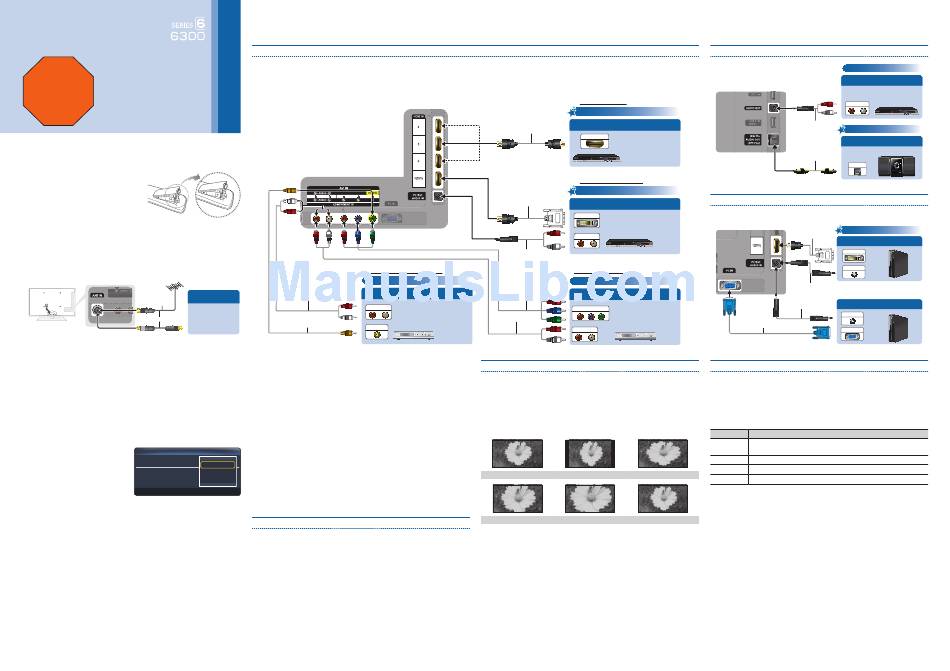

Quick Setup Guide

Congratulations on the purchase of your new Samsung TV.
Read this setup guide to get your TV up and running quickly.
1-800-SAMSUNG (1-800-726-7864)
STOP
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660-2112
Please do not return this unit.
Samsung Electronics Canada Inc.
55 Standish Court Mississauga, Ontario L5R 4B2
If you have problems operating your
Call Center hours of operation: Mon-Sun, 9:00 AM -12
TV, call:
AM EST.
1-800-SAMSUNG (1-800-726-7864)
To register this product, visit: www.samsung.com/
For web support please visit:
register.
www.samsung.com/support
Step 1
: Install the Batteries into the Remote
To install batteries into your remote control, follow these steps:
1. Lift the cover on the back of the remote
upward as shown in the figure to the
right.
2. Install two AAA batteries.
✎
Make sure to match the + and -
ends of the batteries to the diagram
in the battery compartment.
3. Replace the cover.
Step 2
: Connect Power and Antenna or Cable
VHF/UHF Antenna
Connect Ant In to
Antenna Cable
(Not Supplied)
• Wall cable jack
• VHF/UHF Antenna
or
• Cable or Satellite box
Ant or Cable Out
Use a 75 ohm (round) cable.
Step 3
: Run Plug & Play
When you turn on your TV for the first time, it automatically launches the Plug &
Play function. With Plug & Play, you can select the On Screen Display language, set
the clock mode, and launch the TV's channel memorizing process. It also displays
connection instructions similar to those in this guide.To navigate while Plug & Play
is running, press the Up, Down, Left or Right arrow buttons on your remote. To
make a selection, press the ENTERE button. To skip a screen, press the
button. To turn on your TV, press the POWER button on the remote or on the TV.
To run Plug & Play, follow these steps:
1
Using your remote control, select
Plug & Play
the language for the On Screen
Select Language of the OSD.
Display (OSD), and then press the English
ENTERE button. Español
Menu Language :
Français
2
Select Home Use, and then U Move E Enter
press the ENTERE button.
If you select Store Demo, the TV will reset your picture and audio settings
every 30 minutes.
3
Select Antenna Source. If Antenna Source is Air, Cable or Auto, you must
select your cable system type. After selecting source, select Search; then
press the ENTERE button on your remote.
✎
Most cable systems are Standard(STD) systems, If you are not sure about
what kind of cable system you have, contact your cable company.
✎
If your TV is attached to a cable or satellite box, skip Steps 3 through 5. After
Plug & Play is complete, set your TV to Channel 3 or 4, according to the
directions for your cable or satellite box.
4
The TV memorizes the available channels. This process can take up to 45
minutes.
Step 4
: Connect External Devices
Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)
Use one of the connections below to connect your TV to an external A/V device.
We recommend using HDMI for the highest picture quality.
✎
When connecting to AV IN 1 on the back of your TV, attach the video cable (yellow) to the green jack next to the
AV IN 1 label. The jack will not match the color of the video cable (yellow).
Lowest Quality Connection
Audio/Video connection (480i only)
Using an Audio/Video Cable
Audio Cable (Not Supplied)
DVD, Blu-ray player, cable box,
AUDIO OUT
STB satellite receiver, VCR
Video Cable (Not Supplied)
VIDEO OUT
5
After the TV has memorized the channels, choose the Clock Mode. Select
Auto if you have a digital channel in your area. Select Manual if you don't, or
if you have a cable or satellite box. When done, press the ENTERE button.
✎
If you select Manual, the clock setting screen appears.
6
Select the daylight savings time setting: Off or On, and then press the
MENU
ENTERE button.
✎
This function is only available when the Clock Mode is set to Auto.
7
Select the time zone in which you live, and then press the ENTERE button.
8
After the time zone screen, The connection method for best HD screen
quality is displayed. Press Right arrow button on your remote to view each
screen in succession. Press the Blue button to skip this section.
9
The Enjoy your TV. screen appears. Then press the ENTERE button.
Setting the Clock
Before you can use your TV's On/Off Timer, you must set the clock. To set the
clock, follow these steps:
1. Turn on your TV, press the MENU button on your remote, then select Setup →
Time.
2. Select Clock Mode, and then press the ENTERE button.
3. Choose Auto or Manual.
x
If you select Auto, the current time will be set automatically using the time
from a digital channel.
x
If you select Manual, you can set the Month, Day, Year, Hour, Minute
and am/pm directly by pressing up, down, left and right arrow button on
your remote.
4. Press the RETURN button on your remote when done.
Best Connection
HD connection (up to 1080p)
HDMI Cable (Not Supplied)
Very Good Connection
HD connection (up to 1080p)
HDMI to DVI Cable (Not Supplied)
DVI OUT
AUDIO OUT
Audio Cable (Not Supplied)
Good Connection
Component connection (up to 1080p)
Component Cable (Not Supplied)
COMPONENT OUT
Audio Cable (Not Supplied)
Device
AUDIO OUT
Changing the Screen Size
Your TV has several screen size options, each designed to work best with specific
types of video input. If you have a cable box or satellite receiver, it may have its own
set of screen sizes as well.
To change the screen size, press the P.SIZE
you press it, your TV displays the current setting. Thereafter, each time you press
the P.SIZE button, you change the size of the picture on the screen.
The following sizes are available:
16:9 Wide screen 4:3 Standard screen
Zoom 1 Zoom 2
✎
Screen Fit: Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
Connecting an audio device (Home Theater, etc.)
Connect your TV to your Home Theater or other
audio device to enjoy enhanced Sound quality.
Using an HDMI Cable
DVD, Blu-ray player, HD cable box,
HDMI OUT
HD STB (Set-Top-Box) satellite
receiver
Device
Connecting a PC
Using an HDMI to DVI Cable
Connect your TV to a PC to use it as a Monitor.
Device
Using a Component Cable
DVD, Blu-ray player, cable box,
STB satellite receiver, VCR
Device D-Sub Cable (Not Supplied)
Changing the Picture Mode
Your TV has four preset Picture modes with factory adjusted settings, each
designed to give you an excellent picture under specific conditions.
To change the Picture mode, press the
button on your remote. The first time time you press it, your TV displays the current setting. Thereafter, each time you
press the P.MODE button, you change the mode of the picture on the screen.
The Picture Modes are listed and described in the table below:
Mode Description
Dynamic Brightens picture. For a vibrant, enhanced image in brightly lit or
sunny room.
For a bright, detailed picture in a normally lit room.
Standard
For a comfortable, easy-on-the-eyes picture in a normally lit room.
Natural
Wide Fit
For a studio quality cinema picture in a dimly lit or dark room.
Movie
To change the Picture Mode, follow these steps:
1. With the TV on, Press the
2. Select Mode, then Press the ENTERE button.
Screen Fit
3. On the Mode menu in Picture, use the ▼ or ▲ on your remote to select the
picture mode you want.
4. Press the ENTERE button to finish the change.
Analog Audio connection
Using an Audio Cable
Amplifier / DVD home theater
AUDIO IN
Audio Cable (Not Supplied)
Digital Audio connection
Using an Optical Cable
Digital Audio System
Optical Cable (Not Supplied)
OPTICAL
HD connection
HDMI to DVI Cable
(Not Supplied)
Using an HDMI to DVI Cable
DVI OUT
AUDIO OUT
Audio Cable (Not Supplied)
Using a D-Sub Cable
Audio Cable (Not Supplied)
AUDIO OUT
PC OUT
P.MODE button on your remote. The first
MENU button on your remote, then select Picture.
