- Page 1 Instruction Manual for...
- Page 2 Avoid touching any lens surfaces directly with your hands. In case a lens becomes dirty with fingerprints or general smears, gently wipe it using a commercially available lens cleaner and lens cleaning paper or cloth, or consult your local Vixen dealer.

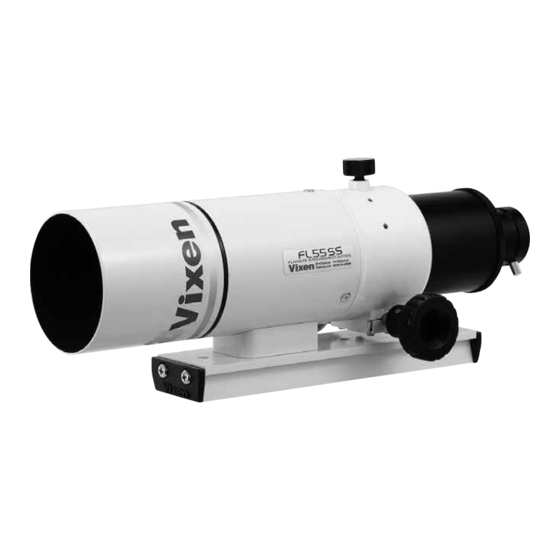

- Page 3 CONTENTS The FL55SS shipping box contains the items listed below. Check if all the items are included. ① FL55SS Optical Tube ② Extension Tube VC ③ Allen wrench of 5mm on a side ④ Dovetail Slide Bar M (Already attached) ⑤...
- Page 4 Be sure to use the M4x12mm screws instead of the ones originally supplied to the finder bracket shoe. The supplied FL55SS M4X12mm screws Finder Bracket Shoe (Optional) Eyepiece Adapter 31.7mm I n s e r t a n e y e p i e c e w i t h 31.7mm barrel sold separately.
- Page 5 T h e F i n d e r b r a c k e t s h o e i s a v a i l a b l e f o r t h e 5 0 m m F i n d e r 7X50mm Finder with illuminated Br a c ket II or X Y Re d Dot Fin der II. reticle (Optional) The FL55SS and AP Mount are shown by way of example.
- Page 6 FL55SS Visual Back 60mm to 43mm AD Ring Example: Using the FL55SS with SLV20mm or SLV5mm eyepiece. D = 5 5 m m f = 3 0 0 m m Vixen Co.,Ltd. MADE IN JAPAN Eyepiece Telescope’s...
- Page 7 DSLR Camera Body *1 A filter may cause ghost if it is attached. Wide Photo Adapter 60mm T-Ring (appropriate to your camera) *2 It is included either in a Flattener HD Kit for FL55SS or a Reducer HD Kit for FL55SS.
- Page 8 Specifications Model FL55SS Objective Lens Fluorite apochromatic lens Lens coatings Multi-coated 55mm Effective Aperture Objective Lens Focal Length 300mm Focal Ratio f/5.5 Light Gathering Power 62X unaided eye Resolving Power 2.11 arc sec. Limiting Magnitude 10.5 Focuser Focuser Design Rack-and-pinion focuser with drawtube lock screw Threads 60mm, 43mm and 36.4mm...
