GFK-2884D
June 2015
The insertion and removal of I/O modules is the same as in an RX3i Universal Backplane. Refer to GFK-
2314, PACSystems RX3i System Manual.
The RX3i CEP001 Carrier provides two RJ-45 Ethernet receptacles. It supports 10/100BASE-TX Ethernet
standard interface.
Features
Full programming and configuration services for all supported RX3i I/O Modules using Proficy
Machine Edition. Refer to the section,
Support daisy-chain/line, star, or ring (redundant media) network topologies.
Two switched Ethernet ports: two eight-conductor RJ-45 shielded-twisted pair 10/100 Mbps copper
interfaces.
USB port for field updates of firmware using WinLoader.
Supports Hot-standby CPU Redundancy using PROFINET I/O: requires RX3i CEP001 2.01 GSDML
version 2.3 or later.
Supports HART
Pass Through using PROFINET.
®
Note:
The USB port is for firmware upgrades only. It is not intended for permanent connection.
Note:
The CEP001 Carrier requires a user-supplied +24 Vdc power source.
®
HART
®
is a registered trademark of the HART Communication Foundation of Austin, Texas USA. Any use of the term
HART hereafter in this document, or any document referenced by this document, implies the registered trademark.
* Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of
their respective owners.
Copyright © 2014-2015 by General Electric Company. All Rights Reserved.

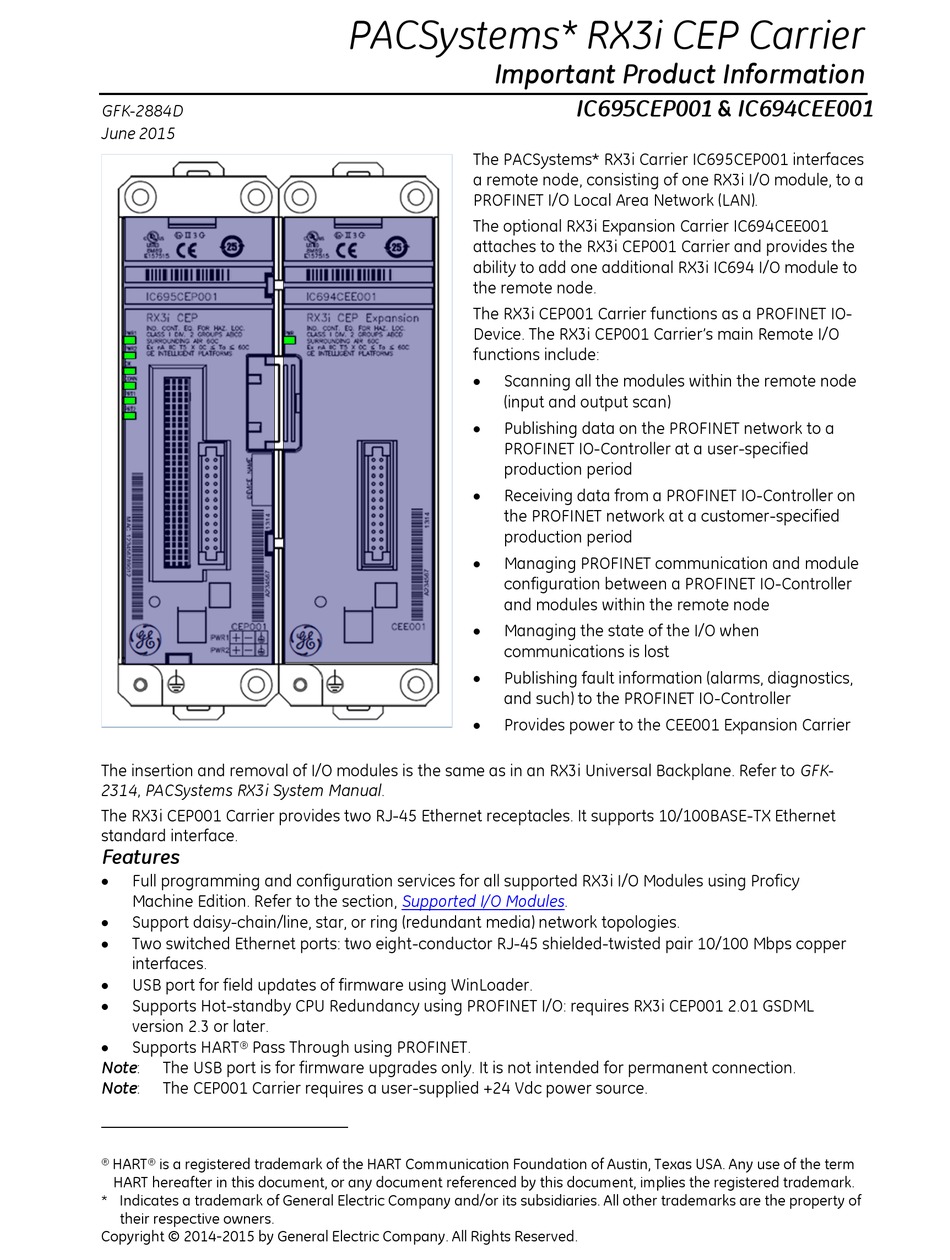

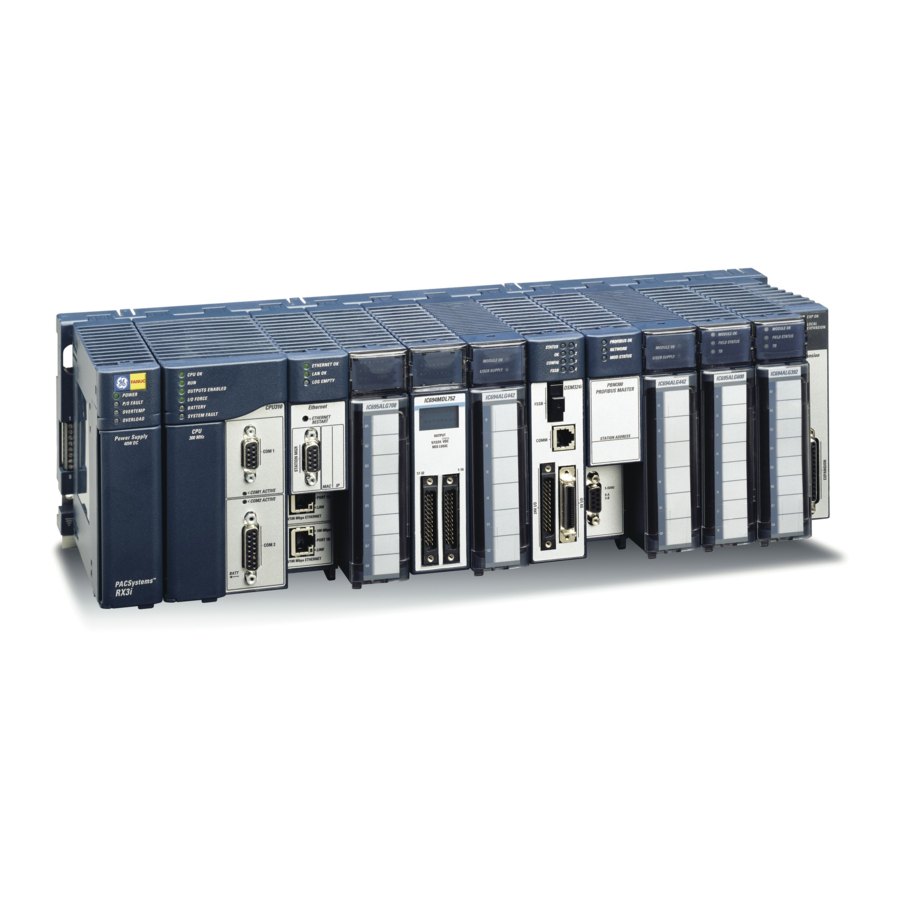

PACSystems* RX3i CEP Carrier
Important Product Information
The PACSystems* RX3i Carrier IC695CEP001 interfaces
a remote node, consisting of one RX3i I/O module, to a
PROFINET I/O Local Area Network (LAN).
The optional RX3i Expansion Carrier IC694CEE001
attaches to the RX3i CEP001 Carrier and provides the
ability to add one additional RX3i IC694 I/O module to
the remote node.
The RX3i CEP001 Carrier functions as a PROFINET IO-
Device. The RX3i CEP001 Carrier's main Remote I/O
functions include:
Scanning all the modules within the remote node
(input and output scan)
Publishing data on the PROFINET network to a
PROFINET IO-Controller at a user-specified
production period
Receiving data from a PROFINET IO-Controller on
the PROFINET network at a customer-specified
production period
Managing PROFINET communication and module
configuration between a PROFINET IO-Controller
and modules within the remote node
Managing the state of the I/O when
communications is lost
Publishing fault information (alarms, diagnostics,
and such) to the PROFINET IO-Controller
Provides power to the CEE001 Expansion Carrier
Supported I/O
Modules.
IC695CEP001 & IC694CEE001
Advertisement
Table of Contents
Related Manuals for PACSystems RX3i
Summary of Contents for PACSystems RX3i
- Page 1 Provides power to the CEE001 Expansion Carrier The insertion and removal of I/O modules is the same as in an RX3i Universal Backplane. Refer to GFK- 2314, PACSystems RX3i System Manual. The RX3i CEP001 Carrier provides two RJ-45 Ethernet receptacles. It supports 10/100BASE-TX Ethernet standard interface.
-
Page 2: Ordering Information
Configured using Proficy Machine Edition when used with a PACSystems RX3i Configuration PROFINET Controller module as part of an RX3i High-speed I/O LAN system. V2.3 GSDML file available for import into 3rd-Party tools. Value does not include the power consumption of the installed I/O modules. When calculating the total power... -
Page 3: Installation Location
GFK-2884D Installation Location This product is intended for use with the RX3i system. Its components are considered open equipment (having live electrical parts that may be accessible to users) and must be installed in an ultimate enclosure that is manufactured to provide safety. At a minimum, the enclosure shall provide a degree of protection against solid objects as small as 12mm (fingers, for example). - Page 4 IC695CEP001 & IC694CEE001 Normal Operation of Individual LEDs Power LEDs The RX3i CEP001 Carrier has two Power LEDs, PWR1 and PWR2 that indicate whether the power is applied and is within range corresponding to the two power sources. Green, ON Power is applied at the minimum specified level The power supply does not have power or has failed.
- Page 5 When the Expansion Carrier is aligned with the CEP001 Carrier, engage the expansion connectors. Close the connector cap. Secure the Expansion Carrier to the DIN rail or panel. Refer to Installing an RX3i CEP001 Carrier on a DIN-rail or Panel Mounting.
-
Page 6: Panel Mounting
PACSystems* RX3i CEP Carrier GFK-2884D IC695CEP001 & IC694CEE001 Installing an RX3i CEP001 Carrier on a DIN-rail The carrier mounts on a standard EN 50022, 35 x 7.5 mm DIN-rail. Conductive (unpainted) finish is required for proper grounding. For best resistance to vibration, the DIN-rail should be installed horizontally on a panel using screws spaced approximately 15 cm (6”) apart. - Page 7 All CEP001 Carriers in a system must be grounded to minimize electrical shock hazard. Failure to do so can result in severe personal injury. The RX3i CEP001 Carrier and CEE001 Expansion Carrier each provide two grounding connection contacts: Grounding clips at the back of the carrier, which require DIN-rail installation ...
- Page 8 GFK-2884D IC695CEP001 & IC694CEE001 Installing Modules on the Carrier The insertion and removal of I/O modules is the same as in an RX3i Universal Backplane. For details, refer to GFK-2314, PACSystems RX3i System Manual. Caution Do not install a Power Supply module on the CEP001 or CEE001 Carrier. Attempting to do so could damage the module and/or the Carrier.
-
Page 9: Connecting Power Supplies
If using redundant power supplies, connect the second power supply to the input power terminal block. Insert the input power terminal block into the Input Power connector. Note: There are no user-serviceable fuses in the CEP001 Carrier. Connecting Power to RX3i CEP001 Carrier... -
Page 10: Adding A Redundant Power Supply
Insert the power terminal block into the Input Power connector. Apply power to the redundant power supply. The PWR2 LED on the RX3i CEP001 carrier should turn on. Apply power to the primary power supply. The PWR1 LED on the CEP001 Carrier should turn on. -
Page 11: Supported I/O Modules
Configuring the CEP001/CEE001 Node and Resident I/O Modules on a PROFINET Network Proficy Machine Edition is the primary tool used to configure an RX3i PROFINET network. The GSDML file for the RX3i CEP001 is included with Proficy Machine Edition, or may be downloaded from the support website at http://support.ge-ip.com. - Page 12 2.01 The RX3i CEP001 Carrier and the RX3i CEE001 Expansion Carrier do not support Interrupts from this module. The RX3i CEP001 Carrier does not support HART features which are logic-driven. HART data obtained via HART Pass Through is available. RX3i CEP001 version 2.30 is required for HART Pass Through functionality. Refer to additional Compatibility...
-
Page 13: Important Product Information
Supported I/O Modules, above. HART Pass Through entails usage of PC-based applications, RX3i Analog modules with HART functionality and (optionally) supporting PROFINET HART Pass Through products. HART Pass Through operation is described in the PACSystems HART Pass Through User Manual, GFK-2929. - Page 14 CEP blink trap 1-2. If used, IC695ALG628 must be installed in the RX3i CPU Rack. At time of publication, it is not supported by PROFINET scanners IC695PNS001 or IC695CEP001. Refer to IPIs for IC695PNS001 or IC695CEP001 for future updates.
-
Page 15: Operational Notes
If an unsupported module is inserted in the CEP001 or CEE001 Carrier, the module will not be recognized correctly. If, while using WinLoader, power is lost to the RX3i CEP001 Carrier during a Wait time is too long to firmware update, a delay of more than 50 seconds might be required before the enter download mode RX3i CEP001 Carrier can enter the firmware update mode again. -
Page 16: Additional Information
PACSystems RX3i PROFINET Scanner IC695CEP001 User Manual GFK-2883 PACSystems RX3i PROFINET Controller User Manual GFK-2571 PACSystems RX3i PROFINET Controller Command Line Interface Manual GFK-2572 PACSystems RX7i & RX3i CPU Reference Manual GFK-2222 PACSystems RX7i & RX3i CPU Programmer’s Reference Manual...
