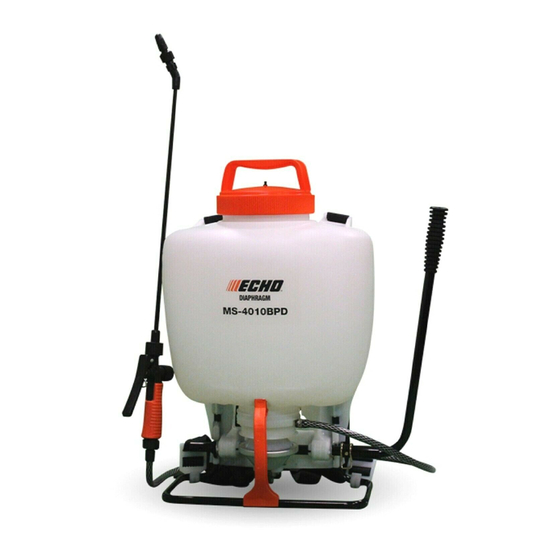

4 Gallon Backpack Manual
99922205745
© 08/2021 ECHO Incorporated
OPERATOR´S MANUAL
MS-4010BPD
Sprayer with
Diaphragm Pump
SERIAL NUMBER
502MS0000001 - 502MS9999999
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Read and understand all provided literature before use.
Failure to do so could result in seriouly injury.
Advertisement
Table of Contents
Related Manuals for Echo MS-4010BPD
Summary of Contents for Echo MS-4010BPD
- Page 1 4 Gallon Backpack Manual Sprayer with Diaphragm Pump SERIAL NUMBER 502MS0000001 - 502MS9999999 Cancer and Reproductive Harm www.P65Warnings.ca.gov Read and understand all provided literature before use. Failure to do so could result in seriouly injury. 99922205745 © 08/2021 ECHO Incorporated...
-
Page 2: Table Of Contents
2.2 Safety Instructions Troubleshooting guide……………. 10 General Information…………....7 Product Registration….....11,12 3.1 Main components Warranty.......... 13 3.2 Technical data 3.3 Chemical compatibility 3.4 Assembly 3.4.1 Parts you will receive 3.4.2 How to assemble your sprayer 99922205745 © 08/2021 ECHO Incorporated... -
Page 3: Introduction
Servicing Information Parts / Serial Number Genuine ECHO Parts and Assemblies for you ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. -
Page 4: Safety Information
Symbol Description Wear Hand No Flamable Protection Liquids Corrosive Wear Safety Mask Corrosive Wear Safety Glasses Temperature Wear Safety Limit Coveralls 30°C / 86°F Wash your Toxic hands before substances to operate Sprayer Clean Sprayer 99922205745 © 08/2021 ECHO Incorporated... - Page 5 Wear the personal protective equipment mentioned above when using, filling or washing your sprayer. • Keep connections tight to prevent leaks. • Never fill your sprayer with hot liquids, maximum: 30 ° C = 86° F. 99922205745 © 08/2021 ECHO Incorporated...
-
Page 6: Safety Instructions
Do not use hot liquids in sprayer. Maximum temperature 30°C, 86°F. • Do not drop a tank that has been pressurized. If tank is dropped, inspect immediately. Consult chemical manufacturer’s instructions for other important safety information. 99922205745 © 08/2021 ECHO Incorporated... -
Page 7: General Information
Discharge at 3 bar/min 4 - 6 bar / 58 – 87 psi Work pressure 4.7 kg / 10.3 Lbs Net Weight 5.4 kg / 12 Lbs Weight with box 51.5 x 39 x 22 cms Dimentions 99922205745 © 08/2021 ECHO Incorporated... -
Page 8: Chemical Compatibility
Read all Literature 99922205745 © 08/2021 ECHO Incorporated 3.4.2 How to assemble your sprayer: Following is an explanation of how to assemble your sprayer, carefully read the instructions. 1. Take out all the parts from the box and from the tank, your sprayer is almost assembled, take the pump handle and install it on the axis in the bottom, affix it with the locking pin;... -
Page 9: Operation
Rinse with clean water externally and internally, to avoid risk of contamination. When doing maintenance we recommend to replace all orings and gaskets that is composed by: - Shut-off valve gaskets - Nozzle gaskets - Breather check - Cap gasket. 99922205745 © 08/2021 ECHO Incorporated... -
Page 10: Troubleshooting Guide
Module is leaking. The Sealed module piston-diaphragm Replace sprayer, diaphragm pump is not available pump is damaged. as serviceable item. Tank leaks at hose connection. Clamp is loose or damaged. Replace hose. 99922205745 © 08/2021 ECHO Incorporated... -
Page 11: Product Registration
Thank you for choosing ECHO Equipment Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration. - Page 12 MS-4010BPD PRODUCT REGISTRATION 99922205745 © 08/2021 ECHO Incorporated...
-
Page 13: Warranty
ECHO INCORPORATED'S RESPONSIBILITY ECHO Incorporated’s Limited Warranty, provides to the original purchaser that this ECHO or Shindaiwa product is free from defects in material and workmanship. Under normal use and maintenance from date of purchase, ECHO Incorporated agrees to repair or replace at ECHO Incorporated's discretion, any defective product free of charge at any authorized ECHO or Shindaiwa servicing dealer (as applicable) within listed below application time periods, limitations and exclusions. - Page 14 • All SB-Series, Multipurpose Tool attachments, and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty • All hand tools are covered by a limited lifetime warranty. Warranty is handled through ECHO's Consumer Support Department. For due to misuse, mis-strike, abuse, or neglect is not covered by warranty. If you feel the handle broke prematurely due to a defect, please contact ECHO consumer support.
- Page 15 It is a dealer’s and/or customer’s responsibility to complete and return the warranty registration card supplied with your product or by visiting www.echo-usa.com or www. shindaiwa-usa.com. Your receipt of purchase including date, model and serial number must be maintained and presented to an authorized servicing dealer for warranty service.
- Page 16 502MS0000001 - 502MS9999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com 08/21-V01...
