Xerox XM7-19w User Manual

Lcd monitor user's guide xm7-19w
Hide thumbs Also See for XM7-19w:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
XM7-19w
LCD Monitor
LCD Monitor

Advertisement

Table of Contents
loading

Related Manuals for Xerox XM7-19w

Summary of Contents for Xerox XM7-19w

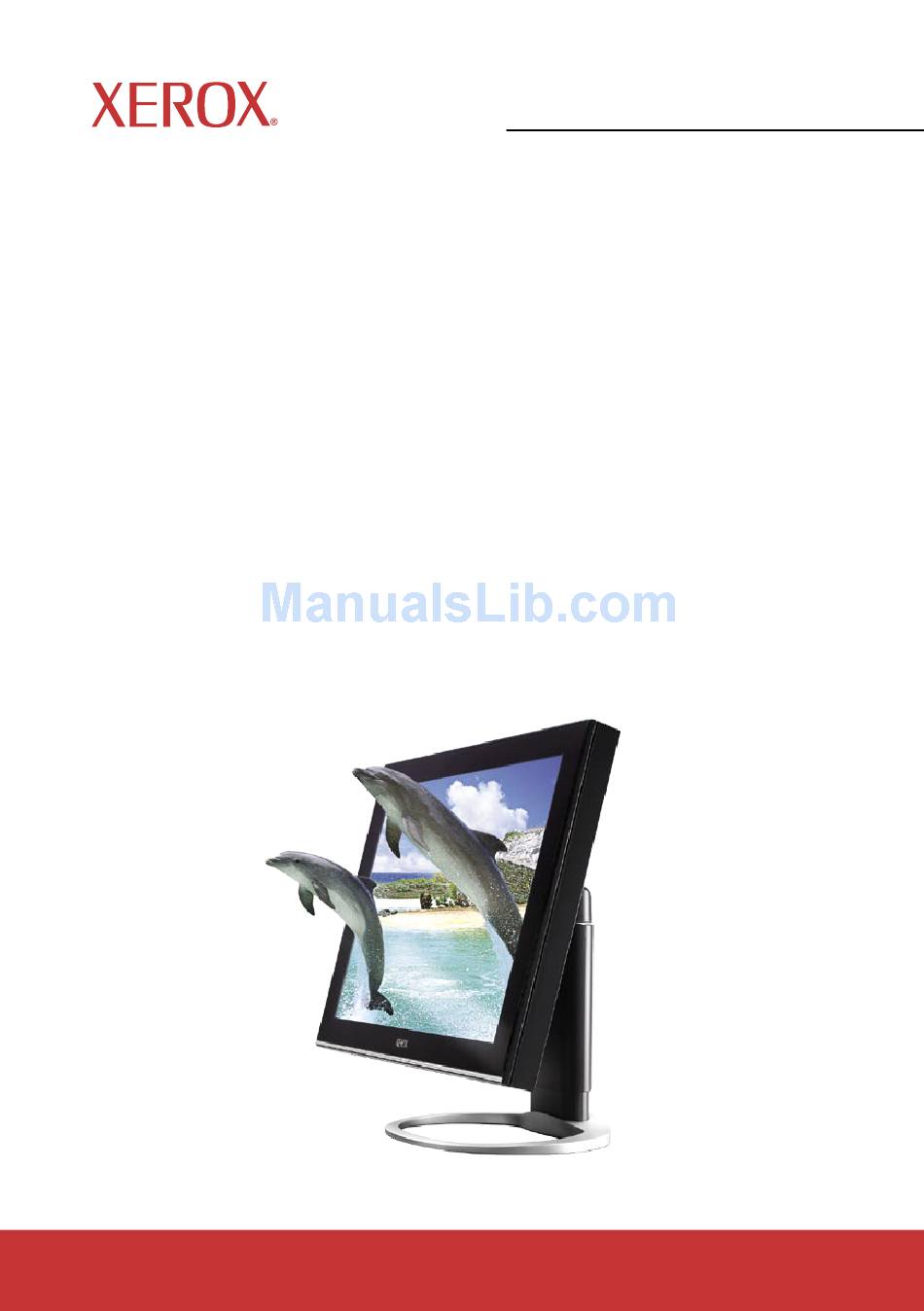

  • Page 1 User’s Guide XM7-19w LCD Monitor LCD Monitor...
  • Page 2 ©2006 by Xerox Corporation. All rights reserved. Copyright protection claimed includes all forms and matters of copyrightable material and information now allowed by statutory judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen displays, looks, etc.

  • Page 3: Table Of Contents

    CE Marking Declaration Of Conformity ...4 Federal Communications Commission (FCC) Statement ...5 Important Safety Instructions ...6 1 Introduction Features ...9 Package Contents ...10 Front View and Controls ... 11 2 Installation Connecting Your LCD Monitor to a Computer ...12 Method 1 : Analog (D-SUB) Connection ...12 Method 2 : Digital (DVI) Connection) ...14 Installing Your LCD Monitor ...16 3 OSD Menu...
  • Page 4 Proview International (UK) Limited 30 The Avenue, Watford, Hertfordshire WD17 4AE United Kingdom Timothy Lo Tel: +44 1923-248-111 Fax: +44 1923-248-222 Email: tim.lo@proview.co.uk PGL Europe B.V. (Proview Group Limited Rotterdam) Satijnbloem 37, 3068 JP Rotterdam Hollande David Hsieh Tel: +31-10-238-1090 Fax: +31-10-238-1091 Email: david@proview-group.nl...

  • Page 5: Ce Marking Declaration Of Conformity

    FCC/CE CE Marking Declaration Of Conformity This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.

  • Page 6: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Important Safety Instructions

    Important Safety Instructions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. Warnings •...
  • Page 8 • Do not touch the power cord and antenna cable during lightning. • Remove the plug from the wall outlet if the equipment will not be used for a long period of time. • Do not place, use or handle this equipment near water. •...
  • Page 9 • If any of the following conditions occur, unplug the power cord from the outlet and request service from qualified personnel. a. The power cord or plug is damaged. b. Liquid is spilled into the product . c. An object falls onto or into the product. d.

  • Page 10: Introduction

    XM7 is excellent to be your first wide screen monitor. • Multimedia Enhanced Speakers It brings multimedia and saves the desktop space. XM7-19w has two built-in 2w stereo speakers and are well integrated into the stylish design.

  • Page 11: Package Contents

    Package Contents Make sure the following items are in the box. If any items are missing, please return this product to the original place of purchase. CAUTION: Be sure to save original box and all packing material for future transport of monitor. LCD Monitor D-SUB Cable AUDIO Cable...

  • Page 12: Front View And Controls

    Front View and Controls MENU Press once to display the OSD (On Screen Display). And press to activate the items you highlight . DOWN/UP In OSD mode, press the DOWN/UP buttons to move the selection highlight to the next menu item counterclockwise or clockwise, respectively.

  • Page 13: Installation

    2 Installation Refer to the owner’s manual of the computer for connections. In the process of connecting external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. Connecting Your LCD Monitor to a Computer Method 1 : Analog (D-SUB) Connection Turn off the computer and unplug the power cord.
  • Page 14 NOTE: Your LCD monitor may come with D-SUB connector only or 2 D-SUB/1 DVI connectors. NOTE: Unplug the monitor before installation to avoid electric shock or damage. NOTE: off, it does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket.

  • Page 15: Method 2: Digital (Dvi) Connection

    Method 2: Digital (DVI) Connection Turn off the computer and unplug the power cord. Connect the DVI signal cable (not included) to the DVI port on the back of the computer. Connect the audio cable to the line-in port on the back of the computer.
  • Page 16 HOW TO GET SUPPORT FOR YOUR WIDE SCREEN? The wide-screen display enables you to view your content in a brand new way. The next generation of computing environments and game consoles are planning to support wide- screen resolutions. ■ Multitask - view applications side by side and reduce toggling between them.

  • Page 17: Installing Your Lcd Monitor

    Using Your LCD Monitor In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, you are able to adjust the monitor’s angle or height of the stand. The angle of the LCD monitor may be adjusted approximately 40 degrees.
  • Page 18 To access the SETTINGS dialog box, go to START>SETTINGS>CONTROL PANEL>DISPLAY. Inside the DISPLAY PROPERTIES window, go to the SETTINGS Tab. If the feature is available, you will find it listed within this dialog box. If you have trouble locating this feature, you might also visit the website of your display driver manufacturer (whose name should be displayed on the DISPLAY PROPERTIES>SETTINGS tab) for technical...
  • Page 19 OSD Menu The height of the LCD monitor’s stand may be adjusted approximately 12cm. Be sure to follow the sequence described below. Step1. First, release the LCD monitor’s stand lock. Use one hand to push the upper end of stand down, while using the other hand to press the stand’s lock button to unlock.
  • Page 20 Step3. Next, adjust the height of the stand’s post Use one hand to press down the upper end of stand to lower the height of the stand’s post, you should feel some resistance to this motion. NOTE: When the stand’s post is moved into lock position, please repeat Step 1 to release.

  • Page 21: Osd Menu

    3 OSD Menu Using the OSD Menu To create the best picture, your XM7-19w has been preset at the factory with the Preset Mode Timing shown on page 27. The OSD (On Screen Display) Menu allows the user to adjust various settings and options by following the steps below.

  • Page 22: The Osd Options

    The OSD Options The main menu includes the following options: Adjusts picture settings such as brightness, contrast. Allows selection of the general color tint: CUSTOM COLOR, WARM, or COOL. Allows selection of the sound options and effects. Adjusts OSD settings such as H/V position, H size and phase.

  • Page 23: The Picture Options

    The picture Menu The picture menu provides access to the following menus: The picture menu includes the following options: Automatically adjust the display settings to optimize performance based on the D-SUB signal. Controls the overall brightness. Controls the difference between the brightest and darkest regions of the picture.

  • Page 24: The Advanced Options

    The advanced Menu The advanced menu provides access to the following menus: The advanced menu includes the following options: Increase this setting to see crisp edges in the picture; decrease for soft edges. Allows selection of the general color tint: user, natural, warm, or cool.

  • Page 25: The Audio Options

    The audio Menu The audio menu provides access to the following menus: The audio menu includes the following options: Adjusts the speakers volume up and down. Mutes and restores the monitor speakers sound. Exits the audio menu. volume mute picture exit advanced audio...

  • Page 26: The Options Options

    The options Menu The options menu provides access to the following menus: The options menu includes the following options: osd h. position Moves the OSD left and right in the window. osd v. position Moves the OSD up and down in the window. exit Exits the OSD menu.

  • Page 27: The Utilities Options

    The utilities Menu The utilities menu provides access to the following menus: The utilities menu includes the following options: Allows selection of the display time of the on-screen menu. Controls the translucence of the on-screen menu’s background. Allows selection of the languages used on all the on-screen menus.

  • Page 28: Technical Information

    4 Technical Information Preset Mode Timing Chart The screen image has been optimized during manufacture for the display modes listed below. Video signal: (IBM PC/AT) Dot X Line 720 x 400 640 x 480 800 x 600 1024 x 768 1280 x 1024 1440 x 900 Xerox©...

  • Page 29: Dvi Connector Pin Assignment

    DVI Connector PIN Assignment C1 C2 C3 C4 DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 shield DDC Clock DDC Data Analog Vertical Sync TMDS Data 1- TMDS Data 1+ TMDS Data 1/3 shield +5V Power DESCRIPTION Hot Plug Detect TMDS Data 0- TMDS Data 0+ TMDS Data 0/5 shield...

  • Page 30: D-Sub Connector Pin Assignment

    D-SUB Connector PIN Assignment Xerox© LCD Monitor User’s Manual Technical Information DESCRIPTION Green Blue Ground Self Test Red Ground Green Ground Blue Ground 5 VDC Ground Ground SDA (FOR DDC) H. Sync V. Sync SCL (FOR DDC)

  • Page 31: Plug And Play

    Plug and Play This monitor conforms to the VESA DDC (Display Data Channel) standard, which means that when it is used with a DDC compatible video card, the monitor is easier to set up. With VESA DDC 1/2B, when the monitor is turned on, it will automatically notify a windows 9X/2000/XP host computer of its scanning frequencies, capabilities and characteristics.

  • Page 32: Troubleshooting

    Troubleshooting Before consulting service personnel, check the following chart for a possible cause and solution to the trouble you are experiencing. Monitor will not turn on No picture • Make sure the power cord is plugged in. • Check the signal cable connecting the LCD monitor •...

  • Page 33: Specifications

    Input Connector Power Source Power Consumption Dimension Changes are periodically made to this specifications. Current specifications may also be obtained via the internet, www.xerox-displays.com or www.xerox-displays.info XM7-19w Panel Size 19”w TFT LCD Brightness Contrast Ratio 700:1 Dot Pitch 0.285mm x 0.285mm...

  • Page 34: Authorized Service Centers

    Hours: 8AM ~ 6PM - Central Time EUROPE AUTHORIZED SERVICE CENTER CONTACTS: XOAL BVBA RAKETSRAAT 100 B-1130 BRUSSEL BELGIUM E-EMAIL: rma@proview-repair.com http://www.proview-repair.com Hotline: 00800 00 88 77 66 Fax: +32-2-725-2513 Hours: 10AM ~ 12PM and 2PM ~ 5PM Monday through Friday...
