Harbor Freight Tools PREDATOR 59206 Owner's Manual & Safety Instructions

Harbor Freight Tools PREDATOR 59206 Owner's Manual & Safety Instructions

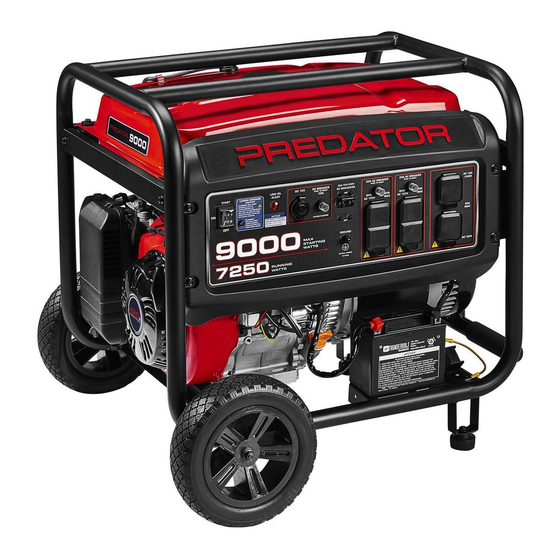

9000 watt portable generator

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
receipt in a safe and dry place for future reference.
9000 WATT
PORTABLE
GENERATOR
7250 RUNNING WATTS
9000 MAX STARTING WATTS
Using a generator indoors CAN
Using a generator indoors CAN
KILL YOU IN MINUTES.
KILL YOU IN MINUTES.
Generator exhaust contains
Generator exhaust contains
carbon monoxide. This is a poison
carbon monoxide. This is a poison
you cannot see or smell.
you cannot see or smell.
NEVER use inside
NEVER use inside
a home or garage,
a home or garage,
EVEN IF doors and
EVEN IF doors and
windows are open.
windows are open.
When unpacking, make sure that the product is intact
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
please call 1-888-866-5797 as soon as possible.
©
Copyright
©
2021 by Harbor Freight Tools
Copyright
2021 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
Email our engine support at: predator@harborfreight.com
Only use OUTSIDE
Only use OUTSIDE
and far away from
and far away from
windows, doors,
windows, doors,
and vents.
and vents.
®
®
. All rights reserved.
. All rights reserved.
Do not use in
trailers, truck
beds, or tents.
Read this material before using this product.
Read this material before using this product.
Failure to do so can result in serious injury.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
SAVE THIS MANUAL.
DANGER
Use at least 20 feet away from
people, animals, and structures
with exhaust pointed away.
20'
20'
20'
22e
22e
59206
20'
20'

Advertisement

Table of Contents
loading

Summary of Contents for Harbor Freight Tools PREDATOR 59206

  • Page 1 Failure to do so can result in serious injury. Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. any shape or form without the express written consent of Harbor Freight Tools.
  • Page 2: Important Safety Instructions

    Table of Contents Safety ............2 Maintenance ..........19 Setup ............9 Parts List and Diagram ......26 Specifications ..........7 Warranty ............ 30 Operation ........... 13 WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3: Operating Precautions

    Set up precautions (continued) 11. Improper connections to a building electrical system 12. Do not operate the Generator before grounding. can allow electrical current from the Generator The Generator must be earth-grounded to backfeed into the utility lines. Such backfeed in accordance with all relevant electrical may electrocute utility company workers or others codes and standards before operation.
  • Page 4 15. Do not attempt to connect or disconnect load connections while standing in 28. Use only accessories that are recommended by Harbor Freight Tools for your model. water, or on wet or soggy ground. Accessories that may be suitable for one 16.
  • Page 5 38. Do not operate the Generator with known 42. Use the correct generator for the application. leaks in the engine’s fuel system. Do not modify the generator or its engine, and do not use the generator for a 39. When spills of fuel or oil occur, they must be purpose for which it is not intended.
  • Page 6: Service Precautions

    1. Servicing of batteries are to be performed or information. If unreadable or missing, contact supervised by personnel knowledgeable of Harbor Freight Tools for a replacement. batteries and the required precautions. Keep unauthorized personnel away from batteries. 8. Have the equipment serviced by a qualified repair person using only identical replacement parts.
  • Page 7: Specifications

    Functional Description Specifications 120  /   2 40  V AC, 60  H z Output 60.4A at 120V; 30.2A at 240V 7,250 Running Watts (9,000 Max. Starting Watts) Battery needed for electric start 12  V , lead acid, 9Ah Minimum Generator (not included) Two 3-Prong, duplex NEMA #5-20 120 ...
  • Page 8 Components and Controls (continued) The following are descriptions of the controls on the power panel. Your Generator has sockets to power your products with circuit Circuit Breakers: The circuit breakers to protect the voltage flow. breaker protects the Generator from overloading. The rating of the breaker and the load it protects are marked near the breaker.
  • Page 9 Initial Tool Set Up/Assembly Read the ENTIRE IMpORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. TO pREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can start fires around dry vegetation.
  • Page 10 Grounding The Generator must be properly grounded in 1. Drive electrode at least 8 ft. accordance with all relevant electrical codes and vertically into the ground. standards before operation. In many locations, local a. If rock layer prevents vertical entry, drive at an code will not require this generator to be grounded angle not exceeding 45 degrees from vertical.
  • Page 11 High Altitude Operation Above 3000 feet WARNING! TO pREVENT SERIOUS INJURY FROM FIRE: Follow instructions in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke. NOTICE: Warranty void if necessary adjustments 8.
  • Page 12 High Altitude Kit parts List - A part Description Main Jet 3000-6000 ft. Main Jet 6000-8000 ft. Bolt Seal Fuel Cup Seal Page 12 For technical questions, please call 1-888-866-5797. ITEM 59206...
  • Page 13 Operating Instructions Read the ENTIRE IMpORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found, do not use tool until repaired Generator pre-Start Checks 1.
  • Page 14: Using The Generator

    Using the Generator Before Starting the Generator Engine 4. Plug in products. Before starting the engine: 5. When finished using the Generator, disconnect all electrical loads. a. Follow the Set Up Instructions to prepare the Generator. Note: Do not allow Generator to run b.
  • Page 15: Starting The Engine

    Starting the Engine 1. To start a cold engine, move the Choke to the START position. To restart a warm engine, leave the Choke in the RUN position. 2. Open the Fuel Valve. For MANUAL START For ELECTRIC START A. Turn the Engine Switch to ON. Turn the Engine Switch to START.
  • Page 16: Connecting Electrical Loads

    CARBON MONOXIDE SHUTOFF DANGER! TO pREVENT SERIOUS INJURY AND DEATH FROM CARBON MONOXIDE INHALATION: The Carbon Monoxide sensor is an additional layer of protection only. Do not use the Generator in any area or situation that will allow carbon monoxide to accumulate. •...
  • Page 17 Calculating Total Wattage of Devices Used with the Generator Before using the Generator, check that the products Wattage Estimate Charts you want to plug into the unit are below the rated and Note: Wattages listed below are estimates for that maximum wattage ratings of the Generator.
  • Page 18: Stopping The Engine In An Emergency

    Stopping the Engine in an Emergency 1. To stop the engine in an emergency, turn the Engine Switch off. START NOTICE: Generator shut-off under load may damage the Generator and attached equipment. Stopping the Engine Under Normal Conditions 1. Before turning off the Engine, turn off all electrical loads, RESET then unplug them.
  • Page 19: Cleaning, Maintenance, And Lubrication

    User-Maintenance Instructions procedures not specifically explained in this manual must be performed only by a qualified technician. TO pREVENT SERIOUS INJURY FROM ACCIDENTAL OpERATION: Turn the power Switch of the Generator to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
  • Page 20: Checking And Filling Fuel

    Checking and Filling Fuel Note: Do not use gasoline that has been stored in a WARNING! TO pREVENT SERIOUS metal fuel container or a dirty fuel container. It can INJURY FROM FIRE: cause particles to enter the carburetor, effecting Fill tank in a well-ventilated area away engine performance and/or causing damage.
  • Page 21: Spark Plug Maintenance

    Spark plug Maintenance 1. Disconnect spark plug cap from end of plug. 4. When installing a new spark plug, adjust Clean out debris from around spark plug. the plug’s gap to the specification on the Specifications chart. Do not pry against the 2.
  • Page 22: Long Term Storage

    Long-Term Storage When the equipment is to remain idle for longer than WARNING! To prevent serious 20 days, prepare the Engine for storage as follows: injury and fire, close the Fuel Valve before draining the Carburetor. 1. CLEANING: 3. LUBRICATION: Wait for Engine to cool, then clean Engine with dry cloth.
  • Page 23: Troubleshooting

    Troubleshooting problem possible Causes probable Solutions Engine will not start FUEL RELATED: FUEL RELATED: 1. No fuel in tank or fuel valve closed. 1. Fill fuel tank with fresh 87+ octane stabilizer treated unleaded gasoline and open fuel valve. Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).
  • Page 24 Troubleshooting (continued) problem possible Causes probable Solutions Engine stops when 1. Dirty air filter. 1. Clean or replace element. under heavy load 2. Engine running cold. 2. Allow engine to warm up prior to operating equipment. Engine misfires 1. Spark plug cap loose. 1.
  • Page 25 Troubleshooting (continued) problem possible Causes probable Solutions Product doesn’t 1. Product not plugged in properly. 1. Turn off and unplug the product, then have power. plug it back in again and turn on. 2. Circuit Breaker tripped. 2. Turn off and unplug product. Reset Circuit Breaker.
  • Page 26: Please Read The Following Carefully

    parts List and Diagram pLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
  • Page 27: Parts List

    parts List part Description part Description Cylinder Head Cover Bolt Clamp, Charge Coil Cylinder Head Cover Bolt Gasket Hex Socket Flange Face + Washer Subassembly Bolt - Small Series Cover Subassembly, Cylinder Head Flywheel Subassembly Cylinder Head Cover Gasket Impeller Tube, Breather Pulley,Starter Rotator, Valve...
  • Page 28 parts List (continued) part Description part Description Motor Assy. Bolt Hex Socket Flange Face Support, Atr Cleaner Bolt - Small Series Seat, Engine Frame Shroud, Motor Shock Absorption Block, Terminal Bolt Brush Subassembly, Carbon Nut With Flange Hex Socket Flange Face Cushion, Engine Frame Rear Bolt - Small Series Nut With Flange...
  • Page 29: Assembly Diagram

    Assembly Diagram ITEM 59206 For technical questions, please call 1-888-866-5797. Page 29...
  • Page 30 Limited 90 Day Warranty (Retail) Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
  • Page 31: Emissions Control System Warranty

    When going to the retail store or contacting product support, you must indicate the specific emissions control part or defect that you are claiming and the date this was originally purchased. The nearest Harbor Freight Tools retail store can be found on the internet at http://www.harborfreight.com.
  • Page 32 26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797...
