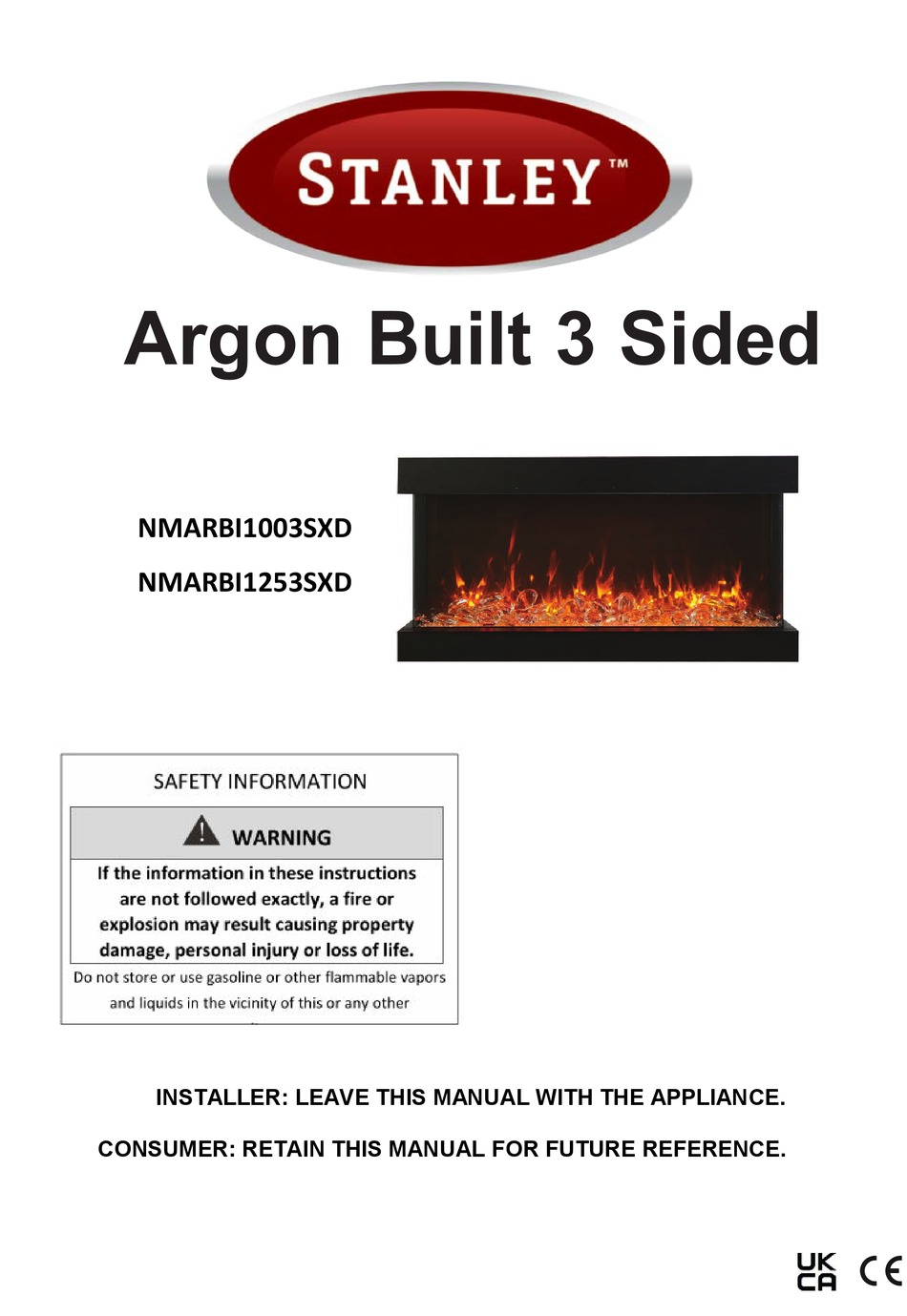

- Page 1 Argon Built 3 Sided NMARBI1003SXD NMARBI1253SXD ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Stanley product. IMPORTANT INSTRUCTIONS ............................UNPACKING AND TESTING THE APPLIANCE ...................... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use. -
Page 4: Unpacking And Testing The Appliance
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 240 Volt grounded outlet. Plan where to locate and frame the fireplace. This will save time and money later when you install the fireplace. -
Page 5: Nmarbi1003Sxd
NMARBI1003SXD Description Built-in Appliance Voltage 230V ac 50Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 43 1/4” or 1098 mm Appliance Height 26 5/8” or 676 mm Appliance Depth 14 1/4” or 362 mm 119.05lbs or 54kg Gross Weight Plug Location Left side Cord Length... -
Page 6: Nmarbi1253Sxd
Description Built-in Appliance Voltage 230V ac 50Hz Watts 1900W Max NO HEATER 29.3W MOTOR HEATER Appliance Width 53 1/4! or 1351 mm Appliance Height 26 5/8! or 676 mm Appliance Depth 14 1/4! or 362 mm Gross Weight 128.31lbs or 58.2kg Plug Location Left side Cord Length... - Page 7 The rough wall opening size of the fireplace: 2. Take off the fending bars and panels if you want to view the fire from three angles. fending panel ...
- Page 8 framing plate framing plate 5. Make an opening for the fireplace according to requested measurement. 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
-
Page 9: Installation
8. Decorate the plywood or drywall with glazed fending bar and panel. tile, wallpaper, etc. 3. After the fending panel is removed, screw back the bar. Installation for Front and Right Side Viewing 1. To install the fireplace where the left side is close to a wall, and you want to view the fire from front and right side, take off the fending panel on the right. - Page 10 5. Make an opening for the fireplace according 7. After checking that the fireplace operates to requested measurement. properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
- Page 11 Installation for Front and Left Side Viewing 1. Install the fireplace where the right side is close to a wall, and you want to view the fire from front and left side, take off the fending panel on the left. 4.
- Page 12 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs. To fix the bottom of the fireplace and the wall studs with the 8.
-
Page 13: Media Options
2. After the brackets are removed, the front glass panel will fall down automatically. ... -
Page 14: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper left hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION Press to turn on and off the fireplace. -
Page 15: Remote Control Operation
... - Page 16 AUTO means fireplace can automatically adjust to the temperature you set. When in AUTO, you can set the desired temperature with keys. You can switch temperature between Celsius and Fahrenheit with keys.When it is on Auto mode,fireplace operate at 1 00W. Press this button to adjust the speed of the flame.
- Page 17 When the 7 day timer’s set, the icon will be displayed on the LCD screen of the remote control. Press again to cancel the 7 da y timer and the icon will disappears. NOTE: If the 7 day timing and the general timing are set at the same time, the system will respond to an earlier shutdown time.
-
Page 18: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 19 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 20 NOTE: Turn off the flashing blue Wifi indicator light Touch the (power button) once, the blue light will stop flashing.
-
Page 21: Care And Maintenance
CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3. -
Page 22: Replacement Parts
REPLACEMENT PARTS Ref. Description Quantity NMARBI1003SXD NMARBI1253SXD Front Glass 10701281 10701216 Adjustable Screw 10201505 10201505 Front Glass Bracket 3123010 3123010 Tray Glass 10702200B 10702168B Back Glass 10701284B 10701219B Side Clear Glass 10701222 10701222 Qty Required Based LED Strip 601144 – Qty 6 601144 –... -
Page 23: Exploded View
EXPLODED VIEW... -
Page 24: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns off and Appliance has overheated and Turn off the main switch, allow... -
Page 25: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:... -
