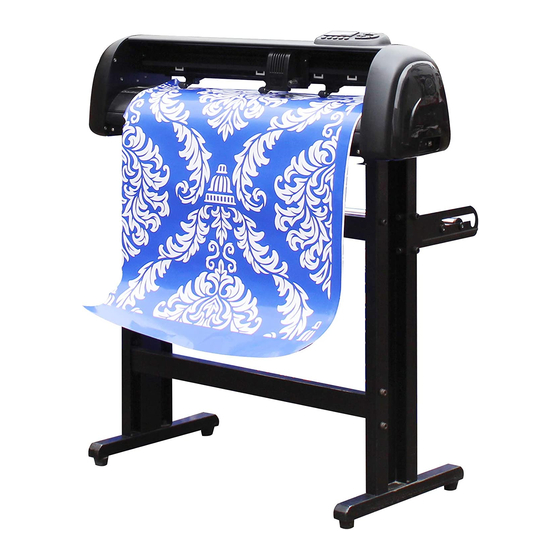

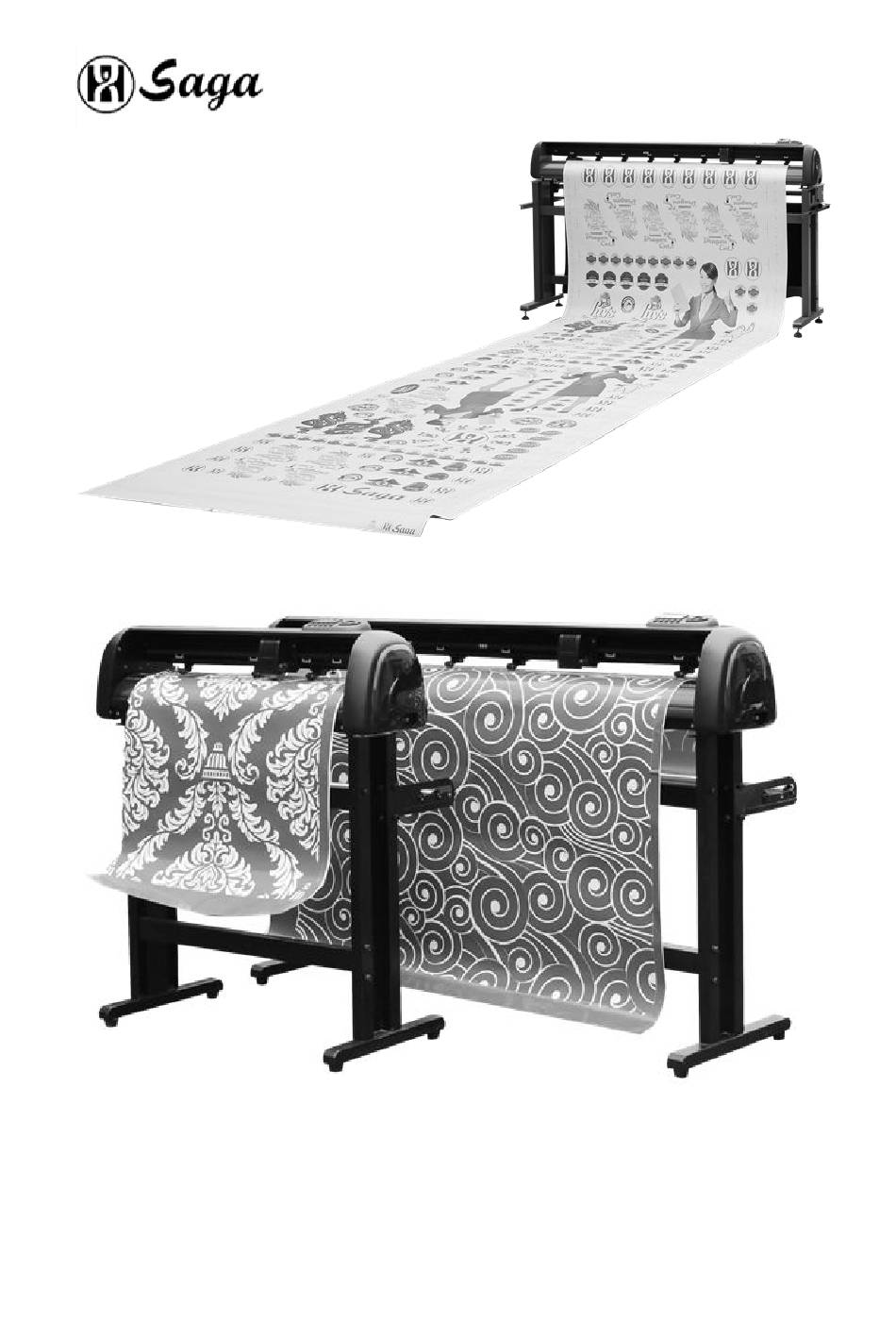

- Page 1 SAGA-420I SAGA-720I/IP SAGA-1350I/IP SAGA-420II/IIP SAGA-720II/IIP SAGA-1350II/IIP SAGA-1800II/IIP...
- Page 2 Specialized in developing,designing and manufacturing kinds of vinyl cutter Congratulations on purchasing saga cutting plotter NOTICE: We reserve the right to modify the information contained in this user manual at any time without prior notice ； un-authorized modification,copying distribution is prohibited.All comments,queries or suggestion concerning this manual please consult us.
- Page 3 Specialized in developing,designing and manufacturing kinds of vinyl cutter 2.What’s in the box Please check immediately to ensure that you have received the following articles: ●Cutting plotter ●Cutting plotter stand (dismantled) ●Power Lead ●USB connection Lead ●RS-232connection Lead ●Blade holder ●Pen holder and pen ●Safety fuse ●3 Drag blade...
- Page 4 Specialized in developing,designing and manufacturing kinds of vinyl cutter Step2 Place the stand beam upright on the T-stand and put the screws into the holes,but don’t tighten them at this step.Repeat the same steps with another stand beam. stand beam T-stand for left side T-stand for right side...
- Page 5 Specialized in developing,designing and manufacturing kinds of vinyl cutter Step4 Place two roll holders into the holes in the roll holder support. roll holder support 专业研发，设计，生产制造伺服，步进刻字机 Step5 How to install floor stand to machine.
- Page 6 Specialized in developing,designing and manufacturing kinds of vinyl cutter Take off the screw from bottom of machine,insert bolt to top of floor stand. 专业研发，设计，生产制造伺服，步进刻字机 专业研发，设计，生产制造伺服，步进刻字机 4.Blade installation Caution ： Adjustment depth knobs Don’t touch the tip of the blade with your fingers. Lock Notice The blade is a consumable item,and you’ll always...
- Page 7 Specialized in developing,designing and manufacturing kinds of vinyl cutter Step1/step2/step3 1.Push the blade to the bottom of the blade holder. 2.Adjust the blade tip to suitable length by rotating”Adjustment depth knobs”and then tighten the lock. 3.Press the push-pin to remove the blade form the blade holder when replacing blade.
- Page 8 Specialized in developing,designing and manufacturing kinds of vinyl cutter Step 4 Will seat in the carriage on the right side of the blade holder, and to fasten on blade holder. 专业研发，设计，生产制造伺服，步进刻字 1、Cutting plotter appearance 5.1 front 5.2 on the back...
- Page 9 Specialized in developing,designing and manufacturing kinds of vinyl cutter 5.3 left-cap 5.4 right-cap Power switch gorge line connector（RS-232） Power connector USB connector 专专业研发，设计，生产制造伺服，步进刻字 5.5Panel 5.6Panel function LCD screen：to display function and error messages. Reset：to restart Option：function keys. Set：to set up function，can change XP/YP,Tool offset ,sensitivity. Test：to perform cutting tests in different ways.
- Page 10 Specialized in developing,designing and manufacturing kinds of vinyl cutter 2.installing and testing 6.1 set cutting plotter ●Please insure that the machine on flat,solid ground ,keep using the environment clean and dry . ●The machine suitable for 110V/220V voltage，Please be sure to use and the corresponding voltage matching.
- Page 11 Specialized in developing,designing and manufacturing kinds of vinyl cutter 6.3 How to use software 6.3-1How use and install Artcut software ，Please refer to the artcut instructions. 6.3-2How to use and install Signcut software ， Please refer to the signcut software instructions. 6.3-3How to use and install Dradoncut software，Please refer to the Dragoncut software instructions.
- Page 12 Specialized in developing,designing and manufacturing kinds of vinyl cutter ●Switch the cutting plotter on,when the cutting plotter is switched on, the cutting plotter can be changed and modified as required. ●To change the zero point on,when the cutting plotter is switched on, the carriage can be changed and modified as required.
- Page 13 Specialized in developing,designing and manufacturing kinds of vinyl cutter XP/YP ： Don’t need to change. Sensitivity）： Is based on the reflective intensity of paper to adjust, the reflective strength is small value and he reflective weak is bigger value. Fan setting: ARMS machine use it ,can adjust the wind size of fan .
- Page 14 Specialized in developing,designing and manufacturing kinds of vinyl cutter 7.After cutting 7.1.Weeding Weeding refers to the process of removing the parts of the media you don’ require. We recommend using a scalpel or a spacial weeding tool for this job,to avoid damage to the adhesive surface.After weeding, You can use a transfer press to transfer flock and flex media to the textiles to be processed;apply...
- Page 15 Specialized in developing,designing and manufacturing kinds of vinyl cutter 9.Basic maintenance 9.1Cleaning the cutting plotter In order to keep the cutting plotter under good condition and best performance,you need to clean the machine properly and regularly. Precaution in cleaning Unplug the cutting plotter before cleaning.Never use solvents,abrasive cleaners or strong detergents for cleaning.They may damage surface of the cutting plotter and moving parts.
- Page 16 Daily maintenance of your cutting plotter is very import,Be sure to clean grit roller and pinch rollers regularly for better cutting accuracy and output quality. 10.Technical specifications cutting plotter 10.1 Servo ARMS machine technical specifications Item NO. SAGA-720IIP SAGA-1350IIP SAGA-1800IIP Max media width 720mm 1350mm 1800mm...
- Page 17 +5℃-+35℃ temperature Meas 66×33×32cm 97×34×43cm 160×34×41cm 207×36×51cm G.W/N.W 10/9kgs 27.5/25kgs 38/35kgs 52/47kgs 专业研发，设计，生产制造伺服，步进刻字 10.4 Stepper machine technical specifications Item NO. SAGA-420I SAGA-720I SAGA-1350I Max media width 420mm 720mm 1350mm Max cutting width 330mm 630mm 1200mm Accuracy +/-0,01m +/-0,01m +/-0,01m Connectors...
-
Page 18: Warm Prompt
Specialized in developing,designing and manufacturing kinds of vinyl cutter Warm prompt： If, in accordance with the instruction cannot complete the installation, testing, please contact your agent.
