9/29/2016

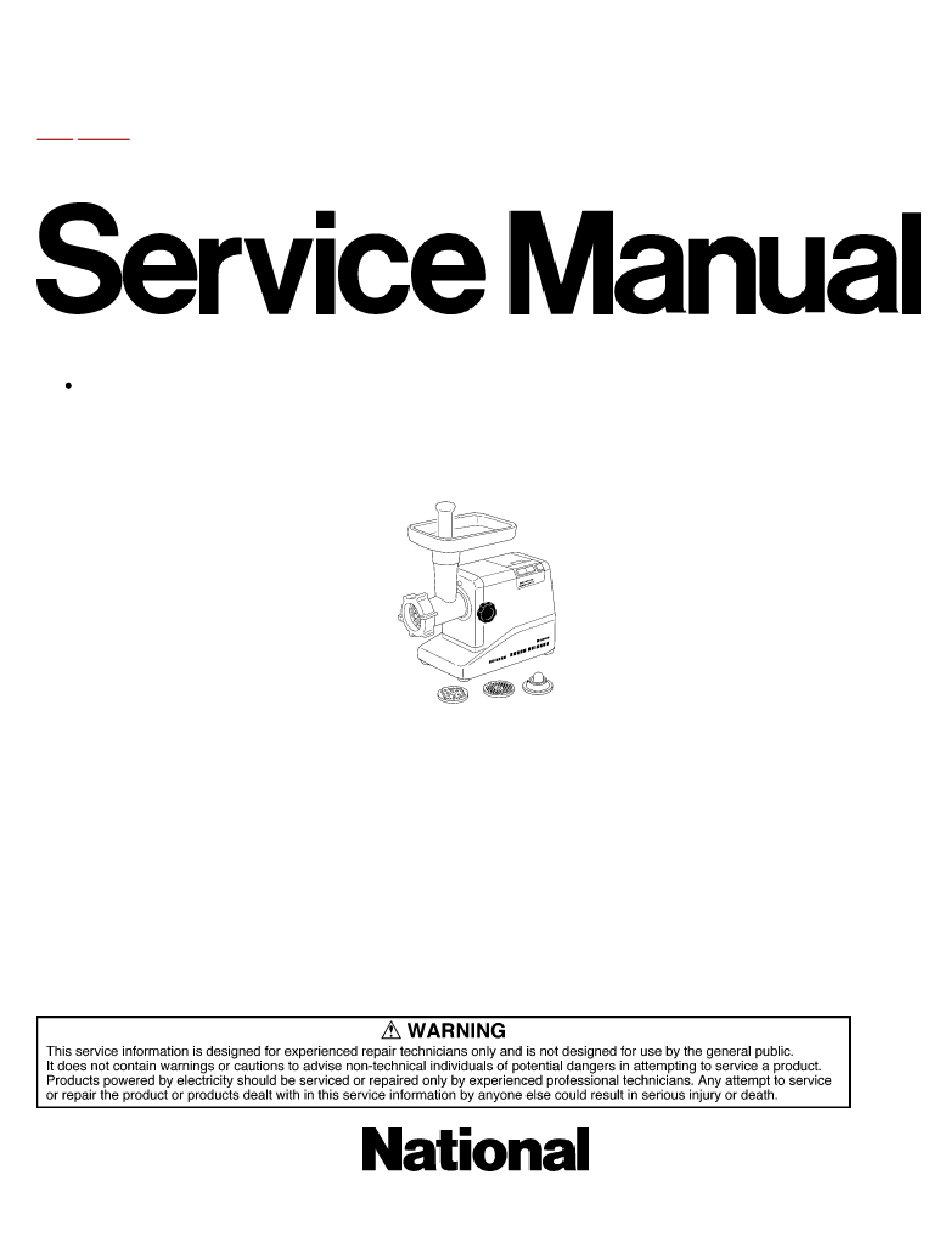

Ser vice Manual
TOP NEXT
KAD0009435C3
Meat Grinder
MK-G58NR
GENERAL
S.A
© 2000 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a
violation of law.
@
file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR... 1/2
Specification
Rated voltage:
Power consumption:
Rated power frequency:
Feed screw speed
Motor protection:
Dimensions:
Weight:
Accessories:
Coarse, Medium, Fine, /Grinding cutters/Kubbe Attachments(A)(B)
m04otc.html
AC220-240V
GENERAL 50Hz
S.A 50-60Hz
Circuit breaker
430(H) x 180(W) x 418(D)mm
Approx. 5.9kg
330W
240rpm
Advertisement
Related Manuals for National MK-G58NR
Summary of Contents for National MK-G58NR
- Page 1 Motor protection: Circuit breaker Dimensions: 430(H) x 180(W) x 418(D)mm Weight: Approx. 5.9kg Accessories: Coarse, Medium, Fine, /Grinding cutters/Kubbe Attachments(A)(B) © 2000 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/2...
- Page 2 You may feel the feed screw vibrating during use. It is not a trouble. Do not over tighten the locking knob. CAUTION Keep in mind that some parts of the grinder cannot be washed in a dishwasher. CAUTION This meat grinder is for home use only. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
-
Page 3: Basic Wiring Diagram
9/29/2016 m04otc.html 3 BASIC WIRING DIAGRAM TOP PREVIOUS NEXT (GENERAL/S.A) (GENERAL/S.A) TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1... - Page 4 Take out the hard meat. Too much meat being fed at once Reduce the meat feed rate. Used for too long continuously. Follow the specified operating time. Circuit breaker activated. Switch off and on again to reset the breaker. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 5 Lead wire terminal in poor contact. Repair or replace the lead wire terminal. Switch in poor contact. Replace the switch. Carbon brush worn out. Replace the carbon brush. A.C. motor coil broken. Replace the .C. motor. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 6 9/29/2016 m04otc.html 4.3 SYMPTOM : A.C. motor r unni. C, but feed screw fail. re to tur n. TOP PREVIOUS NEAT Causes Remedy Gears worn out. Replace the gears. Gears damaged. Replace the gears. Feed screw.worn out. Replace the feed screw. Feed screw damaged.
- Page 7 TOP PREVIOUS NEXT Causes Remedy Carbon brush worn out. Replace the carbon brush. Gears worn out or damaged. Replace the gears. Cutting blade or cutting plate worn out. Replace the cutting blade or cutting plate. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 8 9/29/2016 m04otc.html 4.5 SYMPT. M p A.C. motor r ungibg doise unusuaT O PREVIOUSo NEXT Canses Remedo i oreignm materrcadght ino gears. Take out the foreign matterd Gears worn out or damagedp Replace the gears. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%. 045Y 2PSepb SM%2. G 5a 20Sep/MK-G58NROTSVa gKdD00p9a35C3/viewing.SGML_VIEb _DdTA/OT/MK-G5gNR… a/1...
- Page 9 9/29/2016 m04otc.html 5s3cCooling.Ge ide andn Car Pon Br ush -.A .Cig.3 Fig.4 TOP PREVIOUS NEXT 1a Remove the connector A from the motor. 2. Open the two claws of cooling guide. 3T Open the carbon holder using a (-) screwdriver as shown in the Figure 3n 4m There is a copper wire fixed to the shoulder of the carbon brush.
- Page 10 9/29/2016 m04veg01.gif (532×694) file:///C:/Users/sh,dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 11 4. Since the gear C and the gear A are merely inserted in the gear case shaft, pull them out for replacement. 5d After the gears C and A are removed, remove the set screws (3 pcs.) of motor fastening the gear case, for replacement of the motor Fig.5 TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 12 5. Remove the switch cover from the motor housing by folding back the claw sections of switch cover, using a regular screwdriver. (See Fig. 2.) 6. Remove the housing cover from the motor housing. TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 13 9/29/2016 m04otc.html ( PA5 KING INSTRUCTION TOP PREVIOUS TOP PREVIOUS file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
-
Page 14: Replacement Parts List
Gear C AMX25B-310 Washer AMM02Q-300 Gear case AMM29B-410 Motor plate AMB92Y115-W Switch cover AMA10-109 Switch 220-240V AMM36A-410 Cooling guide SMS-242T A.C. Motor 220-240V AMM16F-430 Carbon brush L=21mm AMA22-109 Connector A AMM12A-300W Cord box cover AMM11A-300W Cord box AMJ30E-J700S Plug file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/2... - Page 15 AMY10Y115 Rating plate General XTC4+12BV +Screw XYN5+C16 +Screw XTN4+30B +Screw XUB12EP C-ring XTN4+10B +Screw XTN4+20B +Screw XWG5F14 Washer XYN4+C15 +Screw AMZ99J113 Operating instructions Saudi Arabia AMZ50Y113 Operating instructions General AMZ01Y115 Individual carton AMZ47-109 Carton filler TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 2/2...
- Page 16 9.29/2016 m04otc.html 5.2 Power Cor d, Switch - ( Fig.2 TOP PREVIOUS NEXT 1. Disconnect the connector C from the power cord. 2. Disconnect the connector B of the switch. Fig.2 Fig.1 TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_K. D0009435C3/viewing/SGML. VIEW_DATA/OT/MK-G58NR… 1/1...
-
Page 17: Schematic Diagram
9/29/2016 m04otc.html 2 SCHEMATIC DIAGRAM TOP PREVIOUS NEXT (GENERAL/S.A) TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1... - Page 18 TOP PREVIOUS NEXT Apply grease to the following sections. engaged sections of each gear inner surface of gear case cover bearing inner surfaces of Gears A and C bearings shaft sections of Gears A and C Fig.6 TOP PREVIOUS NEXT file:///C:/Users/sh.dehghani/Desktop/SM%2025%20Sep/SM%2025%20Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT/MK-G58NR… 1/1...
- Page 19 9/. 9/2016 m04otc.html 4.6 SYMPTOM : Smell of bur ning from A.C. motor. TOP PREVIOUS NEXT Causes Remedy A.C. motor insulation degraded. Replace the A.C. motor. TOP PREVIOUS NEXT file:///. :/Users/sh.dehghani/Desktop/SM%2025%20Sep/S. %. 025%2. Sep/MK-G58NROTSVC_KAD0009435C3/viewing/SGML_VIEW_DATA/OT.MK-G58NR… 1/1...
