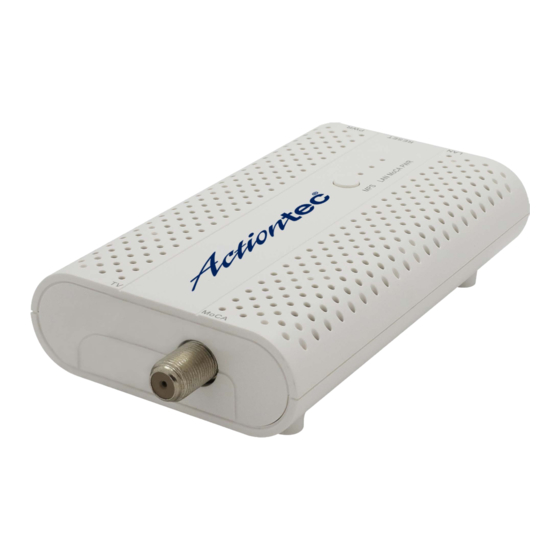

- Page 1 E C B 6 2 5 0 A Quick Start Guide 1GbE / MoCA 2.5 Extender This Quick Start Guide will walk you through the easy steps to connect your MoCA 2.5 Extender.
- Page 2 Step 1: Connect to your Modem/Router Get one MoCA 2.5 Extender. Connect one Ethernet Cable from the Extender to the Modem/Router. Connect one Splitter to the Coax Cable coming from the Coax Outlet on the wall. Connect one Coax Cable from the Splitter to the Coax In port on the Extender.
- Page 3 Step 2: Connect to your Device Get one MoCA 2.5 Extender. Locate the device or access point (laptop, etc.) that needs to connect to the Internet. Connect one Ethernet Cable from the Extender to the Device. Connect one Splitter to the Coax Cable coming from the Coax Outlet on the wall.
- Page 4 ©2022 Actiontec Electronics, Inc. Actiontec, Creative Solutions for the Digital Life, and the Actiontec logo are registered trademarks or trademarks of Actiontec Electronics, Inc., in the U.S. or other countries. All other names are properties of their respective owners. Product photo may differ from actual product.
