Please read this manual
before using
Thank you for purchasing a MUTOH product.
This manual explains the steps for unpacking,
mounting and basic installation before using the

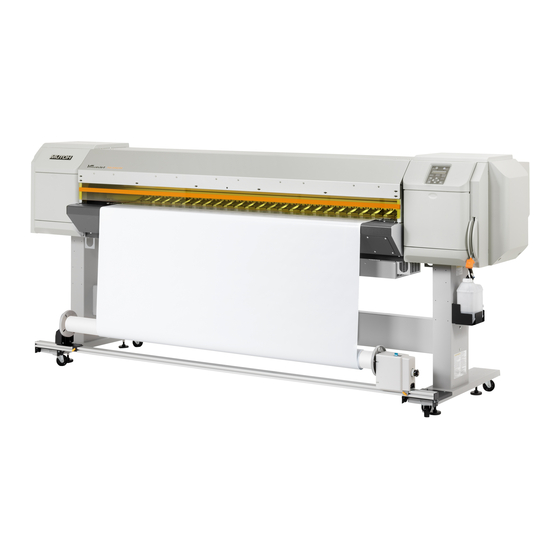

MUTOH Full-color inkjet printer VJ-1638UH MarkⅡ.
This manual is intended for owners, installers, and
users of this product.
Understand the contents and instructions in this
manual before installing this product.
Installation flow chart
The broad steps for installation are shown below.
There are instructions for each section beginning on
the next page.
1 Unpacking boxes
1.1 Unpacking the printer box
1.2 Unpacking the stand box and
the Media-feed table F and R
boxes
2 Confirming bundled items
2.1 Items in the printer box
2.2 Items in the accessory box
2.3 Items in the stand box
2.4 Items in the Media-feed table
(optional) box
VJ-1638UH MarkⅡ INSTALLATION MANUAL
3 Assembling
3.1 Assembling the stand
3.2 Attaching the stand
3.3 Detaching fastening materials
3.4 Assembling the Media-feed table
(optional)
4 Installation
4.1 Installation environment
4.2 Installation procedure
5 Connecting the power cable
1
6 Turning the power ON/OFF
7 Product activation
8 Initial ink charging
8.1 Installing the cleaning wiper
8.2 Initial ink charging
9 Loading media
9.1 Loading rigid media
9.2 Loading roll media
10 Checking the print condition
11 Manual composition
VJ1638UH2E-I-02
Advertisement
Table of Contents
Related Manuals for MUTOH VJ-1638UH Mark II
Summary of Contents for MUTOH VJ-1638UH Mark II
- Page 1 Please read this manual before using 3 Assembling 6 Turning the power ON/OFF Thank you for purchasing a MUTOH product. 3.1 Assembling the stand This manual explains the steps for unpacking, mounting and basic installation before using the 3.2 Attaching the stand MUTOH Full-color inkjet printer VJ-1638UH MarkⅡ.
- Page 2 This printer package consists of four boxes: Main body, Stand, and Media-feed table (two separate NOTE optional boxes). If any items are damaged or missing, contact MUTOH local dealer. CAUTION Make sure to unpack this product with four persons or more. Items in the printer box While taking out the printer from the box, make sure to remove the vinyl sheet.
-
Page 3: Assembling The Stand
VJ-1638UH MarkⅡ INSTALLATION MANUAL 4. Fasten the connector bar to the left stand in 3. Remove the two transfer stays and fasten the 3 Assembling the same way as in Step 3. printer to the stand using eight butterfly screws. This section explains how to assemble the printer. - Page 4 VJ-1638UH MarkⅡ INSTALLATION MANUAL 3.4 Assembling the media-feed 5. Remove a screw from the head unit fastening 7. Check that the two-way valve of the drain tube is material (metal plate) and remove the material. closed. Hook the two-way valve on the clamp, table and the media support bar then close the clamp cover.
-
Page 5: Installation Environment
VJ-1638UH MarkⅡ INSTALLATION MANUAL 4 Installation 4. Insert the U-shaped part of the media support bar (2) When not using the media-feed table Procedures and environment for installing this product into the frame. are explained. 4.1 Installation environment 1,000mm Install this product to the appropriate place with reference to the following. -
Page 6: Front Side
VJ-1638UH MarkⅡ INSTALLATION MANUAL 8. Turn the screw of media-feed table’s caster (the 4.2.2 Installing the media-feed tables 4. Insert the positioning guide of media-feed table one further from the printer) with a spanner, and into the square hole of Paper guide R. (optional) adjust the slant. -
Page 7: Power Cable Connection
NOTE The earth might not work if a plastic Name Name pipe is connected in the middle of the Contact your local MUTOH dealer in case of Level Platen power cable damage. metal pipe. This product is also designed for IT power 6. -
Page 8: Turning The Power On/Off
This printer requires activation when the power is turned ON for the first time. When “Activation required” is displayed on the Operation panel, refer to “Product activation guide”* to perform activation. *Please download the “Product Activation Guide” from the MUTOH Club below. https://club.mutoh.co.jp/mutoh/guser VJ1638UH2E-I-02... - Page 9 VJ-1638UH MarkⅡ INSTALLATION MANUAL 4. Press the [Enter] key on Operation panel. 8.2 Initial ink charging Initial ink charging Follow the procedure below to perform initial ink 8.1 Installing the cleaning wiper charging. 1. Turn the printer ON. • “Start Ink Charge -> E” is displayed on Operation •...
-
Page 10: Loading Rigid Media
(1) When using 4-color set 3. Raise Front media loading lever (lower Rear media print result. loading lever). 4 colors 4 colors If there is still no improvement, contact your local MUTOH dealer. Name Name Front media loading Name Name Rear media loading lever... - Page 11 VJ-1638UH MarkⅡ INSTALLATION MANUAL 5. Loosen the rail retaining screw on Media-feed 9. If the right edge of the roll media goes further 12. Close Front cover. table (rear side), and widen the rails to the sides so right from the loading mark when seen from that you can place the rigid media.
-
Page 12: Loading Roll Media
VJ-1638UH MarkⅡ INSTALLATION MANUAL 4. Set the roll media to the roll media holder (Right) 3. Raise Front media loading lever (lower Rear media NOTE loading lever). and fixed the fixing lever. After fixing the caster height, even when Media-feed table is removed, you do not need to adjust Media-feed table’s height in the following situation. -
Page 13: Manual Composition
UV emitted from this product. Eye or skin irritation may result from The Operation Manual explains the basic exposure. installation, daily use and applicable functions. Use appropriate shielding. *Please download from the MUTOH Club: https://club.mutoh.co.jp/mutoh/guser Name Name Front media loading Rear media loading lever... - Page 14 VJ-1638UH MarkⅡ INSTALLATION MANUAL MEMO VJ1638UH2E-I-02...
