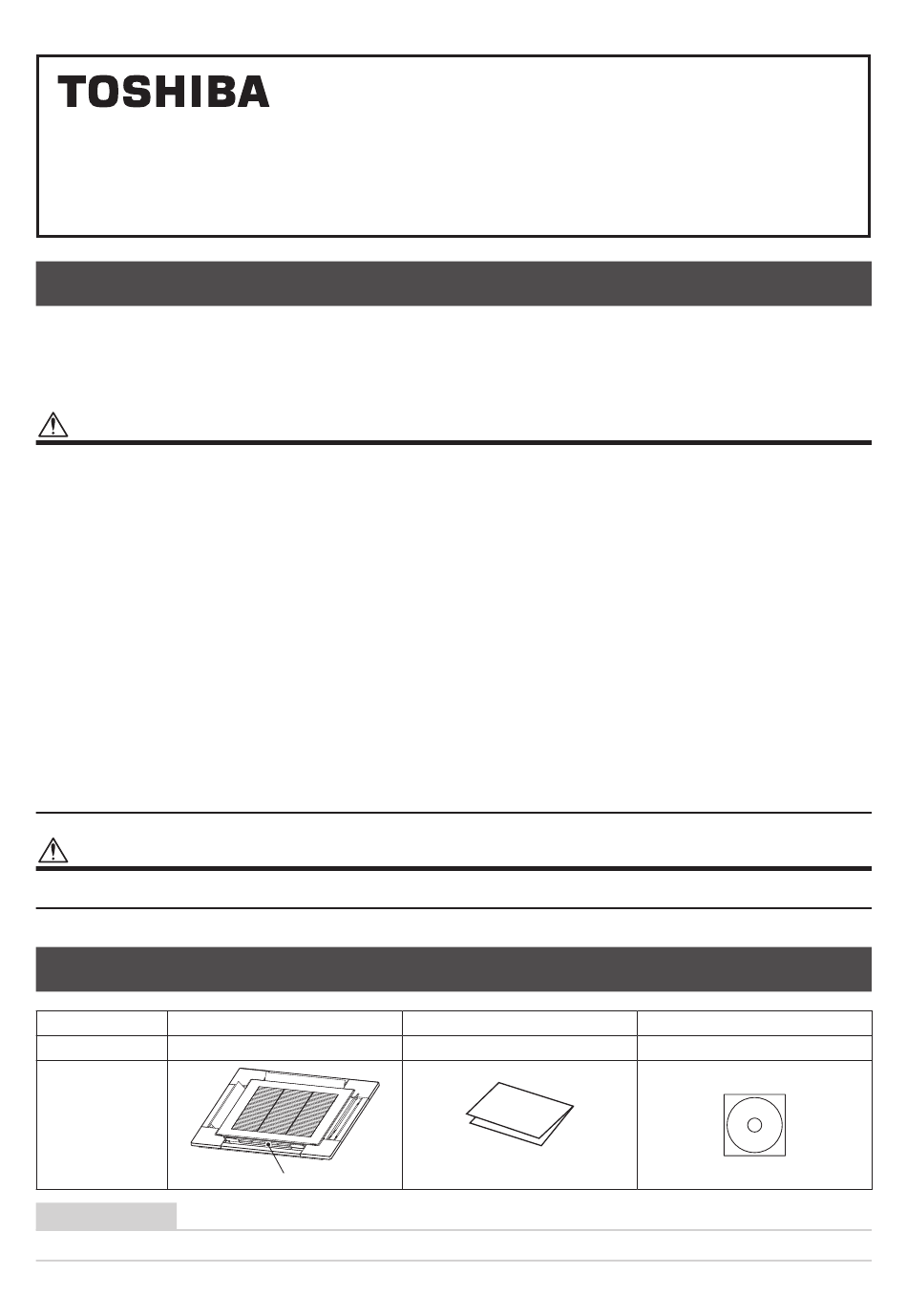

Ceiling panel
(For 4-Way Cassette type)
Model : RBC-U33P-E
• The product and this manual are provided with important safety notices to ensure safe use and protect the user and
other people from hazards and preclude damage to property.
Be sure that you fully understand the following contents (expressions and graphic symbols) and read this manual
carefully. Always observe the precautions.
WARNING
• Ask an authorized dealer or qualified installation professional to install the ceiling panel.
Inappropriate installation may result in water leakage, electric shock or fire if you install it by yourself.
• Carry out an installation work securely according to this Installation Manual.
Inappropriate installation may result in water leakage, electric shock or fire.
• Attach the ceiling panel on a ceiling that withstands the weight of the ceiling panel.
Insufficient strength may cause a fall of the unit, which may result in injury.
• Electrical work must be performed by a qualified electrician in accordance with the Installation Manual.
Make sure the air conditioner uses an exclusive power supply.
The capacity shortage of the power circuit or improper electrical work may result in electric shock or fire.
• Connect the specified wires firmly and clamp them securely so that external force applied to the wires does
not affect the connector pins.
Improper wire connection or clamping may result in fire or malfunction.
• Be sure to connect earth wire. (grounding work)
Do not connect the earth wire to a gas pipe, water pipe, lightning conductor, or a telephone earth wire.
Incomplete earthing may result in electric shock.
• Never modify or repair the product.
Incomplete modification or repair may result in electric shock or fire.
CAUTION
• Wear heavy work gloves during the installation work to avoid injury.
Part name
Quantity
Shape
REQUIREMENT
Do not apply excessive force to the louver, as it may cause a malfunction.
INSTALLATION MANUAL
Precautions for safety
Components
Ceiling panel
1
This manual
Louver
Installation manual
1
- 1 -
(English)
CD-ROM
1
Advertisement
Related Manuals for Toshiba RBC-U33P-E
Summary of Contents for Toshiba RBC-U33P-E
- Page 1 INSTALLATION MANUAL Ceiling panel (For 4-Way Cassette type) Model : RBC-U33P-E Precautions for safety • The product and this manual are provided with important safety notices to ensure safe use and protect the user and other people from hazards and preclude damage to property.
-
Page 2: Preparation Before Installing The Ceiling Panel
1. Preparation Before Installing the Ceiling Panel Position check of indoor unit 1. Confirm the position of the indoor unit according to the Unit: mm installation Manual. Indoor unit 2. Check whether size of the ceiling opening hole is in the following range or not. - Page 3 Positioning of the panel fi xed implement 1. After removing the adjust corner cap, check that the panel fixed implement (bracket) remains open as shown in (Fig. 1). 2. Slide the bracket to remain it open because the ceiling panel can not be installed in the indoor unit if the bracket is closed (Fig.
- Page 4 CAUTION • As shown in the following fi gure, a trouble may becaused if the screws are incompletely tightened. • The height of the indoor unit with ceiling panel can be adjusted through the hole in the ceiling panel corner if Air leak doing so does not affect the horizontal level and drain pipe of the indoor unit.
- Page 5 Installation of adjust corner cap / air inlet grille • This ceiling panel can be installed from anyway of 4 directions by turning the air inlet grille. Change the direction as shown in figure on the customer’s demand for a company name on the corner cap or according to the direction matching of the air inlet grille when multiple units are installed.
- Page 6 Installation of air inlet grille • Install the air inlet grille in the reverse procedure of the removal. • Be sure not to pinch the louver motor wiring to install the air inlet grille. • Attach a Safety strap hook of the air inlet grille to the ceiling panel. Hook hole of ceiling panel Safety strap hook...
-
Page 7: Other Descriptions
4. Other descriptions Check after installation • Check again there is no clearance between the indoor unit and the ceiling panel, and between the ceiling panel and the ceiling surface. * A clearance causes water leak or dewing. • Check the cables are connected surely. * Incomplete connection causes such a trouble as the louver does not work.
