LevelOne WBR-3405TX User Manual

11g wireless ap router
Hide thumbs Also See for WBR-3405TX:
Table of Contents

Advertisement

Quick Links

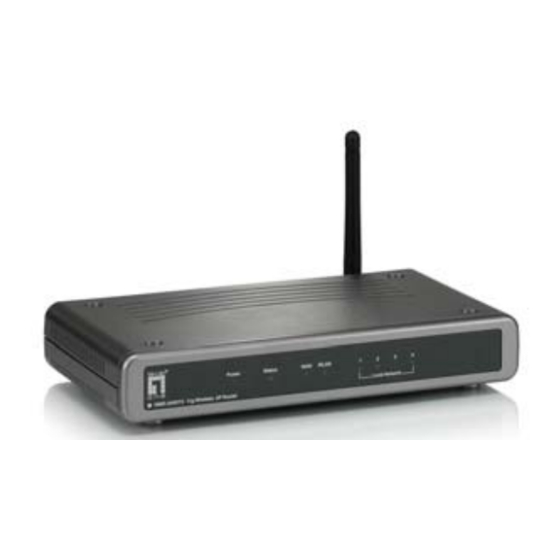

LevelOne
WBR-3405TX
11g Wireless AP Router
User`s Manual

Advertisement

Table of Contents
loading

Related Manuals for LevelOne WBR-3405TX

Summary of Contents for LevelOne WBR-3405TX

  • Page 1 LevelOne WBR-3405TX 11g Wireless AP Router User`s Manual...

  • Page 2: Table Of Contents

    Overview...4 Product Feature ...4 System Requirements...4 Applications ...4 Getting Start ...5 Know the 11g Wireless Router-WBR-3405TX ...5 Connect to the 11g Wireless Router...6 2.2.1 Access the Setting Menu...6 2.2.2 Quick Setup with Wizard ...8 Configuration ...15 LAN Setting ...15 3.1.1 LAN &...
  • Page 3 3.5.4 DMZ...42 3.5.5 Firewall Rule...43 Management...46 3.6.1 SNMP...46 3.6.2 Remote Management ...47 Tools...48 3.7.1 Restart ...48 3.7.2 Settings...49 3.7.3 Firmware ...50 3.7.4 Ping Test...51 Glossary ...51...

  • Page 4: Overview

    1. Overview Congratulations on the purchase of your new LevelOne WBR-3405TX, 11g Wireless AP Router. The LevelOne 11g Wireless AP Router is a multi-function device. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

  • Page 5: Getting Start

    ● Enables remote access to corporate network information, for example e-mail and the company home page 2. Getting Start 2.1 Know the 11g Wireless Router-WBR-3405TX Ports:...

  • Page 6: Connect To The 11G Wireless Router

    LEDs: Status Description Indicates proper connection to power supply. Power The unit is not receiving power Indicates that the device is Status connected to the WLAN. Indicates connection to the WAN port Blinking Data transmission. Link is established WLAN Blinking Packet transmit or receive activity —...
  • Page 7 Now, the main menu screen is popup.

  • Page 8: Quick Setup With Wizard

    2.2.2 Quick Setup with Wizard Setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your wireless router configuration ready to run in 6 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear.
  • Page 9 Step2: Choose your time zone Select your time zone from the drop down list. Please click “Next” to continue. Step 3: Set LAN connection and DHCP server Set your IP address and mask. The default IP is 192.168.1.1. If you like to enable DHCP, please click “Enabled”.
  • Page 10 Step 4: Set Internet connection Select how the router will set up the Internet connection: Obtained IP automatically; Fixed IP address; PPPoE to obtain IP automatically; PPPoE with a fixed IP address; PPTP. Obtain IP automatically (DHCP client): If you have enabled DHCP server, choose "Obtain IP automatically (DHCP client)" to have the router assign IP addresses automatically.
  • Page 11 PPPoE to obtain IP automatically:...
  • Page 12 PPPoE with a fixed IP address:...
  • Page 13 PPTP:...
  • Page 14 Step 5: Set Wireless LAN connection Click “enable” to enable wireless LAN. If you enable the wireless LAN, type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting communication to the router. Step 6: Restart The Setup wizard is now completed.

  • Page 15: Configuration

    3. Configuration 3.1 LAN Setting The screen enables you to configure the LAN & DHCP Server, set WAN parameters, create Administrator and User passwords, and set the local time, time zone, and dynamic DNS. 3.1.1 LAN & DHCP Server This page enables you to set LAN and DHCP properties, such as the host name, IP address, subnet mask, and domain name.

  • Page 16: Wan

    mask is 255.255.255.0. DHCP Server: Enables the DHCP server to allow the router to automatically assign IP addresses to devices connecting to the LAN. DHCP is enabled by default. All DHCP client computers are listed in the table at the bottom of the screen, providing the host name, IP address, and MAC address of the client.
  • Page 17 Connection Type: Select the connection type, either DHCP client, Fixed IP or PPPoE from the drop-down list. WAN IP: Select whether you want to specify an IP address manually, or want DHCP to obtain an IP address automatically. When Specify IP is selected, type the IP address, subnet mask, and default gateway in the text boxes.

  • Page 18: Password

    3.1.3 Password This screen enables you to set administrative and user passwords. These passwords are used to gain access to the router interface. Administrator: Type the password the Administrator will use to log in to the system. The password must be typed again for confirmation. 3.1.4 Time This screen enables you to set the time and date for the router's real-time clock, select...
  • Page 19 Local Time: Displays the local time and date. Time Zone: Select your time zone from the drop-down list. Daylight Saving: Enables you to enable or disable daylight saving time. When enabled, select the start and end date for daylight saving time.

  • Page 20: Dynamic Dns

    3.1.5 Dynamic DNS This allows you to set the DNS server. DDNS: Enable or disable DDNS setting by clicking the blanks. Server Address: Entering the Server Address. For example, if you would like to apply the address at dyndns.org, please entering “members.dyndns.org”.. Host Name: Entering the address you applied before.

  • Page 21: Wireless

    Wireless This section enables you to set wireless communications parameters for the router's wireless LAN feature. 3.2.1 Basic This page allow you to enable and disable the wireless LAN function, create a SSID, and select the channel for wireless communications. Enable/Disable: Enables and disables wireless LAN via the router.

  • Page 22: Authentication

    3.2.2 Authentication This screen enables you to set authentication type for secure wireless communications. Open System allows public access to the router via wireless communications. Shared Key requires the user to set a WEP key to exchange data with other wireless clients that have the same WEP key.

  • Page 24: 802.1X

    3.2.3 802.1X There are three essential components to the 802.1x infrastructure: (1) Supplicant, (2) Authenticator and (3) Server. The Router serves as an Authenticator, and the EAP methods used must be supported by the backend Radius Server. The 802.1x security supports both MD5 and TLS Extensive Authentication Protocol (EAP).

  • Page 25: Wpa-Psk

    Router currently will be disconnected. The wireless clients must be configured manually to authenticate themselves with the Radius server to be reconnected. 3.2.4 WPA-PSK Allows user to set WPA-PSK for security reason. Set the devices in the same Passphrase will block undesired connection to your WBR-3405TX.

  • Page 26: Advanced

    3.3 Advanced This screen enables you to configure advanced wireless functions. Beacon Interval: Type the beacon interval in the text box. You can specify a value from 1 to 1000. The default beacon interval is 100. RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This value stabilizes data flow.

  • Page 27: Status

    3.3 Status This selection enables you to view the status of the router LAN, WAN connections, and view logs and statistics pertaining to connections and packet transfers. 3.3.1 Device Information This screen enables you to view the router LAN, Wireless and WAN configuration. Firmware Version: Displays the latest build of the router firmware interface.

  • Page 28: Log

    status, IP address, subnet mask, default gateway, and DNS. Click DHCP Release to release all IP addresses assigned to client stations connected to the WAN via the router. Click DHCP Renew to reassign IP addresses to client stations connected to the WAN. 3.3.2 This screen enables you to view a running log of router system statistics, events, and activities.

  • Page 29: Log Setting

    Note: Displays the IP address of the communication 3.3.3 Log Setting This screen enables you to set router logging parameters. SMTP Server: Type the SMTP server address for the email that the log will be sent to in the next field. Send to: Type an email address for the log to be sent to.

  • Page 30: Statistic

    3.3.4 Statistic This screen displays a table that shows the rate of packet transmission via the router LAN and WAN ports (in bytes per second). Click Reset to erase all statistics and begin logging statistics again.

  • Page 31: Wireless

    3.3.5 Wireless This screen enables you to view information about wireless devices that are connected to the wireless router. Connected Time: Displays how long the wireless device has been connected to the LAN via the router. MAC Address: Displays the devices wireless LAN interface MAC address.

  • Page 32: Routing

    3.4 Routing This selection enables you to set how the router forwards data: Static and Dynamic. Routing Table enables you to view the information created by the router that displays the network interconnection topology. 3.4.1 Static It enables you to set parameters by which the router forwards data to its destination if your network has a static IP address.

  • Page 33: Dynamic

    Add: Click to add the configuration to the static IP address table at the bottom of the page. Update: Select one of the entries in the static IP address table at the bottom of the page and, after changing parameters, click Update to confirm the changes. Delete: Select one of the entries in the static IP address table at the bottom of the page and click Delete to remove the entry.

  • Page 34: Routing Table

    3.4.3 Routing Table This screen enables you to view the routing table for the router. The routing table is a database created by the router that displays the network interconnection topology. Network Address: Displays the network IP address of the connected node. Network Mask: Displays the network (subnet) mask of the connected node.

  • Page 35: Filters

    3.5.1 Filters Using filters to deny or allow the users to access. Five types of filters to select: MAC, URL blocking, IP, Protocol filter and Domain blocking. MAC Filters: MAC Filter: Enables you to allow or deny Internet access to users within the LAN based upon the MAC address of their network interface.

  • Page 36: Url Blocking

    MAC Address: Type the MAC address of the user's network interface. Add: Click to add the user to the list at the bottom of the page. Update: Click to update information for the user, if you have changed any of the fields.
  • Page 37 IP Filters: This screen enables you to define a minimum and maximum IP address range filter; all IP addresses falling in the range are not allowed Internet access. The IP filter profiles are listed in the table at the bottom of the page. (Note: Click anywhere in the item.
  • Page 38 Domain Blocking: You could specify the domains which allow users to access or deny by clicking one of the two items. Also, add the specified domains in the text box.
  • Page 39 Protocol Filters: This screen enables you to allow and deny access based upon a communications protocol list you create. The protocol filter profiles are listed in the table at the bottom of the page. Note: When selecting items in the table at the bottom, click anywhere in the item. The line is selected, and the fields automatically load the item's parameters, which you can edit:...

  • Page 40: Virtual Server

    3.5.2 Virtual Server This screen enables you to create a virtual server via the router. If the router is set as a virtual server, remote users requesting Web or FTP services through the WAN are directed to local servers in the LAN. The router redirects the request via the protocol and port numbers to the correct LAN server.

  • Page 41: Special Ap

    Update: Click to update information for the virtual server if you have selected a list item and have made changes. Delete: Select a list item and click Delete to remove the item from the list. New: Click New to erase all fields and enter new information. 3.5.3 Special AP This screen enables you to specify special applications, such as games, that require...

  • Page 42: Dmz

    ● Protocol: Select the protocol (TCP, UDP, or ICMP) that can be used to access the application. ● Port Range: Type the port range that can be used to access the application in the text boxes. Incoming: Defines which incoming communications users are permitted to connect with.

  • Page 43: Firewall Rule

    Enable: Click to enable or disable the DMZ. DMZ Host IP: Type a host IP address for the DMZ. The computer with this IP address acts as a DMZ host with unlimited Internet access. Apply: Click to save the settings. 3.5.5 Firewall Rule This screen enables you to set up the firewall.
  • Page 44 Enable: Click to enable or disable the firewall rule profile. Name: Type a descriptive name for the firewall rule profile. Action: Select whether to allow or deny packets that conform to the rule. Inactive Timeout: Type the number of seconds of network inactivity that elapses before the router refuses the incoming packet.
  • Page 45 Delete: Select a list item and click Delete to remove the item from the list. New: Click New to erase all fields and enter new information. Priority Up: Select a rule from the list and click Priority Up to increase the priority of the rule.

  • Page 46: Management

    3.6 Management Management enables you to set up SNMP and Remote Management feature. 3.6.1 SNMP This screen enables you to configure SNMP. Enabled/Disabled: Click to enable or disable SNMP. System Name: Displays the name given to the router. System Location: Displays the location of the router (normally, the DNS name). System Contact: Displays the contact information for the person responsible for the router.

  • Page 47: Remote Management

    3.6.2 Remote Management This screen enables you to set up remote management. Using remote management, the router can be configured through the WAN via a Web browser. A user name and password are required to perform remote management. HTTP: Enables you to set up HTTP access for remote management. ●...

  • Page 48: Tools

    IPSec: Enables you to set up IPSec access for remote management. IDENT: Default is closed. This enables you to set port 113 stealth. 3.7 Tools This page enables you to restart the system, save and load different settings as profiles, restore factory default settings, run a setup wizard to configure router settings, upgrade the firmware, and ping remote IP addresses.

  • Page 49: Settings

    3.7.2 Settings This screen enables you to save your settings as a profile and load profiles for different circumstances. You can also load the factory default settings, and run a setup wizard to configure the router and router interface. Save Settings: Click to save the current configuration as a profile that you can load when necessary.

  • Page 50: Firmware

    3.7.3 Firmware This screen enables you to keep the router firmware up to date. Please follow the below instructions: 1. Download the latest firmware from the manufacturer's Web site, and save it to your disk. 2. Click Browse and go to the location of the downloaded firmware file. Select the file and click Upgrade to update the firmware to the latest release...

  • Page 51: Ping Test

    3.7.4 Ping Test The ping test enables you to determine whether an IP address or host is present on the Internet. Type the host name or IP address in the text box and click Ping. 4. Glossary Access Point An interview networking device that seamlessly connects wired and wireless networks Authentication Authentication refers to the verification of a transmitted message’s integrity.
  • Page 52 DHCP DHCP (Dynamic Host Configuration Protocol) software automatically assigns IP addresses to client stations logging onto a TCP/IP network, which eliminates the need to manually assign permanent IP addresses. DNS stands for Domain Name System. DNS converts machine names to the IP addresses that all machines on the net have.

  • Page 53: Mac Address

    HTTP HTTP (HyperText Transport Protocol) is the communications protocol used to connect to servers on the World Wide Web. HTTP establishes a connection with a Web server and transmits HTML pages to client browser (for example Windows IE). HTTP addresses all begin with the prefix 'http://' prefix (for example, http://www.yahoo.com).
  • Page 54 NAT (Network Address Translation - also known as IP masquerading) enables an organization to present itself to the Internet with one address. NAT converts the address of each LAN node into one IP address for the Internet (and vice versa). NAT also provides a certain amount of security by acting as a firewall by keeping individual IP addresses hidden from the WAN.

  • Page 55: Subnet Mask

    Protocol A protocol is a rule that governs the communication of data. RIP (Routing Information Protocol) is a routing protocol that is integrated in the TCP/IP protocol. RIP finds a route that is based on the smallest number of hops between the source of a packet and its destination.

  • Page 56: Virtual Servers

    information when accurate delivery isn't necessary (for example, real-time video and audio where packets can be dumped as there is no time for retransmitting the data). Virtual Servers Virtual servers are client servers (such as Web servers) that share resources with other virtual servers (i.e., it is not a dedicated server).
