WatchGuard

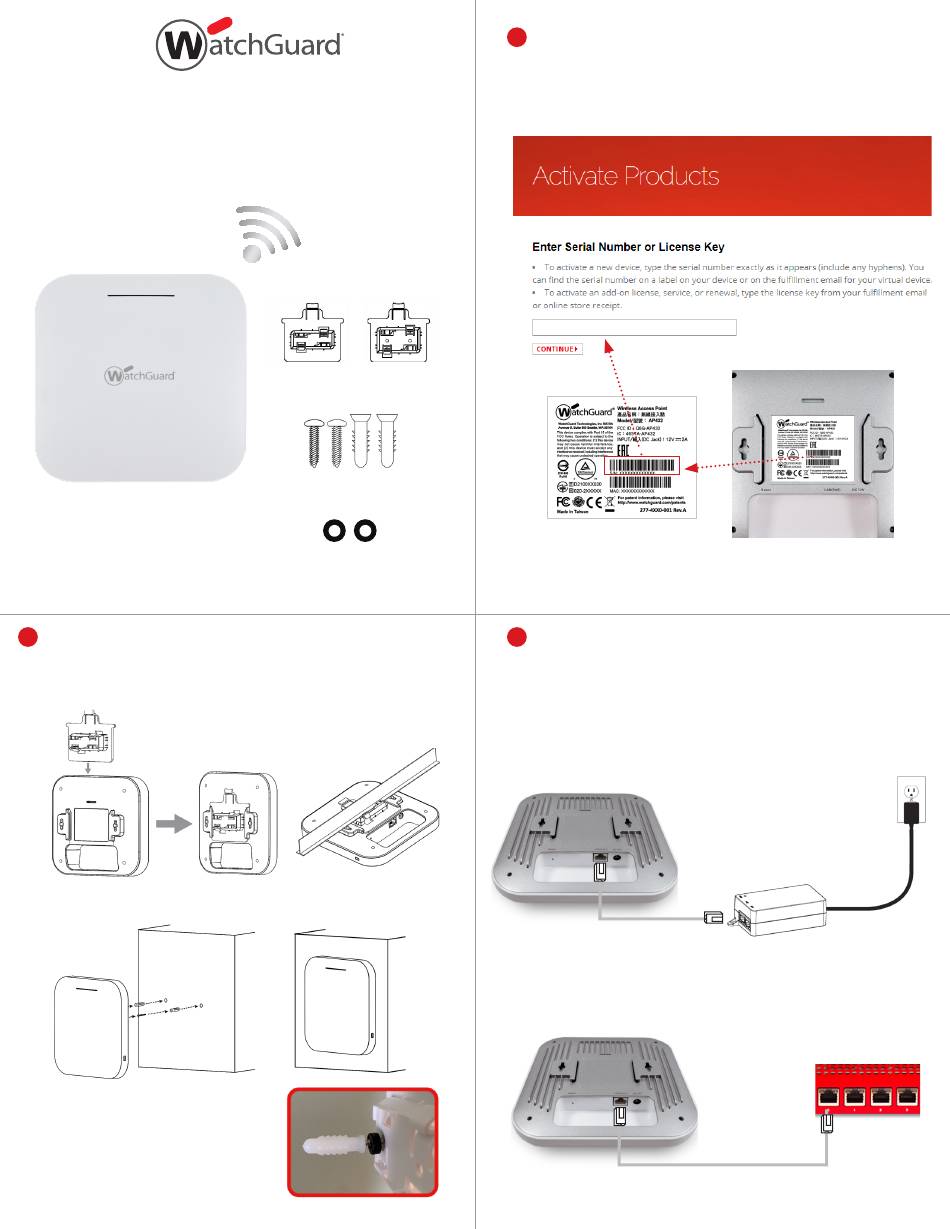

Quick Start Guide

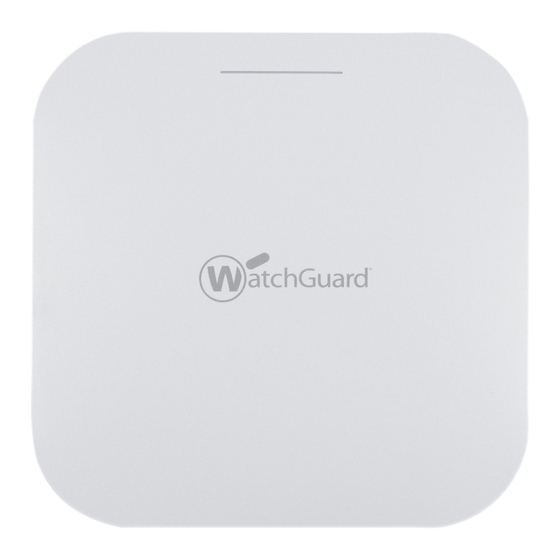

AP432
2
MOUNT THE AP
CEILING MOUNT
WALL MOUNT
Use the included spacers if you mount to a
wall with the 15/16" bracket attached to the
access point.
AP
®
(9/16" T-Rail) (15/16" T-Rail)
Ceiling Mount Brackets
Wall Mount Screws
Spacers
1
ACTIVATE YOUR AP
GO TO:
watchguard.com/activate
3
CONNECT THE AP
Plug one end of the Ethernet cable from your network into
the LAN PoE+ port on the bottom panel of the AP. Make sure
the other end of the Ethernet cable is connected to your
network through a hub, switch, or injector with PoE+
(802.3at) power enabled.
Access Point connected to PoE+ Injector
Access Point connected to switch with PoE+ power
PoE+
