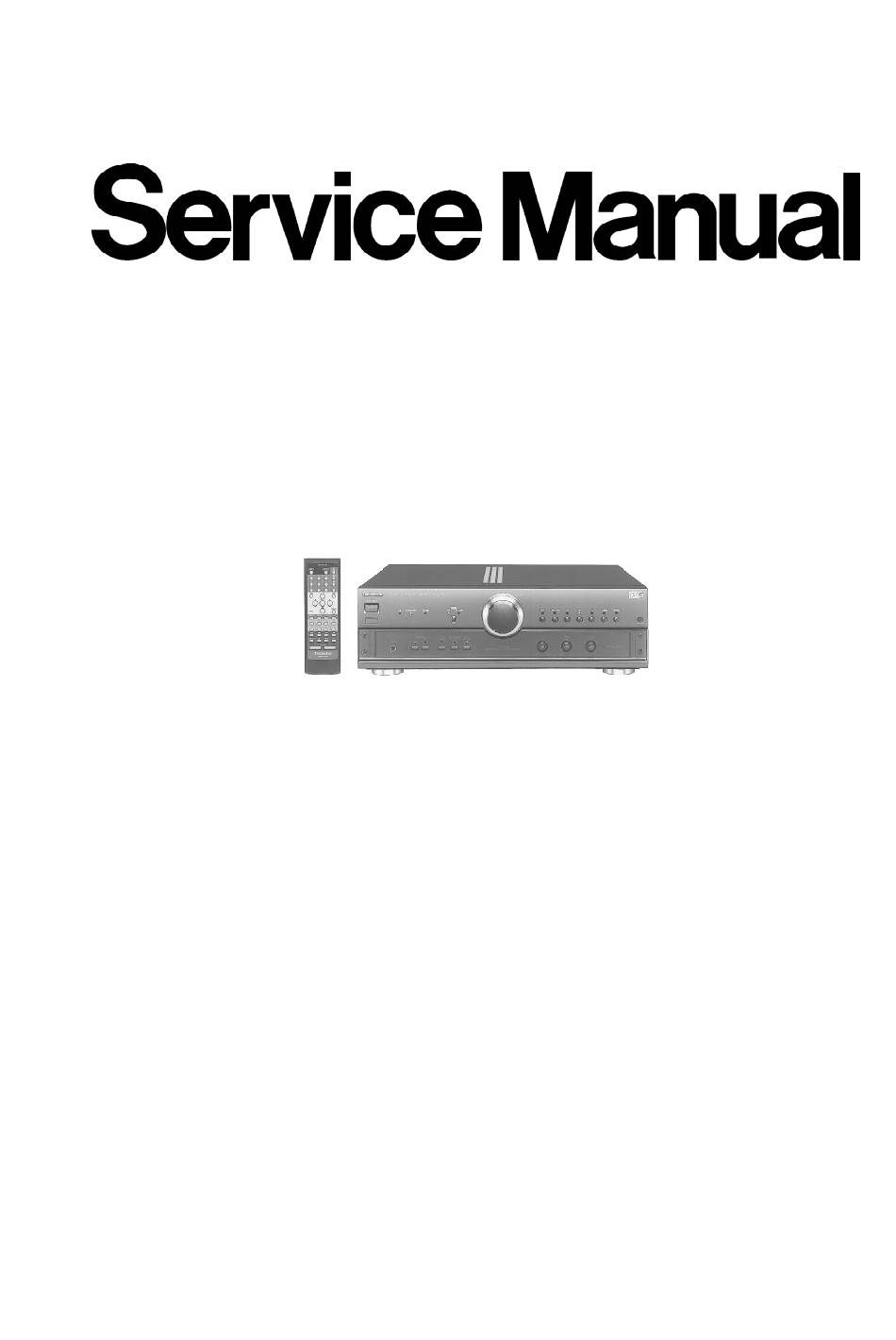

Technics SU-A808 Service Manual
Technics SU-A808 Service Manual

Technics SU-A808 Service Manual

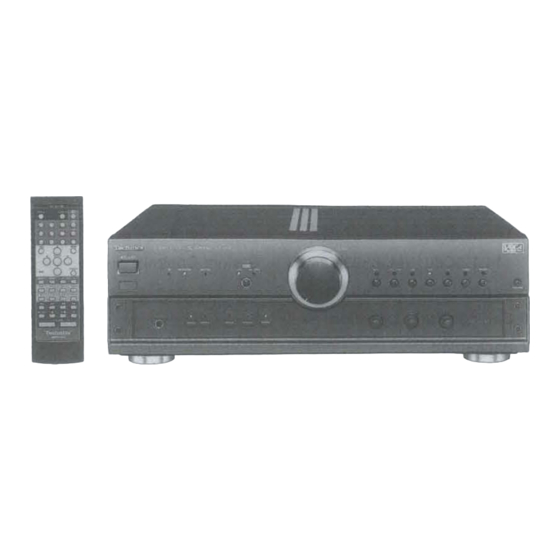

Stereo integrated amplifier
Hide thumbs Also See for SU-A808:

Advertisement

Quick Links

AD9907181C2
Stereo Integrated Amplifier
SU-A808
Colour
(K)...............Black Type
Areas
(E)...............Europe and Russia.
(EB)............Great Britain.
(EG)............Germany, France and Italy.
SPECIFICATIONS
1

Advertisement

loading

Summary of Contents for Technics SU-A808

  • Page 1 AD9907181C2 Stereo Integrated Amplifier SU-A808 Colour (K)....Black Type Areas (E)....Europe and Russia. (EB)....Great Britain. (EG)....Germany, France and Italy. SPECIFICATIONS...
  • Page 4 1999 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 5: Before Repair

    NOTATION PUBLIC "-//ALDUS//NOTATION TAGGED IMAGE FILE FORMAT//EN" ENTITY SYSTEM "C:\WINDOWS\棉 礁 寞 踢 \AD_SGML\F9907-3\sea909se\technics.tif" 1. Before Repair 1. Turn off the power supply. Using a 10 , 10 W resistor, connect both ends of power supply capacitors (C701, C702) in order to discharge the voltage.
  • Page 6: Caution For Ac Mains Lead

    (E) and (EG) areas : (RJA0019-X)..1 pc. (EB) area : (RJA0053-2X)......1 pc. - Remote control transmitter (RAK-SUA11WH)........1 pc. - Batteries (R6/LR6, AA, UM-3)........2 pcs. Note: These are available on sales route. 4. Caution for AC Mains Lead NOTATION PUBLIC "-//ALDUS//NOTATION TAGGED IMAGE FILE FORMAT//EN" ENTITY SYSTEM "ac_caution.tif"...
  • Page 7 Procedures...
  • Page 9 7. About the +/- 15 V Line Abnormality Detect Function 1. This model features the function that shuts down the main power source when it check the ± 15 V line with the IC801 (microcomputer) and find the different voltage. (After power is turned on, the unit enters the stand-by mode.) 2.
  • Page 10: Schematic Diagram

    check the circuits arround the ± 15 V line. (Specially check the abnormality of the stabilizing power source circuit.) 3. To clear this stand-by mode, short-circuit the TP801 land on the circuit board. However, clearance of the stand-by mode and turn on the electricity when the repair is not completed may lead to another trouble.
  • Page 11 Input select switch (DVD) S805: Input select switch (CD) S806: Input select switch (TUNER) S807: Input select switch (PHONO) S808: VGCA switch ( S809: Tape monitor (SOURCE) switch (TAPE MONITOR) S810: Tape monitor (TAPE 2 /MD) switch (TAPE MONITOR) S811: Tape monitor (TAPE 1) switch (TAPE MONITOR) S812: Speaker select switch (SPEAKER B)
  • Page 12 VR302: Tone control VR (TREBLE) - Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.
  • Page 13 9. Schematic Diagram 10. Printed Circuit Board Diagram 11. Block Diagram 12. Wiring Connection Diagram 13. Type Illustration of ICs, Transistors and Diodes 14. Measurements and Adjustments 14.1. Measuring Instruments and Special Tools - AC electronic voltmeter (AC EVM) - AF oscillator 14.2.
  • Page 14 - Adjustment point Fig.2...
  • Page 15: Terminal Function Of Ics

    15. Terminal Function of ICs 15.1. IC801 (M38503M2405F) : System Control Name Function Power supply terminal VREF Reference voltage input AGND GND terminal MUTE LED drive signal output (Mute) STBY LED drive signal output (Stand 6 REMCON Remote control signal input 7 BACKUP Power failure detect signal input Not used, connected to GND...
  • Page 16: Replacement Parts List

    Name Function SP A LED drive signal output (Speaker A) 27 VRDOWN O Motor drive signal output (Volume down) VRUP Motor drive signal output (Volume up) 29 S MUTE Audio muting control signal output 30 POWER Power relay control signal output SP B Speaker B relay control signal...
  • Page 17 FOOT 10-1 RMG0270-K RUBBER RMG0332-K RUBBER RMR1110-K TERMINAL COVER RGK1111-K RHD26033 SCREW RKF0596-Q DOOR RMR1252-K ARM(L) RMR1253-K ARM(R) RGB0031-A TECHNICS BADGE RGB0112-N VGCA BADGE RGH0155A-K SHEET RGK1182-N BUTTON ORNAMENT RGK1184-S VOLUME RING RGL0453-Q PANEL LIGHT 1 RGL0456-Q PANEL LIGHT 2...
  • Page 18 Ref. No. Part No. Part Name & Description Pcs. Remarks RGL0457-Q PANEL LIGHT 3 RGP0746A-K PANEL RGU0890-1K BUTTON,POWER RGU1712-K BUTTON,OPEN RGU1782-K BUTTON,SELECTOR RGU1784-S BUTTON,SPEAKER RGW0285-S KNOB,TONE RGW0325-K KNOB,VOLUME RHD26016 SCREW RHD26034 SCREW RHN90001 RKG0009 MAGNET RKW0273A-K FILTER RME0284 SPRING RMR1254-K MAGNET HOLDER RMR1261-K DAMPER HOLDER...
  • Page 19 Ref. No. Part No. Part Name & Description Pcs. Remarks C309,10 ECBT1H390J5 50V 39P C311,12 RCE1CKA100BG 16V 10U C313,14 ECQV1H823JZ 50V 0.082U C315,16 ECQB1H153JF3 50V 0.015U C317,18 ECQB1H183JF3 50V 0.018U C319,20 ECQB1H222JF 50V 2200P C321,22 ECBT1E223ZF 25V 0.022U C323,24 ECBT1H121KB5 50V 120P C351,52 ECA1EPXS100B...
  • Page 20 Ref. No. Part No. Part Name & Description Pcs. Remarks C712 ECBT1E103ZF 25V 0.01U C714 ECA1CM471 16V 470U C715 ECBT1E103ZF 25V 0.01U C716 RCE1CM102BV 16V 1000U C751,52 RCE1EFG470BJ 25V 47U C793,94 ECA1HBX3R3B 50V 3.3U C801-03 ECBT1E103ZF 25V 0.01U C804 ECA0JM102 6.3V 1000U C805 RCE1HKAR47BG...
  • Page 21 Ref. No. Part No. Part Name & Description Pcs. Remarks D608-10 MA165 DIODE D611,12 MA167 DIODE D613 MA700 DIODE D701-04 P300DLF DIODE D705 1SR35200TB DIODE D706 MA165 DIODE D709 MA4056-LTA DIODE D710-13 1SR35200TB DIODE D793,94 MA165 DIODE D795,96 MA4140M DIODE D797,98 MA165 DIODE...
  • Page 22 RPG4557 PACKING CASE (EB,EG)
  • Page 23 Ref. No. Part No. Part Name & Description Pcs. Remarks RPN1221 RPH0032 MIRROR SHEET (EB) SPP730 SHEET PCB1 REP2865A-M MAIN PCB (E,EG) (RTL) PCB1 REP2865B-M MAIN PCB (EB) / (RTL) PCB2 REP2866A-S SUB PCB (E,EG) (RTL) PCB2 REP2866B-S SUB PCB (EB) / (RTL) Q401,02 2SA992F...
  • Page 24 Ref. No. Part No. Part Name & Description Pcs. Remarks R219-21 ERDS2FJ103 1/4W 10K R223,24 ERDS2FJ393 1/4W 39K R251 ERDS1FJ100 1/2W 10 R301,02 ERDS2FJ563 1/4W 56K R303,04 ERDS2FJ123 1/4W 12K R305-08 ERDS2FJ224 1/4W 220K R309,10 ERDS2FJ392 1/4W 3.9K R311,12 ERDS2FJ102 1/4W 1K R313,14 ERDS2FJ223...
  • Page 25 Ref. No. Part No. Part Name & Description Pcs. Remarks R563,64 ERG1SJ181 1W 180 R565-70 ERDS2FJ223 1/4W 22K R611-14 ERDS2FJ223 1/4W 22K R615-18 ERDS2FJ103 1/4W 10K R619 ERDS2FJ151 1/4W 150 R620 ERDS2FJ153 1/4W 15K R621,22 ERDS2FJ223 1/4W 22K R624 ERDS2FJ333 1/4W 33K R625 ERDS2FJ223...
  • Page 26 Ref. No. Part No. Part Name & Description Pcs. Remarks R835 ERDS2FJ105 1/4W 1M R845 ERDS2FJ334 1/4W 330K R851 ERDS2FJ331 1/4W 330 R852 ERDS2FJ271 1/4W 270 R853,54 ERDS2FJ331 1/4W 330 R855 ERDS2FJ271 1/4W 270 R857-61 ERDS2FJ331 1/4W 330 R862 ERDS1FJ471 1/2W 470 RL201-04 RSY0020M-R...
