KX-TS2388RUB/KX-TS2388RUW/KX-TS2388CAB/KX-TS2388CAW/KX-TS2388UAB/KX-TS2388UAW
4

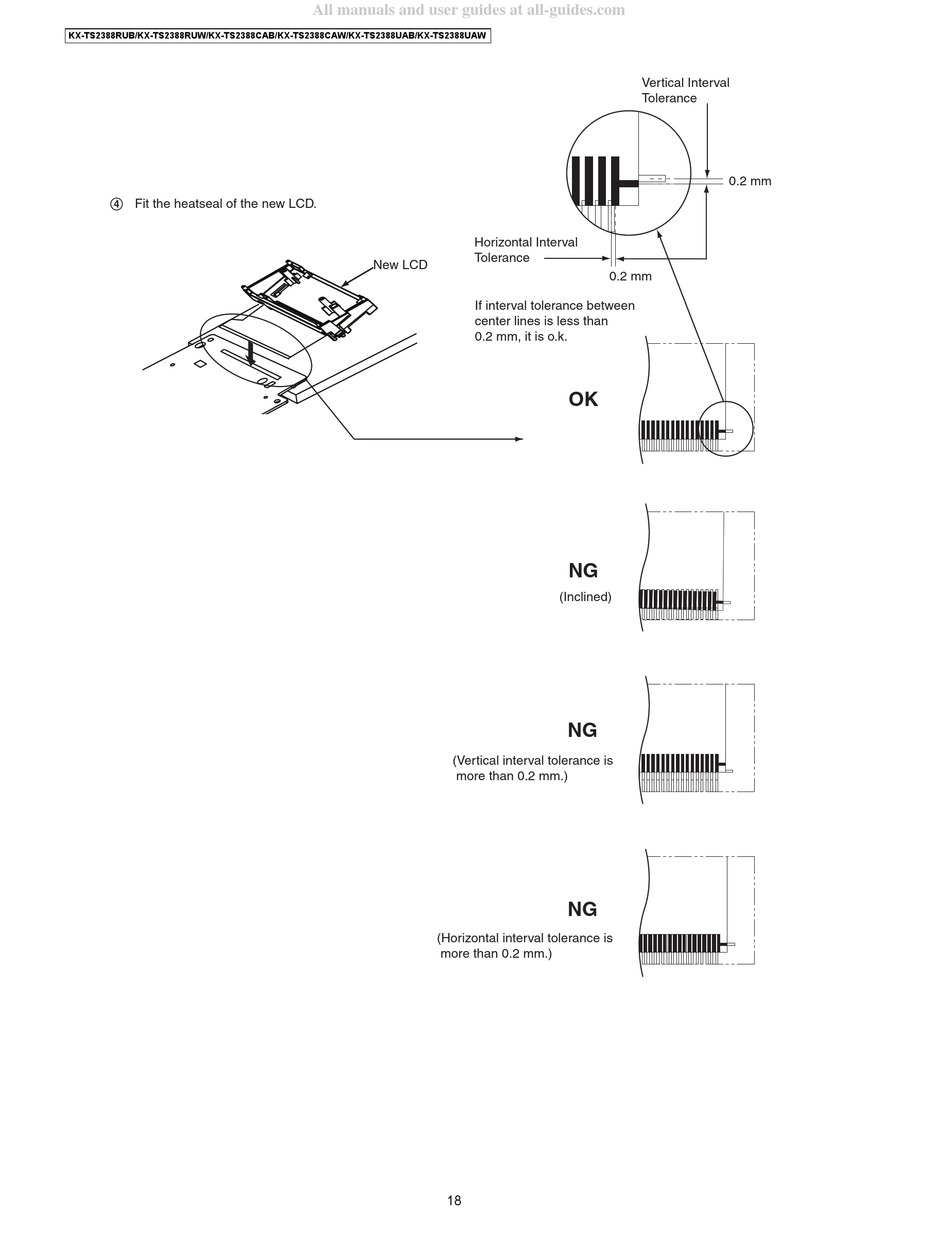

Fit the heatseal of the new LCD.
All manuals and user guides at all-guides.com
Horizontal Interval
Tolerance
New LCD
If interval tolerance between
center lines is less than
0.2 mm, it is o.k.
(Vertical interval tolerance is
more than 0.2 mm.)
(Horizontal interval tolerance is
more than 0.2 mm.)
18
Vertical Interval
Tolerance
0.2 mm
0.2 mm
OK
NG
(Inclined)
NG
NG
