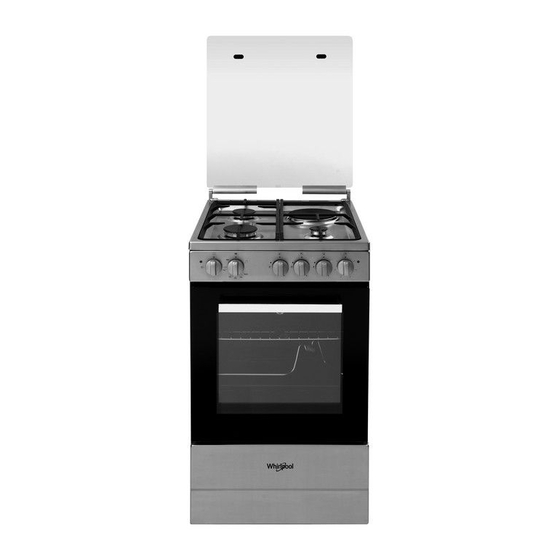

Whirlpool ACG531IX Service Manual
Hide thumbs
1
2
3
4
5
6
7
8
9
page
of
9
Go
/
9
Bookmarks
Advertisement
Quick Links
Download this manual
SERVICE MANUAL
Model : ACG531IX
Version : xxxxxxx
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for Whirlpool ACG531IX
Hob Whirlpool ACM 723 Instructions For Use Manual
(54 pages)
Hob Whirlpool ACM808NE Installation Manual
(170 pages)
Hob Whirlpool ACM 808/BA Manual
(170 pages)
Hob Whirlpool ACM 808/NE Instructions For Use Manual
(15 pages)
Hob Whirlpool ACM 707/BA Instructions For Use Manual
77cm frameless touch control induction hob acm 707/ba (8 pages)
Hob Whirlpool ACM 802/NE Instructions For Use Manual
60cm frameless touch control induction hob acm 802/ne (158 pages)
Hob Whirlpool ACM 847/BA Instructions For Use Manual
60cm 6th sense induction hob with flexi dual zone acm 847/ba (188 pages)
Hob Whirlpool ACM 775/NE Instructions For Use Manual
77cm frameless touch control induction hob, with 3 zones acm 775/ne (123 pages)
Hob Whirlpool ACM 750/BA Instructions For Use Manual
3 zone induction hob with 6th sense technology in black acm 750/ba (9 pages)
Hob Whirlpool ACM230/IX Health & Safety, Use & Care, Installation Manual And Online Warranty Registration Information
(28 pages)
Hob Whirlpool ACM938BA Manual
(10 pages)
Hob Whirlpool ACM 808/BA/S Instructions For Use Manual
(16 pages)
Hob Whirlpool ACM 807/BA Instructions Manual
Built in induction hob (29 pages)
Hob Whirlpool ACM 867 BA/IXL Instructions For Use Manual
(16 pages)
Hob Whirlpool ACM320/BA Health & Safety, Use & Care And Installation Manual
(26 pages)
Hob Whirlpool ACM 828/BA Instructions For Use Manual
(16 pages)
Summary of Contents for Whirlpool ACG531IX
Page 1
SERVICE MANUAL Model : ACG531IX Version : xxxxxxx...
Page 3
Contents Technical Data ..........2 Exploded view ..........3 Spare parts list ..........4 Wiring diagram ..........7...
Page 4: Technical Data
Technical Data Electricity supply: 220-240V~50/60Hz Max Gas Power: 5750W Hot Plate Power: 1000W Top Gas Power: 1700W Bottom Gas Power: 2500W Oven light: 25W Inner volume of the oven: 56 Liters...
Page 5: Exploded View
Exploded view...
Page 6: Spare Parts List
Spare parts list Parts No. Code Description 2030300108 Inner assembly 2030400003 Doorframe Sealer Subassembly 0.067 30302700136 Connection panel 30302900171 Fixing sleeve 30307100134 Drawer panel 30307200021 Drawer baffle 30307800013 Drawer partition 30313200065 Oven bracket 30200900016 Inner glass fixing block 30200900018 Inner glass fixing block 30200900019 Inner glass fixing block 30201300001...
Page 7
Spare parts list 30302300087 Side panel 30302600032 Hinge fixed plate-left 30302600033 Hinge fixed plate-right 30302700138 Connection panel 30302700153 Connection panel 30302700157 Connection panel 30302900184 Oven fixed plate 30302900185 Oven fixed plate 30302900215 Oven fixed plate 30302900216 Oven fixed plate 30302900219 Oven fixed plate 30303900001 Burner baffle...
Page 8
Spare parts list 30402100100 Nozzle-upper burner 60.1 30402100101 Nozzle-semi-rapid burner 60.2 30402100111 Nozzle 60.3 30402100119 Nozzle-rapid burner 30402300002 Inlet connector 30402400003 Ignition needle-semi-rapid burner 350mm 62.1 30402400004 Ignition needle-semi-rapid burner 500mm 62.2 30402400049 Ignition needle 30402800016 Base cup for auxiliary burner 30402800032 Base cup for rapid burner 30402800022...
Page 9: Wiring Diagram
Wiring diagram Spark pin switch Spark pin switch Spark pin switch HOT PLATE Oven Spark pin switch Lamp Top burner Bottom burner Light Rotisserie Lamp...
