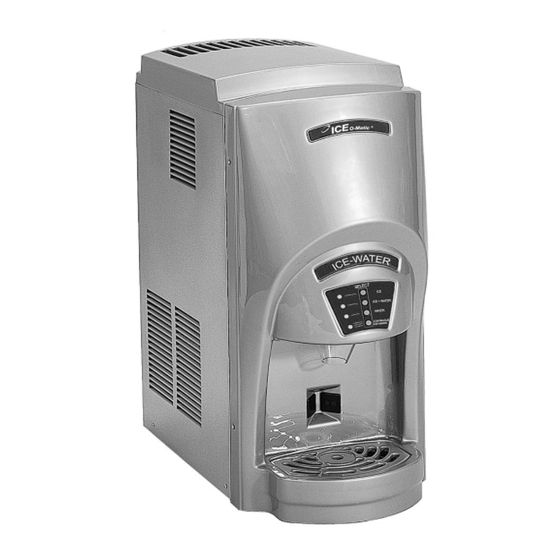

- Page 1 SERVICE PARTS MANUAL FLAKER DISPENSER MODEL-EFD270 Mile High Equipment 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081321-01 Print Date 4/04...
-
Page 3: Table Of Contents
This is the list of service parts for the EFD270 ice maker dispenser. Always have the model and serial number available when looking for a part number as changes do occur and the change may reference the model and/or serial number. -
Page 4: Cabinet
1011357-106 Metal Divider 1011357-93 Condenser Shroud 1011357-96 Plastic Bracket 1011357-110 Ice Spout Bracket 1011357-95 Dispensing Board Frame 1011357-10 Front Panel, incl. items 16, 17, 18 EFD270 Service Parts Cabinet 1011357-77 1011357-97 1011357-84 1011357-83 1011357-82 1011357-80 1011357-99 1011357-101 PCB cover 1011357-25 1011357-78... -
Page 5: Condensing System
Start Relay 1011357-35 Start Capacitor (315 mfd) 1011357-67 Valve Body 1011357-103 Valve Piston 1011357-65 Valve Cap 1011357-44 Air Cooled Condenser 1011357-42 Fan Motor 1011357-43 Fan Blade 1011357-49 Drier 1011357-121 R Suction Line/Accumulator EFD270 Service Parts Condensing System April 2004 Page 3... -
Page 6: Water And Dispensing
EFD 270 Service Parts Water and Dispensing April 2004 Page 4... -
Page 7: Water And Dispensing Part Numbers
Water and Dispensing Part Numbers Item Part Number Number Description 1011357-116 Water Inlet Fitting 1011357-63 Strainer 1011357-13 Fiber Washer 1011357-14 No Number Copper Water Inlet Tube 1011357-64 Water Inlet Valve 1011357-32 Plastic Tube No Number Copper Water Inlet Tube 1011357-119 Nozzle 1011357-24 Clip Ring 1311357-61... -
Page 8: Auger Drive And Evaporator
EFD 270 Service Parts Auger Drive and Evaporator April 2004 Page 6... -
Page 9: Auger Drive And Evaporator Part Numbers
Auger Drive and Evaporator Part Numbers Item Part Number Number Description 1011357-126 Gear Reducer assy 1011357-01 Gear Case assy 1011357-07 Grease (1 Kg) 1011357-05 Screw 1011357-59 O Ring 1011357-58 Grease Seal 1011357-85 Bearing 1011357-23 Trust Washer 1011357-125 R Rotor assy 1011357-37 Stator assy 1011357-117 Fan Blade... -
Page 10: Control System
Item Part Number Number Description 1011357-48 1-2-3 P.C. Board & Box assy 1011357-45 Dispensing P.C.B. 1011357-41 Water Level Sensor 1011357-39 Hall Effect Sensor 1011357-38 Condenser Temp. Sensor 1011357-40 Evaporator Temp. Sensor 1011357-71 Ice Level Control Assy 1011357-47 Dispensing Sensor Tx (Black) 1011357-46 Dispensing Sensor rx (Blue) 1011357-28... -
Page 11: Wiring Diagram
EFD 270 Service Parts Wiring Diagram LB - Light Blue April 2004 Page 9...
