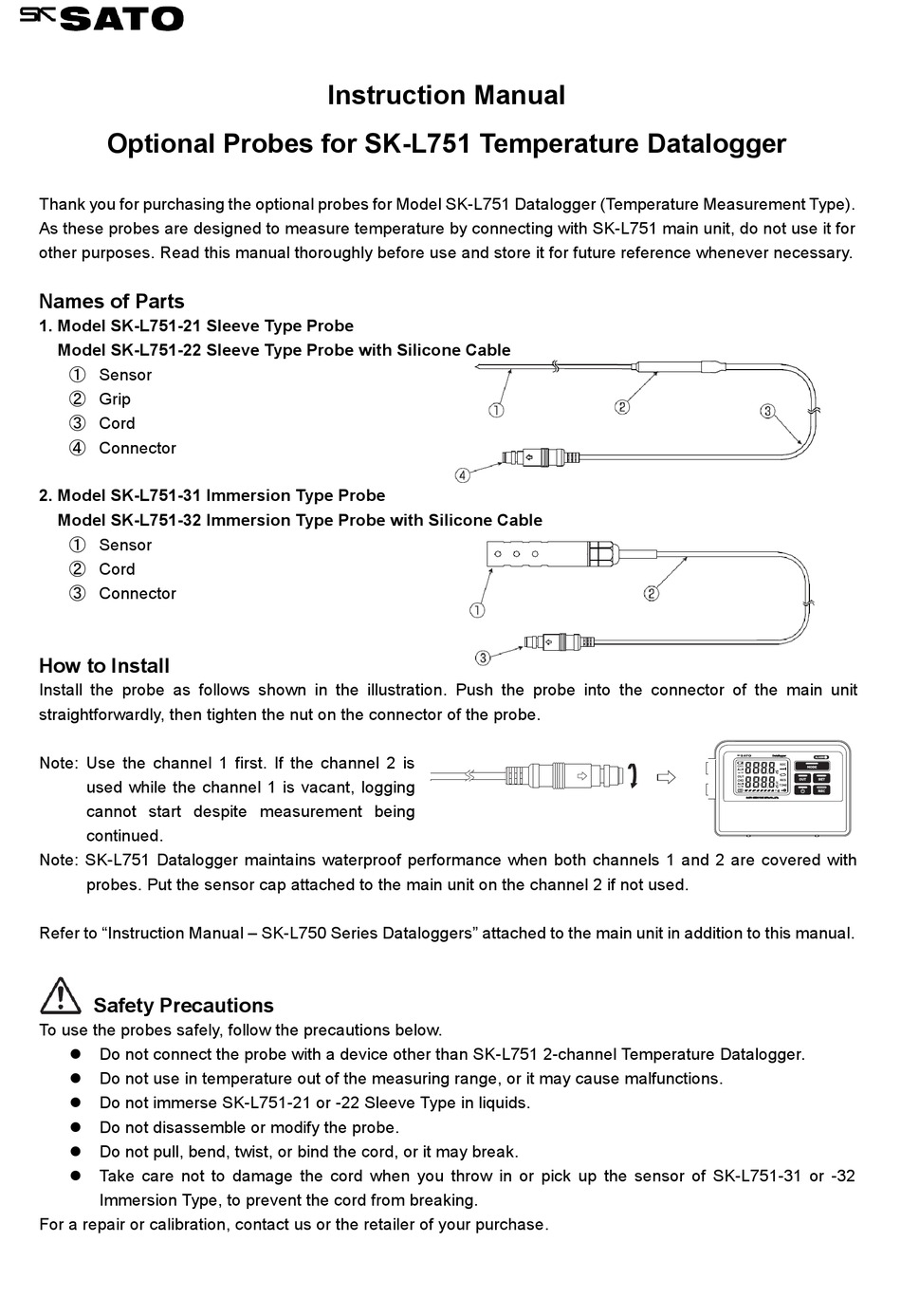

Optional Probes for SK-L751 Temperature Datalogger
Thank you for purchasing the optional probes for Model SK-L751 Datalogger (Temperature Measurement Type).
As these probes are designed to measure temperature by connecting with SK-L751 main unit, do not use it for
other purposes. Read this manual thoroughly before use and store it for future reference whenever necessary.
Names of Parts
1. Model SK-L751-21 Sleeve Type Probe
1. Model SK-L751-22 Sleeve Type Probe with Silicone Cable
① Sensor
② Grip
③ Cord
④ Connector
2. Model SK-L751-31 Immersion Type Probe
2. Model SK-L751-32 Immersion Type Probe with Silicone Cable
① Sensor
② Cord
③ Connector
How to Install
Install the probe as follows shown in the illustration. Push the probe into the connector of the main unit
straightforwardly, then tighten the nut on the connector of the probe.
Note: Use the channel 1 first. If the channel 2 is
used while the channel 1 is vacant, logging
cannot start despite measurement being
continued.
Note: SK-L751 Datalogger maintains waterproof performance when both channels 1 and 2 are covered with
probes. Put the sensor cap attached to the main unit on the channel 2 if not used.
Refer to "Instruction Manual – SK-L750 Series Dataloggers" attached to the main unit in addition to this manual.
Safety Precautions
To use the probes safely, follow the precautions below.
⚫ Do not connect the probe with a device other than SK-L751 2-channel Temperature Datalogger.
⚫ Do not use in temperature out of the measuring range, or it may cause malfunctions.
⚫ Do not immerse SK-L751-21 or -22 Sleeve Type in liquids.
⚫ Do not disassemble or modify the probe.
⚫ Do not pull, bend, twist, or bind the cord, or it may break.
⚫ Take care not to damage the cord when you throw in or pick up the sensor of SK-L751-31 or -32
Immersion Type, to prevent the cord from breaking.
For a repair or calibration, contact us or the retailer of your purchase.
