APPLICATION

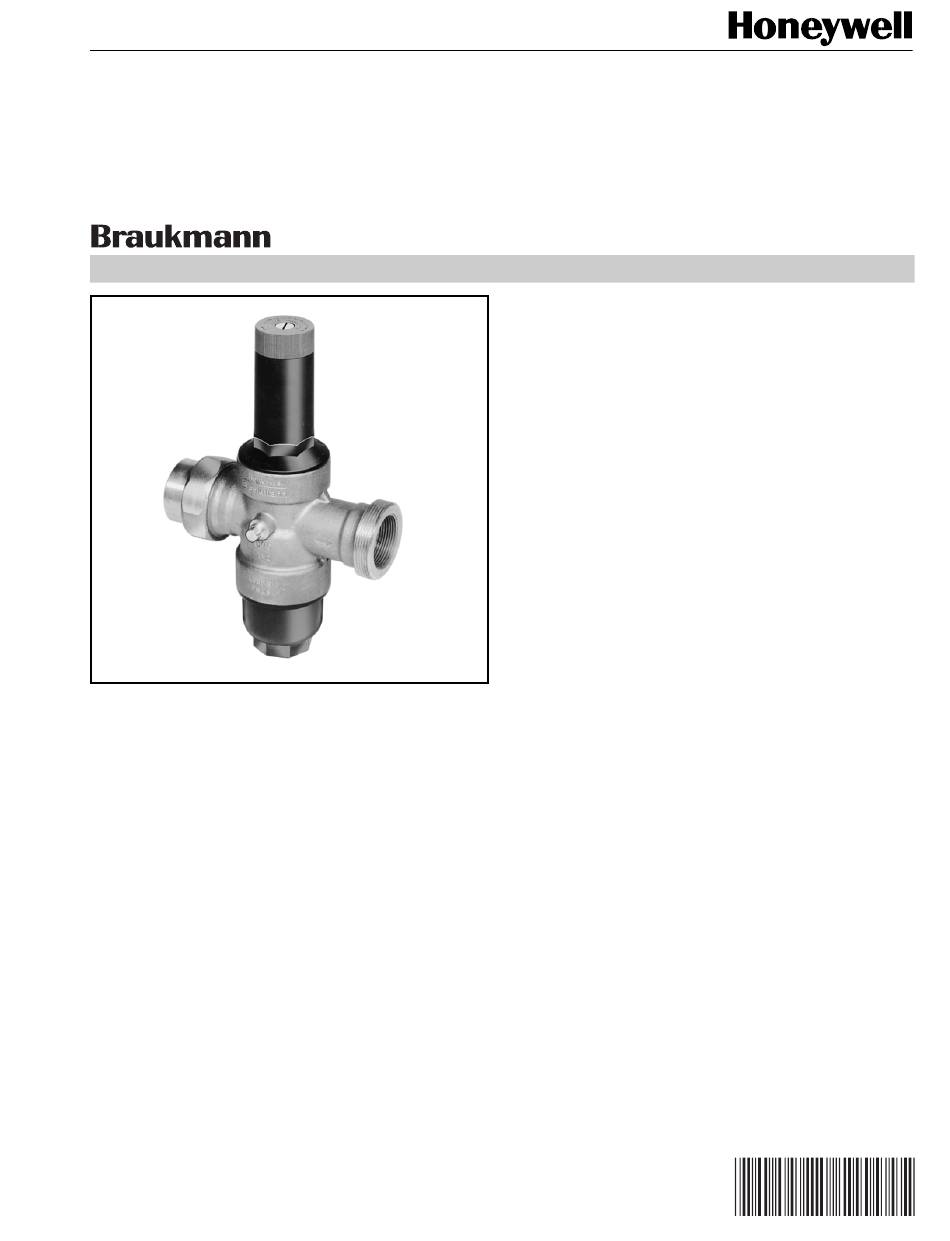

The Honeywell Braukmann D06G Valve is a high quality
pressure regulating valve that maintains a constant outlet
pressure over a wide range of inlet supply pressures. It is
ideally suited for potable water and irrigation applications
requiring accurate regulation.
The wide outlet pressure range, high inlet pressure, and
compact design allow flexibility in installation and application.
® U.S. Registered Trademark
Copyright © 1996 Honeywell Inc. • All Rights Reserved
Pressure Regulating Valve
FEATURES
• Noncorroding unitized cartridge contains all working
parts and is easily replaceable.
• Outlet pressure range from 15 to 130 psi in all models,
inlet rating 400 psi.
• Includes built-in strainer and thermal bypass.
• Narrow design to accommodate restricted installation
requirements.
• Balanced seat construction provides superior
pressure regulation.
• Inlet and outlet are internally threaded NPT, and
externally threaded for use with union assemblies.
• Gauge taps provided on all models.
Application ........................................................................... 1
Features .............................................................................. 1
Specifications ...................................................................... 2
Ordering Information ........................................................... 2
Installation ........................................................................... 3
Maintenance and Repair ..................................................... 4
Operation ............................................................................ 6
Troubleshooting .................................................................. 6
D06G Parts and Accessories .............................................. 7
D06G
PRODUCT DATA
Contents
62-3051
Advertisement
Table of Contents
Related Manuals for Honeywell Braukmann D06G
Summary of Contents for Honeywell Braukmann D06G
-
Page 1: Table Of Contents
• Gauge taps provided on all models. APPLICATION The Honeywell Braukmann D06G Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is ideally suited for potable water and irrigation applications requiring accurate regulation. -
Page 2: Specifications
If you have additional questions, need further information, or would like to comment on our products or services, please contact: Honeywell Sparco/Braukmann Customer Service 65 Access Road Warwick, Rhode Island www.honeywell.ca/braukmann www.sparco-inc.com In Canada—Contact your nearest Honeywell Home and Building Control Sales Office. 62-3051... -
Page 3: Installation
D06G PRESSURE REGULATING VALVE Given these variables, use Table 1 to determine the proper Water Capacities (See Table 1) size pressure regulator valve for your application. The suitability of a given regulator size is dependent on the pressure requirements of each installation. To determine the Example: An installation has 135 psi inlet pressure, 60 psi pressure regulator valve size required for a specific... -
Page 4: Maintenance And Repair
D06G PRESSURE REGULATING VALVE Assemble the strainer cup O-ring onto the strainer cup LOOSEN LOCKING SCREW and insert the assembly into the body of the valve. Tighten ONE TURN, BUT DO NOT REMOVE SCREW OR securely using the service tool. Do not over torque. DECREASE ADJUSTING KNOB. - Page 5 D06G PRESSURE REGULATING VALVE BONNET ASSEMBLY SPRING REMOVE STRAINER CUP USING PROTECTION WASHER MT06A SERVICE TOOL. M11215 CARTRIDGE Fig. 5. Removing strainer cup. CARTRIDGE O-RING TAILPIECE UNION GASKET U-SEAL STRAINER SUPPORT STRAINER Fig. 6. Replacing protection washer. STRAINER CUP O-RING Cleaning Strainer Screen To clean the strainer screen: STRAINER CUP...
-
Page 6: Operation
Adjustment is made by manually turning the adjustment knob clockwise to The Honeywell Braukmann D06G Valve is a balanced, direct increase the spring force and require a higher downstream acting pressure-regulating valve. It provides constant pressure to close the valve. -
Page 7: D06G Parts And Accessories
D06G PRESSURE REGULATING VALVE D06G PARTS AND ACCESSORIES Order Number Description Order Number Description Union Kits Replacement Parts K06U1037 Union Kit NPT, 1-1/2 in., includes female NPT 272858 Union Gasket, fits all D06 and DS06, threaded tailpiece, union nut, and gasket, and 1-1/2 in., 10 per bag. - Page 8 D06G PRESSURE REGULATING VALVE ® Helping You Control Your World Home and Building Control Home and Building Control Honeywell Inc. Honeywell Limited-Honeywell Limitée Honeywell Plaza 155 Gordon Baker Road P.O. Box 524 North York, Ontario Minneapolis MN 55408-0524 M2H 2C9 www.honeywell.ca/braukmann...
