Setting bevel angle
Loosen the lever and tentatively set the tool base at the
0°bevel angle, then tighten the lever securely.
Turn the positive stopper so that the arrow on it points
one of three positions (22.5°,45°,56°) that is equal to or
greater than the desired bevel angle.
Loosen the lever again and then tilt and secure the tool
base at the desired angle securely.
NOTE:
• When changing the positive stopper's position, loosen-
ing the lever and tilting the bevel angle to less than the
desired stopper position number allows to change it.
• When the arrow on the positive stopper points 22.5,
the bevel angle can be adjusted 0 - 22.5°;when the
arrow points 45, it can be adjusted 0 - 45°; when the
arrow points 56, it can be adjusted 0 - 56°.

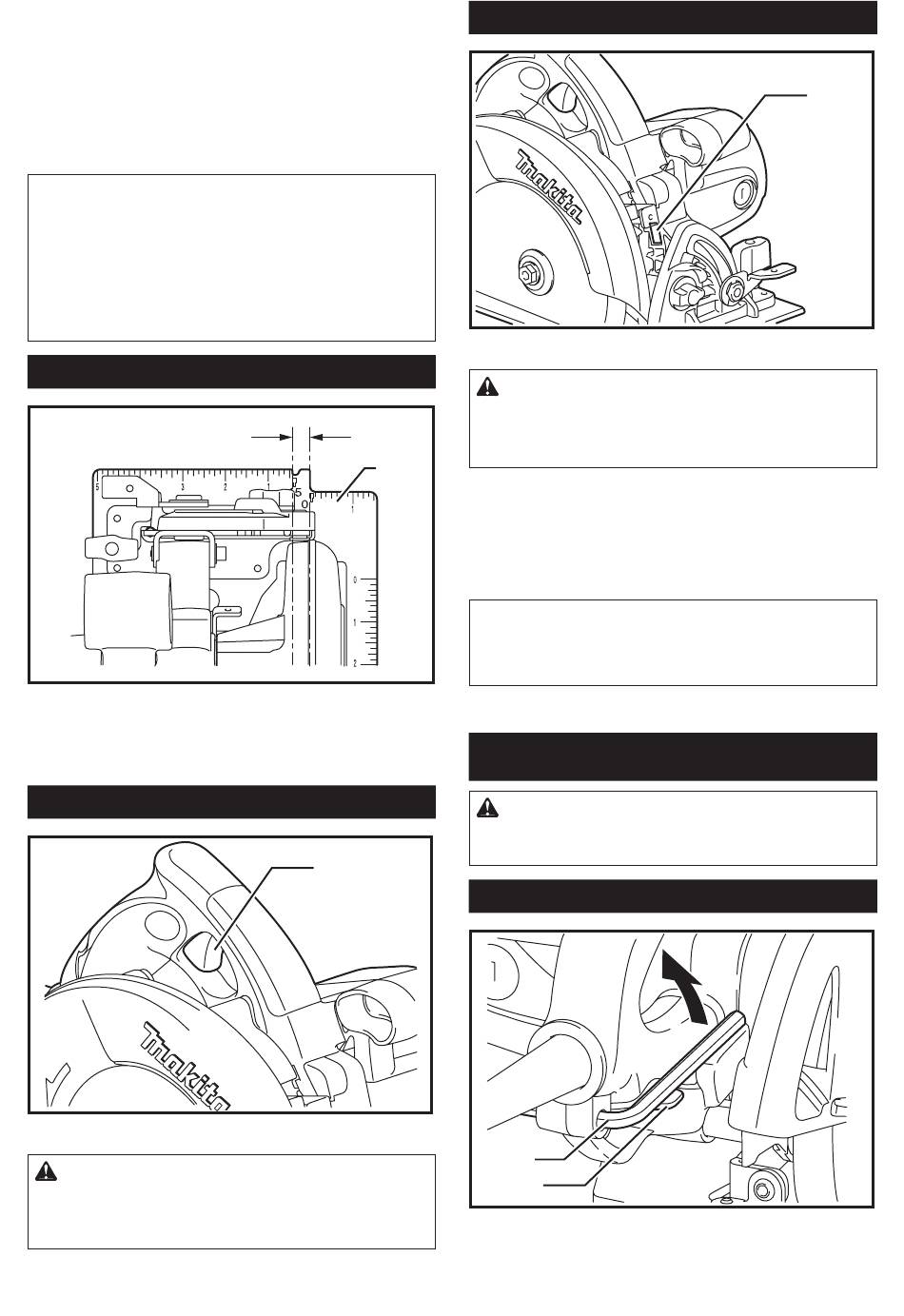

Sighting
► 1 . Base
For straight cuts, align the A position on the front of the
base with your cutting line. For 45° bevel cuts, align the
B position with it.

Switch action

► 1 . Switch trigger
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
B A
1
1
Lighting the lamp (For model 5007NF only)
► 1 . Lamp
CAUTION:
• Do not apply impact to the lamp, which may
cause damage or shorted service time to it.
• Do not look in the light or see the source of light directly.
The lamp lights up when the tool is plugged. The lamp
keeps on lighting until the tool is unplugged.
If the lamp does not light up, the mains cord may be defective.
The lamp is lit but the tool does not start even if the tool is
switched on, the carbon brushes may be worn out, the motor
or the ON/OFF switch may be defective.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of
lamp. Be careful not to scratch the lens of lamp,
or it may lower the illumination.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Hex wrench storage
1
2
► 1 . Hex wrench 2. Protrusion
Hex wrench is stored on the tool. To remove hex
wrench, rotate it toward yourself and pull it out.
7 ENGLISH
