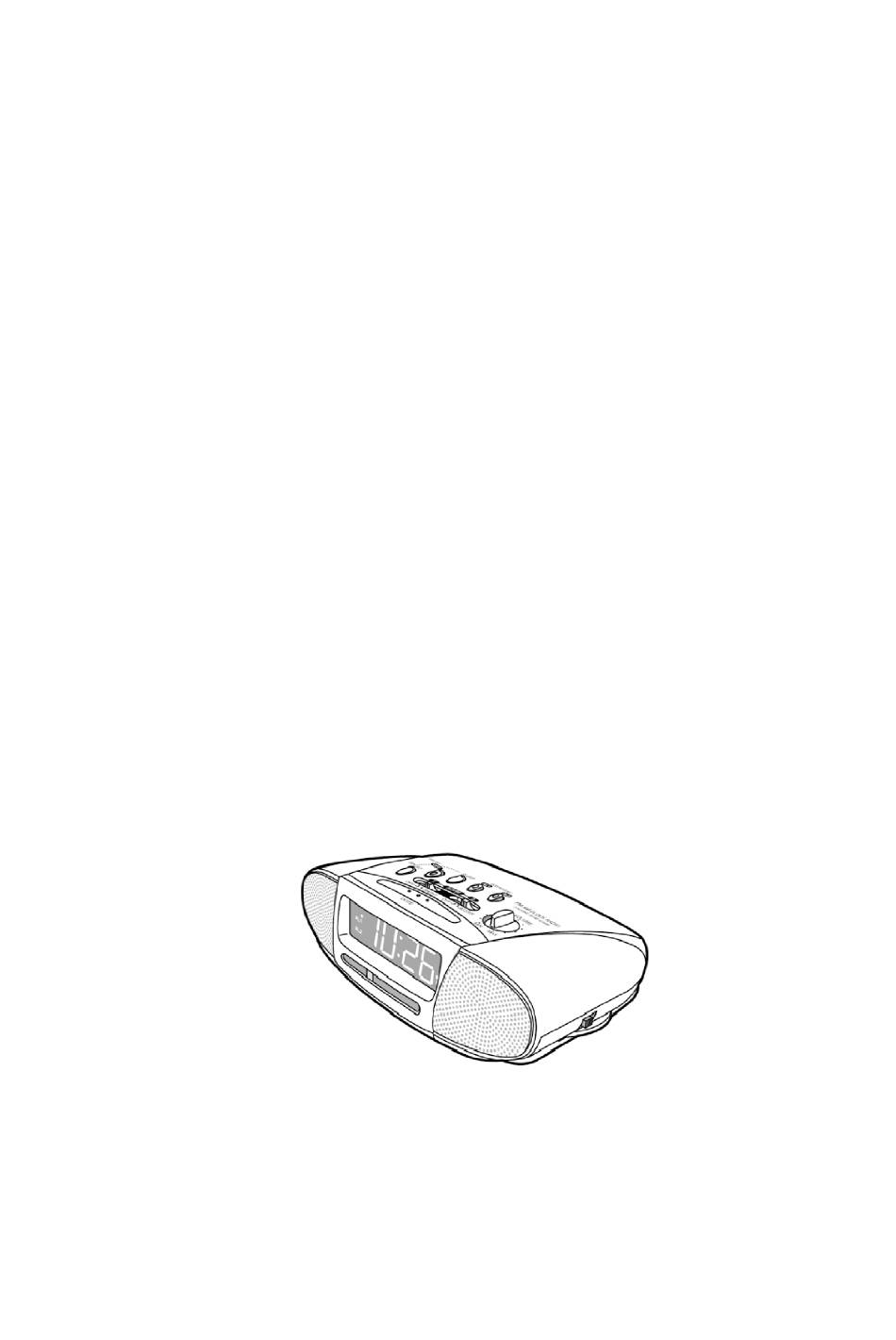

- Page 1 ORDER NO. AD0303076C1 FM-AM Clock Radio RC-7200P / RC-7200PC / RC-7150P / RC-7150PC Colour (S)....Silver Type SPECIFICATIONS Specification...
-
Page 2: Safety Precaution
Radio frequency range: 88.0-108.0 MHz 525-1710 kHz Intermediate frequency: 10.7 MHz 455.0 kHz Sensitivity: 6.31 V/50mW output (-3dB limit sens.) V/m/50mW output (Max sens.) Power requirement: 120 V, 60 Hz / Power consumption; 6W Battery; 9V (one 6F22/6LR61, 006P battery) Speaker: 4cm (1-1/2”) Dimensions (W×H×D):... - Page 3 1. Before servicing, unplug the power cord to prevent an electric shock. 2. When replacing parts, use only manufacturer’s recommended components for safety. 3. Check the condition of the power cord. Replace if wear or damage is evident. 4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.
- Page 4 (Fig. B)
-
Page 5: Replacement Parts List
4. If the measurement is outside the specified limits, there is a possibility of a shock hazard. The equipment should be repaired and rechecked before it is returned to the customer. 2. Replacement Parts List Ref.No. Part No. Part Name & Pcs Remarks Description RQTW0037...
