Summary of Contents for Intel mobileye 8 Connect

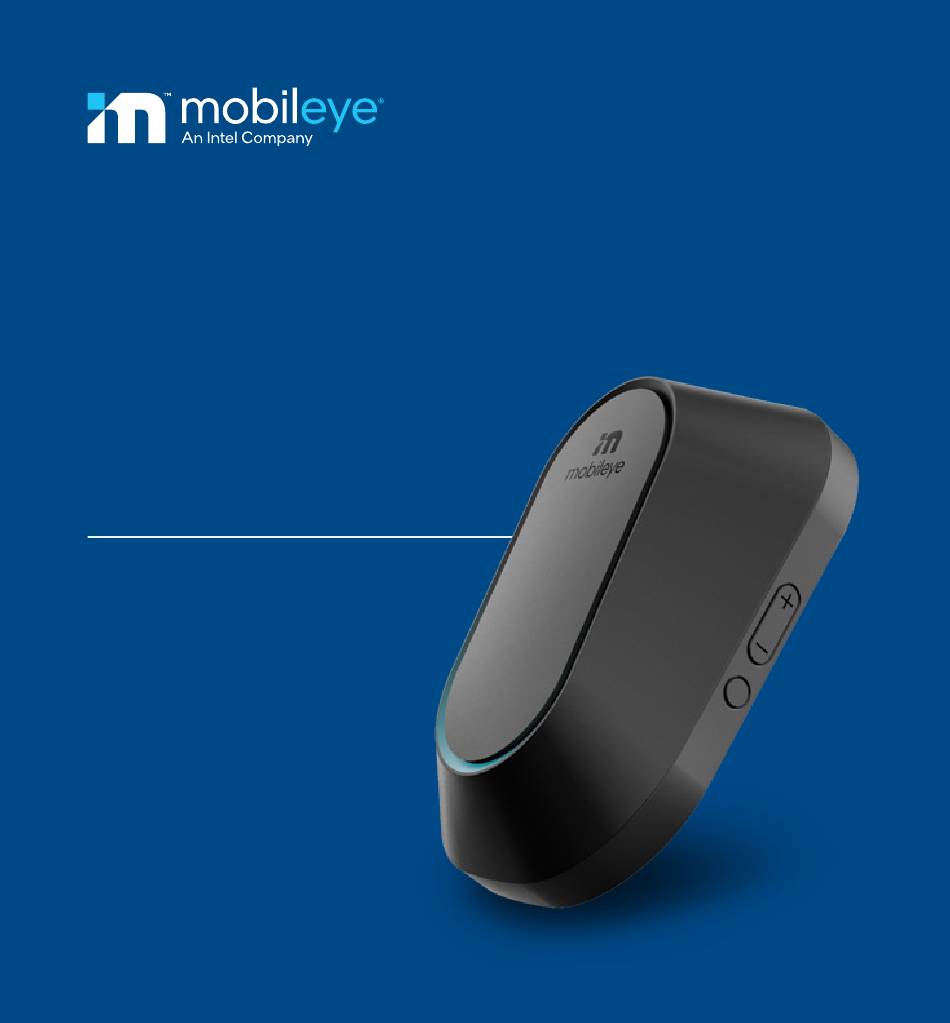

Page 1 Mobileye ® 8 Connect User Manual...
Page 2 ® By choosing the Mobileye® 8 Connect Advanced Driver Assistance Systems Series ("Mobileye 8 Connect" or the "System"), you join the many drivers worldwide who use our various advanced driver assistance technologies to make roads safer for drivers, passengers, pedestrians, cyclists and other vulnerable road users.
Page 3 User Manual...
Page 4: Table Of Contents
System Components Safety Information Installation and Safety Instructions Mobileye 8 Connect Capabilities Data Collection Cellular Activating the Mobileye 8 Connect Mobileye 8 Connect Alerts Forward Collision Warning – (FCW) 15-16 Urban Forward Collision Warning – (UFCW) 16-17 Pedestrian & Cyclist Collision Warning - (PCW) 18-19 Lane Departure Warning –...
Page 5 Eyewatch Control Panel Brightness Level Control Volume Control FCW Sensitivty Menu HMW Sensitivty Menu LDW Sensitivty Menu SLI Sensitivty Menu IHC Menu Exit (To the main screen) System Power EyeWatch Advanced Mode EyeWatch Icons License And Product Warranty Limited Use License Limited Product Warranty Warranty Disclaimer If Service is Needed...
Page 6: Mobileye 8 Connect Overview
General information Since the Mobileye 8 Connect supports over-the-air updates, the system parameters and information included in this user manual may change from time to time. The information included in this user manual is correct at the time of publishing. For the most up to date user manual, check our website: www.mobileye.com.
Page 7: Safety Information
Safety Information and the Installation and Safety Instructions set forth below. If you do not agree to these terms, please return the Mobileye 8 Connect in its original packaging to the dealer within 30 days of purchase to receive a full refund.
Page 8 • The Mobileye 8 Connect does not "see" better than the driver; it is designed to assist drivers by providing warnings solely in specific situations. It is the driver’s responsibility to act responsibly and with caution, to show awareness at all times and rely on their vision and hearing while driving.
Page 9 • Accordingly, drivers should not rely on the Mobileye 8 Connect to assure their driving safety, but rather should continue to rely on safe driving practices. • The Mobileye 8 Connect detects fully visible rear-ends of vehicles. Therefore, crossing, oncoming, and passing vehicles cannot be detected.
Page 10: Installation And Safety Instructions
• The Mobileye 8 Connect should only be operated with 12VDC- 24VDC power. • Do not cover or obstruct the Mobileye 8 Connect vision sensor, the EyeWatch display, the control unit or the GPS unit. • Do not use the Mobileye 8 Connect for any purposes other than those described in this user manual.
Page 11: Data Collection
• To facilitate the provision of certain advanced features, including the advanced driver assistance system (ADAS) safety features referred to in this User Manual (“Safety Alerts”), the Mobileye 8 Connect collects and transfers to Mobileye road-related data and other relevant data. This data can include, for example, the location of traffic signs, traffic lights, and lane markings;...
Page 12: Cellular
• Do not insert or remove the SIM card when the Mobileye 8 Connect is powered on. • Do not cut or modify the SIM card as the Mobileye 8 Connect will not communicate with the card in this situation.
Page 13: Activating The Mobileye 8 Connect
Activating the Mobileye 8 Connect Mobileye 8 Connect is automatically activated upon vehicle ignition. After system activation, when the Mobileye 8 Connect EyeWatch main screen appears, this indicates that the system is now fully functional. ATTENTION: To prevent possible deterioration of the system's accuracy, do not remove or tamper with the vision sensor unit or the windshield mount.
Page 14: Mobileye 8 Connect Alerts
Mobileye ® 8 Connect Alerts Mobileye 8 Connect™...
Page 15: Forward Collision Warning - (Fcw)
Forward Collision Warning HOW DOES THE FCW WORK? The FCW provides an alert before a possible collision with the vehicle in front. The FCW alert is based on a calculation of the time-to-collision (TTC) with the vehicle ahead. The FCW includes 3 sensitivity levels with different TTC thresholds: up to 2.4 seconds up to 2.8 seconds Medium...
Page 16: Urban Forward Collision Warning - (Ufcw)
WHEN IS THE UFCW OPERATIONAL? The UFCW is operational when the system is active. The UFCW is enabled when the vehicle’s speed is under 30km/h (19mp/h). Mobileye may modify the configurations at any time upon its sole discretion. Mobileye 8 Connect™...
Page 17 HOW DOES THE UFCW AUDIO ALERT SOUND? At speeds under 30km/h (19mp/h) the system issues two short beeps. WHICH ICON REPRESENTS THE UFCW VISUAL ALERT? A red vehicle icon on the EyeWatch display. ALERT VOLUME LEVEL & SETTINGS The UFCW is a critical alert; therefore, it cannot be disabled or muted. The UFCW volume level can be set from 3-5.
Page 18: Pedestrian & Cyclist Collision Warning - (Pcw)
A pedestrian or a cyclist has been detected in an area defined as the "Danger Zone", but the Time-To-Collision is not critical. Therefore, a green pedestrian icon is displayed on the EyeWatch, but no audio alert sounds. Mobileye 8 Connect™...
Page 19 → PCW activation speed may be changed by Over-The-Air update at Mobileye's discretion → PCW detection at night will require a minimum light for the system's camera lens exposure. → The Mobileye 8 Connect may also detect other vulnerable road users (VRUs). User Manual...
Page 20: Lane Departure Warning - (Ldw)
The LDW includes a separated volume level that can be set using the EyeWatch advanced menu. The volume level can be set between 0 (mute) to 5. ALERT Sensitivity The LDW can be set to 3 sensitivity levels: = LDW is disabled Mobileye 8 Connect™...
Page 21 = Alert generated after the vehicle crosses the lane marking. = Alert generated when the vehicle touches the lane marking. LDW AVAILABILITY When the LDW is not available (driving speed is below this feature's activation threshold or lanes were not detected), a yellow lane icon appears on the EyeWatch.
Page 22: Headway Monitoring Warning - (Hmw)
0.6 seconds. WARNING: the vehicle icon changes to red when the headway is equal to or lower than the predefined headway time threshold, or at 0.6 seconds and lower. Mobileye 8 Connect™...
Page 23 WHEN IS THE HMW OPERATIONAL? A vehicle icon is shown whenever a vehicle is detected traveling in front of the vehicle equipped with Mobileye 8 Connect. The numerical display reflects the time in seconds until contact is made with the vehicle in front.
Page 24: Traffic Sign Recognition & Speed Limit Indication
It is indicated by a flashing speed limit sign icon. The detected speed limit sign appears as a large icon for one second, and it then minimizes to provide a reminder of the last speed limit notification (on the side of the display). Mobileye 8 Connect™...
Page 25 ALERT SETTINGS The SLI icon is set to flash when the vehicle exceeds the detected speed (depending upon the user configuration). Available thresholds for SLI start at the applicable speed limit and go to 30 above this level. There are increments of between: *0 –...
Page 26: Intelligent High-Beam Control (Ihc) (Optional)
• The vehicle enters a well-lit area, or streetlights are detected IHC AVAILABILITY When it the IHC feature is enabled, a green high-beam icon appears on the EyeWatch. When the IHC feature is on, the high-beam icon will be blue. Mobileye 8 Connect™...
Page 27 Note! → IHC is available only on selected vehicle models and may require additional payment. → IHC is available only if enabled during system installation. → IHC is available only in certain geographical areas. → Although EyeWatch indicates when the high beams are on, the high beam indication in the vehicle dashboard may not always be active when the IHC operates.
Page 28: Turn Signal Reminder (Optional)
9 km/h (5.5 mph). WHICH ICON REPRESENTS THE TURN SIGNAL REMINDER VISUAL ALERT? A turn signal icon flashes as long as this signal remains on and the vehicle speed is greater than 9 km/h (5.5 mph). Mobileye 8 Connect™...
Page 29 Note! → The Turn Signal Reminder is only available on selected vehicle models. → The Turn Signal Reminder Alert is disabled by default. It can easily be activated from the EyeWatch display unit, and the control advanced menu. User Manual...
Page 30: Virtual Bumper (Vb)
The user can adjust the VB Distance Sensitivity level from 1m to 4m (3.2 ft to 13.1 ft). WHEN IS THE VB OPERATIONAL? The VB is operational when Mobileye 8 Connect is active. The VB is enabled when the vehicle's speed range is between 0 km/h and 5 km/h.
Page 31 ALERT VOLUME LEVEL & SETTINGS The VB volume level can be set from 3-5; this is part of the general system volume settings). The VB cannot be muted; however, it can be disabled. It can be deactivated by setting the VB Distance Sensitivity level to "0". It is active in intervals of 1 meter.
Page 32: Eyewatch Control Panel
Changing the Brightness Level: 1. Press once. The Brightness Icon appears. 2. Press again. The Brightness Level Icon appears. 3. Press the , buttons to decrease or increase the brightness level. Mobileye 8 Connect™...
Page 33: Volume Control
4. Press again to exit and save new settings (or wait five seconds). There are five available levels Volume Control Press the button repeatedly to decrease the volume; Press the button repeatedly to increase the volume; Press and hold the button for 1.5 seconds to mute the volume.
Page 34: Fcw Sensitivty Menu
4. Press to choose sensitivity. Medium High 5. Press to confirm your choice. LDW Sensitivty Menu The LDW alert can be set to 3 sensitivity levels: 1. Press 2. Press until you see the (Lanes icon). 3. Press Mobileye 8 Connect™...
Page 35: Sli Sensitivty Menu
4. Press to choose a sensitivity level between (Disabled) 5. Press to confirm your choice. SLI Sensitivty Menu To reach the SLI menu, follow these steps: 1. Press 2. Press unti you see the (Traffic sign icon). 3. Press 4. Press to choose the sensitivity you want.
Page 36: Exit (To The Main Screen)
Exit (To the main screen) To reach the main screen: 1. Press 2. Press until you see the (Exit icon). 3. Press System Power To turn off/on the system: 1. Press and hold the button. Mobileye 8 Connect™...
Page 37: Eyewatch Advanced Mode
EyeWatch Advanced Mode To access the Advanced Mode Menu, follow these steps: 1. Press and keep these buttons pressed until the (setting icon) appears. 2. Press 3. Navigate between the features using the EyeWatch buttons. 4. To enter the relevant feature Press The Advanced Mode menu includes the following features: Virtual Bumper Sensitivity...
Page 38: Eyewatch Icons
Low Visibility Indication Displays during low visibility conditions (bad weather, direct sunlight, dirt on windshield, etc.). The Mobileye 8 Connect continues to work, however, its ability to detect may be reduced or limited. If low visibility persists, check for possible vision sensor obstructions such as dirt, humidity, etc.
Page 39 Wait a few minutes to allow the system to cool down. Turning on the air conditioner may help the system to cool down faster. Mobileye 8 Connect is equipped with a temperature sensor to protect against overheating or freezing and thus ensure proper system operation. The sensor is triggered to shut down the system when it senses a temperature above +95°c or below -20°c.
Page 40: License And Product Warranty
Limited Use License The software embedded in this Mobileye 8 Connect is the proprietary property of Mobileye Vision Technologies Ltd. The purchaser is granted only with a non-exclusive license to use the software as provided by Mobileye, and the purchaser shall not (a) modify, adapt, alter,...
Page 41: Limited Product Warranty
Subject to applicable laws, the Mobileye 8 Connect limited warranty (the "Limited Warranty") covers the original purchaser of this Mobileye 8 Connect installed on the vehicle (for which this Mobileye 8 Connect was purchased) against defects in material or workmanship for a period of one year from the date of purchase (or longer if required by the applicable law).
Page 42: Warranty Disclaimer
No representative, distributor, dealer or agent of Mobileye has the authority to make any representation, warranty, or agreement on behalf of Mobileye with respect to this Mobileye 8 Connect. No representation or warranty of any kind or nature is made by Mobileye beyond the Limited Warranty expressly included herein.
Page 43 2. Contact Mobileye if this Mobileye 8 Connect was purchased directly from Mobileye. All Mobileye products must be returned to Mobileye with prepaid freight. A return authorization number is required and may be obtained by contacting the Mobileye Customer Service.
Page 44 w ww. m ob i l eye.com Scan the QR code to see the most up-to-date online version...
