Fisher PLC-SW20 Owner's Manual

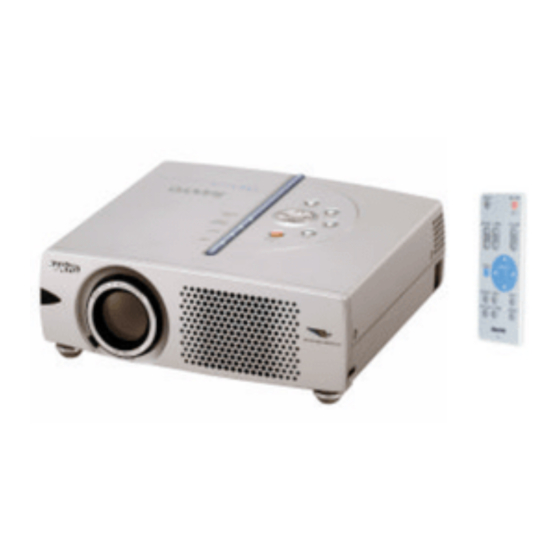

Sanyo fisher co. owner's manual multimedia projector plc-sw20
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multimedia Projector
PLC-SW20
MODEL
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Fisher PLC-SW20

Summary of Contents for Fisher PLC-SW20

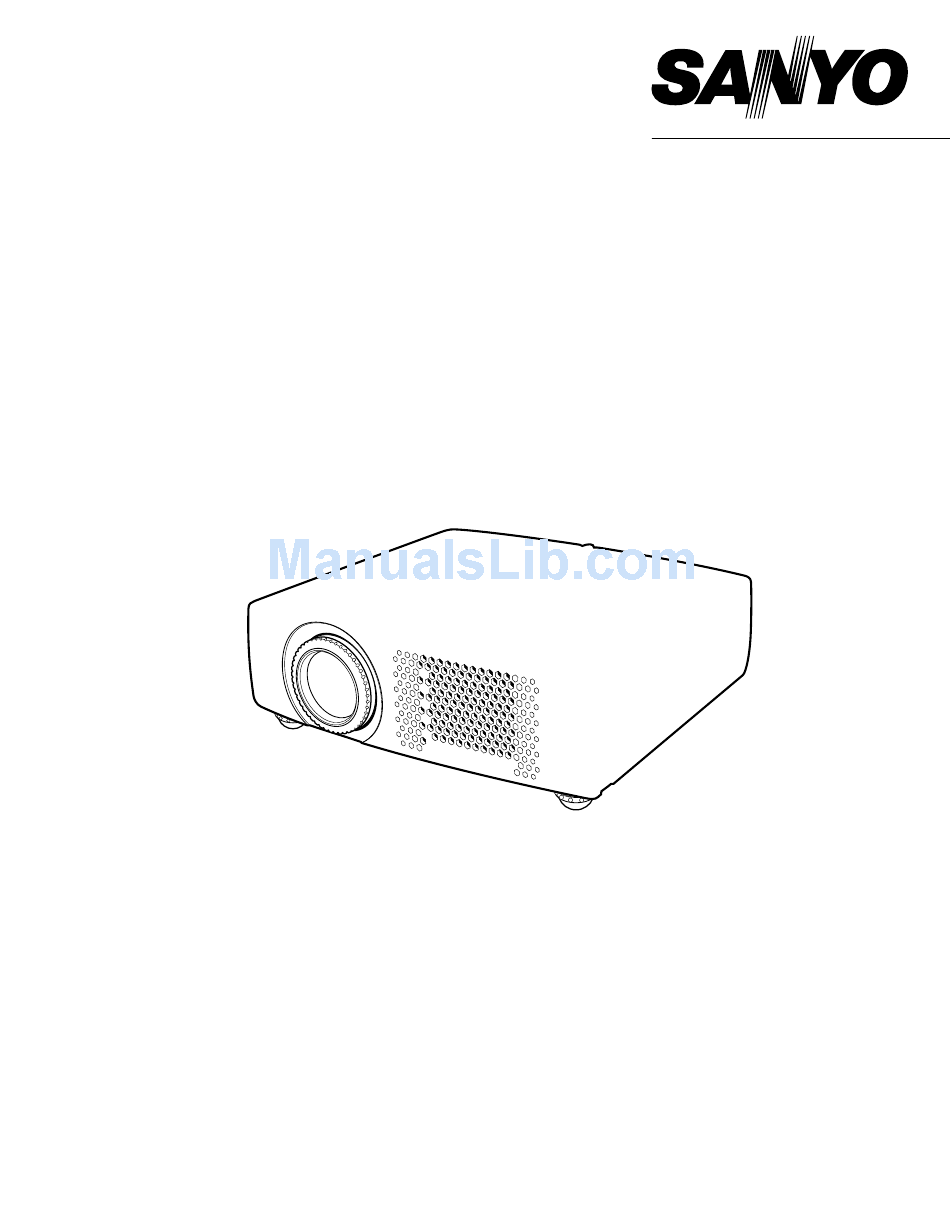

  • Page 1 Multimedia Projector PLC-SW20 MODEL Owner’s Manual...

  • Page 2: To The Owner

    Heat build-up can reduce the service life of your projector, and can also be dangerous. Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes. If the projector is not to be used for an extended time, unplug the projector from the power outlet.

  • Page 3: Safety Instructions

    Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 4: Federal Communication Commission Notice

    : (818)998-7322 AC POWER CORD REQUIREMENT The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FEATURES AND DESIGN PREPARATION NAME OF EACH PART OF PROJECTOR SETTING-UP PROJECTOR CONNECTING AC POWER CORD POSITIONING PROJECTOR ADJUSTABLE FEET MOVING PROJECTOR CONNECTING PROJECTOR TERMINALS OF PROJECTOR CONNECTING TO COMPUTER CONNECTING TO VIDEO EQUIPMENT BEFORE OPERATION OPERATION OF REMOTE CONTROL...

  • Page 6: Features And Design

    This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compact Design This projector is extremely compact in size and weight.

  • Page 7: Preparation

    PREPARATION NAME OF EACH PART OF PROJECTOR...

  • Page 8: Setting-Up Projector

    NOTE ON THE POWER CORD AC Power Cord must meet requirement of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

  • Page 9: Positioning Projector

    POSITIONING PROJECTOR This projector is designed to project on a flat projection surface. The projector can be focused from 5.3’(1.6m) ~ 26.6’(8.1m). Refer to the figure below to adjust a screen size. 5.3’ (1.6m) 34” 34” Screen Size (W x H) mm 690.9 x 518.2...

  • Page 10: Moving Projector

    When moving a projector, replace Lens Cover and retract Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the case (carrying bag) supplied with the projector.

  • Page 12: Connecting Projector

    16" MODE (832 x 624) 19" MODE (1024 x 768) 21" MODE (1152 x 870) ( = Cable or adapter is not supplied with this projector.) • MAC Adapter (When connecting to Macintosh computer) • Audio Cable (Mini Plug (stereo) x 1)

  • Page 13: Connecting To Video Equipment

    Audio Cable (Stereo) Audio Input External Audio Equipment Audio Speaker (stereo) Audio Amplifier ( = Cable is not supplied with this projector.) Component video output equipment. (such as DVD player or high-definition Video Disc Player Component Video Output S-VIDEO Output...

  • Page 14: Before Operation

    MENU SELECT NOSHOW FREEZE MUTE AUTO PC ADJ. P–TIMER IMAGE POWER ON-OFF BUTTON Used to turn the projector on or off. (P19) VOLUME BUTTONS Used to adjust volume. (P21) POINT BUTTONS Used to move the pointer on the MENU, to adjust the item, or to pan the image in DIGITAL ZOOM mode.

  • Page 15: Operating Range

    REMOTE CONTROL BATTERY INSTALLATION Replace with new battery. Install Pull out Battery Holder. with battery (+),(–) marks properly. BATTERY HOLDER To insure safe operation, please observe the following precautions : Use only specified battery. Improper battery may cause malfunction of Remote Control or improper battery's installation may cause explosion.

  • Page 16: Top Controls And Indicators

    BEFORE OPERATION TOP CONTROLS AND INDICATORS This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top. POWER ON–OFF BUTTON Used to turn the projector on or off. (P19) INPUT BUTTON Used to select input source. (P22, 30) MENU BUTTON Used to open or close MENU operation.

  • Page 17: Operating On-Screen Menu

    OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through ON-SCREEN MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU. 1 DISPLAY MENU Press MENU button to display ON-SCREEN MENU.

  • Page 18: Menu Bar

    Tint / White balance (R/G/B) / (Refer to P31) Sharpness / Gamma] (Refer to P33, 34) SCREEN MENU SETTING MENU Used to change settings of projector or reset Lamp Replace Counter. (Refer to P35, 36) SOUND MENU Used to adjust volume or mute sound.

  • Page 19: Basic Operation

    When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically. Refer to “Power Management” on page 36. When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on projector again.

  • Page 20: Adjusting Screen

    BASIC OPERATION Move ZOOM LEVER upward to make the image larger. Move ZOOM LEVER downward to make the image smaller. Rotate the FOCUS RING to adjust the projected picture focus. If a projected picture has keystone distortion, correct image with KEYSTONE adjustment. Press KEYSTONE button on Remote Control Unit or select Keystone on SETTING menu.

  • Page 21: No Show Function

    Press NO SHOW button on Remote Control Unit to black out the image. To restore to normal, press NO SHOW button again or press any other button. Press P-TIMER button on Remote Control unit. The timer display “00 : 00” appears on the screen and the timer starts to count time (00 : 00 ~ 59 : 59).

  • Page 22: Computer Input

    Computer and then press SELECT button. SELECTING COMPUTER SYSTEM This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 23). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting.

  • Page 23: Compatible Computer Specifications

    COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100 MHz of Dot Clock. H-Freq. ON-SCREEN RESOLUTION (kHz) DISPLAY VGA 1 640 x 480 31.47 VGA 2 720 x 400 31.47...

  • Page 24: Pc Adjustment

    Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P22). Refer to step 3 of MANUAL PC ADJUSTMENT section (P26).

  • Page 25: Manual Pc Adjustment

    Multi- Scan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.
  • Page 26 COMPUTER INPUT Display area Selects area displayed with this projector. Select the resolution at Display area dialog box. Display area H Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value to match the resolution of image.

  • Page 27: Picture Image Adjustment

    Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture adjustment preset on this projector. Real Picture adjustment improved in reproduction of halftones. This adjustment is suitable for providing better image in brighter place.

  • Page 28: Image Level Adjustment

    COMPUTER INPUT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to the item that you want to adjust. and then press SELECT button. The level of each item is displayed.

  • Page 29: Picture Screen Adjustment

    Closes IMAGE MENU. PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

  • Page 30: Video Input

    DIRECT OPERATION Choose Video by pressing INPUT button on Top Control or on Remote Control Unit. If projector cannot reproduce proper video source, select correct input source through MENU OPERATION (see below). MENU OPERATION Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

  • Page 31: Selecting Video System

    When Video System is PAL-M or PAL-N, select system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

  • Page 32: Picture Image Adjustment

    Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture adjustment preset on this projector. Cinema Picture level adjusted for the picture with fine tone. IMAGE 1~4 User preset picture adjustment in IMAGE ADJUST Menu (P33,34).

  • Page 33: Image Level Adjustment

    IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to the item that you want to adjust and then press SELECT button. The level of each item is displayed.

  • Page 34: Picture Screen Adjustment

    Closes IMAGE MENU. PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

  • Page 35: Setting

    Correct keystone distortion by pressing POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 20. Blue back When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off.
  • Page 36 After changing the code, make sure Remote Control operates properly. To return to the normal code (Code 1), operate both projector and Remote Control in the ways above again. NOTE : When battery of Remote Control Unit is replaced, the remote...

  • Page 37: Appendix

    Indicator stops flashing when the temperature of a projector returns to normal. When WARNING TEMP. Indicator continues to flash, check the items listed below. Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots are not obstructed.

  • Page 38: Lamp Replacement

    APPENDIX When the life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a projected image becomes dark or the color of an image becomes unnatural, replacement of Projection Lamp is required. Follow these steps to replace the lamp assembly.

  • Page 39: Troubleshooting

    4. If a projector still does not produce an image, re-start your computer. 5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn the computer and monitor off before you power up the projector.
  • Page 40 If the problem still persists after following all operating instructions, contact the sales dealer where you purchased the projector or the service center. Give the model number and explain the problem in detail. We will advise you of how to obtain service.

  • Page 41: Technical Specifications

    TECHNICAL SPECIFICATIONS Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Panel Resolution Number of Pixels Color System High Definition TV Signal Scanning Frequency Projection Image size (Diagonal) Horizontal Resolution Projection Lens Throw Distance Projection Lamp...
  • Page 42 APPENDIX CONFIGURATIONS OF THE TERMINALS COMPUTER INPUT TERMINAL (ANALOG) Terminal : HDB15-PIN Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the Macintosh computer, MAC Adapter (not supplied) is required. Pin Configuration CONTROL PORT CONNECTOR Terminal : Mini DIN 8-PIN Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable (not supplied).
  • Page 44 Printed in Japan Part No. 610 296 2017 (1AA6P1P2996-- MZ6A) SANYO Electric Co., Ltd...
