Meridian FIT-AOXIN-M7S-ABCD2E User Manual

Home gym multi
Hide thumbs

Advertisement

Quick Links

Download this manual
HOME GYM MULTI
STATION USER MANUAL
SKU: FIT-AOXIN-M7S-ABCD2E

Advertisement

loading

Related Manuals for Meridian FIT-AOXIN-M7S-ABCD2E

Summary of Contents for Meridian FIT-AOXIN-M7S-ABCD2E

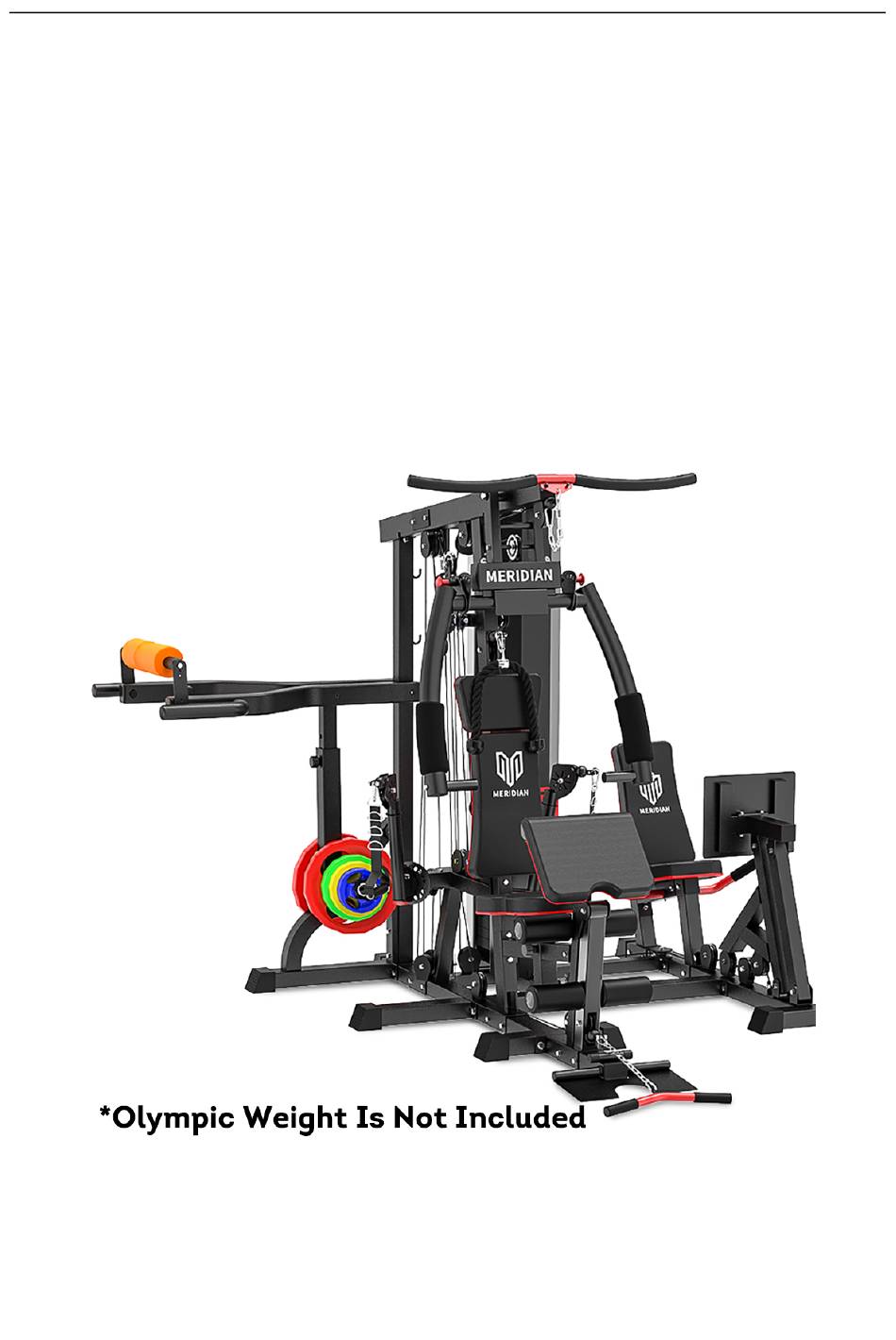

  • Page 1 HOME GYM MULTI STATION USER MANUAL SKU: FIT-AOXIN-M7S-ABCD2E...

  • Page 2: Table Of Contents

    CONTENTS Contents ......................1 Safety Instruction ..................2 Product Overview ..................3 Parts List ......................4-9 Assembly Instruction ................10-32 Daily Care & Maintenance ...............33 • Product may vary slightly from item pictured due to model upgrades. • Please check the packing details before assembly, if there is any missing part, contact after-sales service department for support.

  • Page 3: Safety Instruction

    Safety Instruction IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your machine before using your machine. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 4: Product Overview

    Product Overview GB17498.1 Executive Standard: - 3 -...

  • Page 5: Parts List

    Parts List Part Quantity Part Quantity Rear base frame Foot plate Front base frame Round tube Weight-plate base frame Low row bar Base junction plate Main leg press pivot Leg press base frame Front leg press pivot Side bottom frame Foot plate frame Front vertical frame Foot plate...
  • Page 6 Parts List Part Quantity Part Quantity Leg press seat pad Φ25 Circlip Φ8 Washer Foam roller tube (440mml) Φ10 Washer Chain (280mml) Φ12 Washer Hoist hook Φ10 Big washer Handle strap (with buckles) 2 Φ12 Big washer Tightening knob Φ10 Arc washer Pop pin (102mm) M10 Nut T-shaped knob...
  • Page 7 Parts List Part Quantity Part Quantity Squat adjustable frame Barbell collar (out) Squat bar pad Squat arm frame Squat connector Squat connecting rod Squat handle adjustable Squat adjustable frame (in) 1 lever - 6 -...
  • Page 8 Parts List - 7 -...
  • Page 9 Parts List - 8 -...
  • Page 10 Parts List - 9 -...

  • Page 11: Assembly Instruction

    Assembly Instruction Attention: Put the washers to the two ends of bolts, unless any s Finger tighten all bolts and nuts; do not spanner tighten firmly until this machine is fully assembled. Some components have been well pre-assembled in cartons. This machine is recommended to be installed by at least two adults.
  • Page 12 Assembly Instruction Picture 1: 1. Attach 9 “F50x70 Foot Caps” (#74) respectively to the Rear Base Frame (#1), the Weight-plate Base Frame (#3), the Base Junction Plate (#4) and the Side Bottom Frame (#6) 2. Slide two Guide Rods (#25) into the holes of Weight-plate Base Frame (#3), tighten them by using M10x20 Socket hex bolt (#100).
  • Page 13 Assembly Instruction Picture 2: - 12 -...
  • Page 14 Picture 2: 1. Attach both of Front Vertical Frame (#7) and Rear Vertical Dual Frame (#8) onto the Rear Base Frame (#1) by using: • M10x90 Hex bolt (#112) x 6 • Φ10 Washer (#93) x 8 • M10 Nut (#98) x 4 2.
  • Page 15 Assembly Instruction Picture 3: - 14 -...
  • Page 16 Picture 3: 1. Attach Top Main Frame (#9) to Front Vertical Frame (#7) and Rear Vertical Dual Frame (#8) as shown by using: • M10x90 Hex bolt (#112) x 4 • Φ10 Washer (#93) x 8 • M10 Nut (#98) x 4 2.
  • Page 17 Assembly Instruction Picture 4: - 16 -...
  • Page 18 Picture 4: 1. Attach Squat Outside Adjustable Frame (#124) and Squat Connector (#123) to Rear Vertical Dual Frame (#8) by using: • M10x105 Hex bolt (#117) x 2 • Φ10 Washer (#93) x 4 • M10 Nut (#98) x 2 2.
  • Page 19 Assembly Instruction Picture 5: 1. Attach Low Pulley Support Frame (#13) on the Rear Base Frame (#1) by using: • M10x90 Hex bolt (#112) x 1 • Φ10 Washer (#93) x 2 • M10 Nut (#98) x 1 2. Attach Low Pulley Frame (#12) on the Front Vertical Frame (#7) by using: •...
  • Page 20 Assembly Instruction Picture 6: Butterfly Cable 1. Attach left (#41) and right (#42) Butterfly Arm Sets to Butterfly Connector (#40) by using: • Φ19 Powdered metal bushing (#56) x 4 • Φ12 Washer (#94) x 2 • M12 Nut (#99) x 2 2.
  • Page 21 Assembly Instruction Picture 7: Lat Pulldown Cable 1. Route Lat Pulldown Cable (#85) (3790mml) around Pulleys (#73) as shown, ends at tightening with Selector Rod (#47). 2. Connect the Lat Bar (#39) and the head ball of Lat Pulldown Cable (#85) (3790mml) together by two hoist hooks (#65) and the chain (#64).
  • Page 22 Assembly Instruction Picture 8: Low Pulley Cable 1. Route Low Pulley Cable (#88) (5470mml) successively through rotatable bracket (#15), Φ25 circlip (#91), bracket washer (#52), φ25 guide rod bushing (#75), free motion arm (#14), low pulley frame (#12), pulley block (#51), support frame (#13), single pulley block (#46) with pulley (#73).
  • Page 23 Assembly Instruction Picture 9: - 22 -...
  • Page 24 Picture 9: 1. Attach Leg Extension Connector (#27) to Front Vertical Frame (#7) by using: • M10x90 Hex bolt (#112) x 2 • Φ10 Washer (#93) x 4 • M10 Nut (#98) x 2 2. Attach Leg Extension Frame (#26) to Front Base Frame (#2) by using: •...
  • Page 25 Assembly Instruction Picture 10: - 24 -...
  • Page 26 Picture 10: 1. Place two frame bushings (#71) on the Leg Extension Arm (#30) as shown, then connect them to the Leg Extension Frame (#26) by using: • M10x80 Hex bolt (#111) x 1 • Φ10 Washer (#93) x 2 •...
  • Page 27 Assembly Instruction Picture 11: Low Row Cable - 26 -...
  • Page 28 Picture 11 1. Twist off one end of Route Low Row Cable (#86) (5250mml), route the cable through while fixing the pulleys (#73) as shown. Then hang Ab Strap (#79) on the upper end of this cable (#86) by using a Hoist Hook (#65) 2.
  • Page 29 Assembly Instruction Picture 12: - 28 -...
  • Page 30 Picture 12: 1. Attach both of Front Leg Press Seat Pad Frame (#16) and Rear Leg Press Seat Pad Frame (#17) on the Base Frame (#5) by using: • M10x90 Hex bolt (#112) x 3 • Φ10 Washer (#93) x 6 •...
  • Page 31 Assembly Instruction Picture 13: Leg Press Cable - 30 -...
  • Page 32 Picture 13: 1. Attach all of Main Leg Press Pivot (#34), Front Leg Press Pivot (#35) and Foot Plate Frame (#36) on Leg Press Base Frame (#5) by using: • M10x75 Hex bolt (#110) x 4 • Φ10 Washer (#93) x 8 •...
  • Page 33 Assembly Instruction Picture 14: 1. Attach two Weight Stack Shroud (#90) on the Weight-plate Base Frame (#3) and under the Top Pulley Frame (#11) by using: • M8x16 Hex bolt (#102) x 4 • Φ8 Washer (#92) x 4 Finally: 1.

  • Page 34: Daily Care & Maintenance

    Daily Care & Maintenance Maintenance: Your home gym is designed to be reliable and easy to use. In order to extend the service life of the machine, its components must be lubricated on time. Lubrication has been done before the machine leaving factory, but after a certain period of usage, lubrication and maintenance must be carried on especially on the weight plate guide rods.
