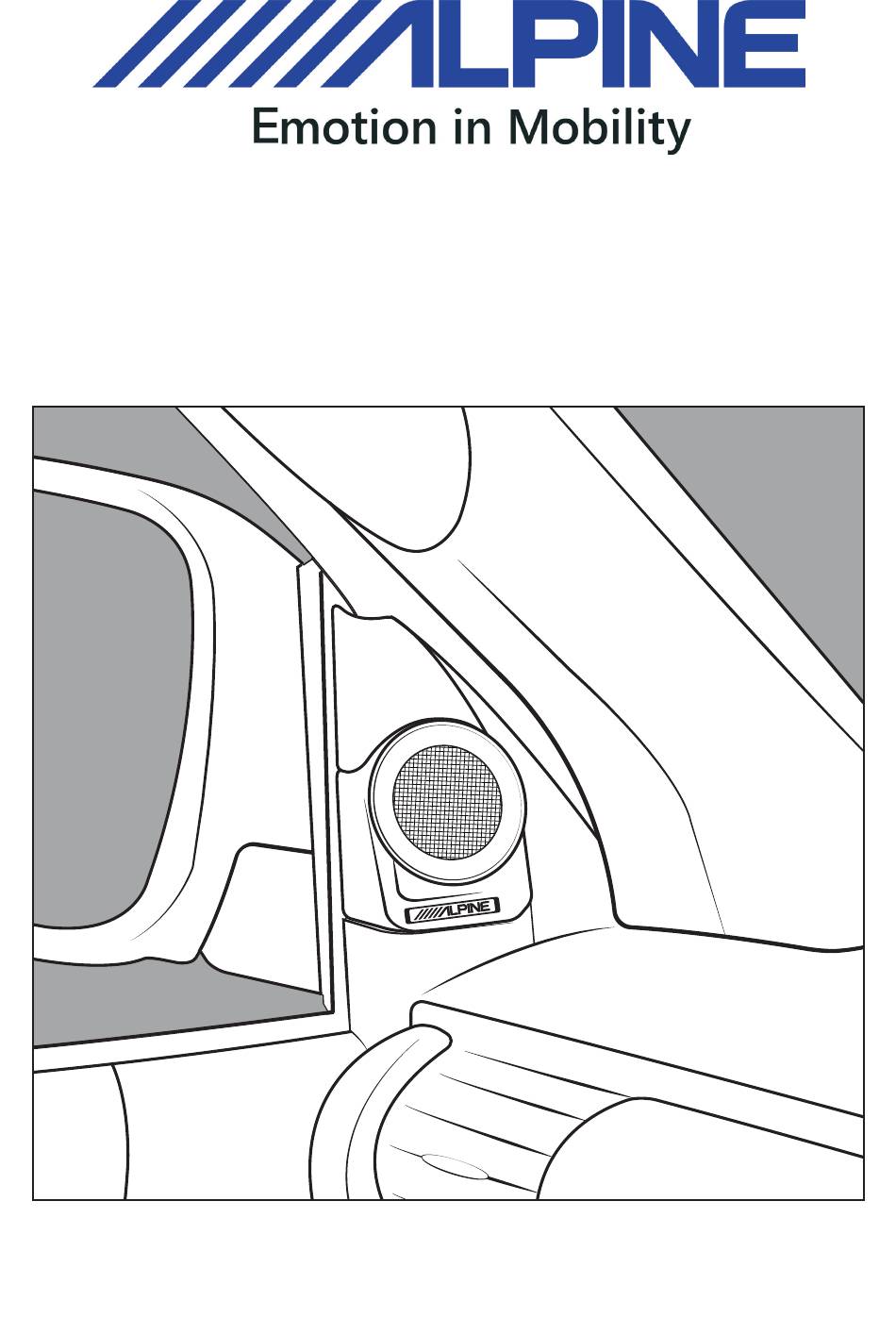

- Page 1 ALPINE PREMIUM SPEAKER SYSTEM HL15 - R65 / HL15 - S65 HL15 - R65 / HL15 - S65 HL20 - R65 / HL20 - S65 Installation Manual...
- Page 3 WARNING Before installing or connecting the unit, please read the following thoroughly for proper use. WARNING CAUTION MAKE THE CORRECT CONNECTIONS. USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Failure to make the proper connections may result in fire or product damage. Be sure to use only the specified accessory parts.
-
Page 4: Parts List
Parts List Alpine Tweeter Assembly Alpine Rear Speakers 2x Alpine Cross over Harnesses Alpine Front Speakers 2x Push Pin Clips 2x Cable Ties Tweeter Pod Assemblies (Retained) 4x Foam Adhesive 12x Rivets... -
Page 5: Required Tools
Required Tools Plastic Trim Removal Tool Flat Head Screw Driver Rivet Tool PH2 Screwdriver Side cutters Electric Drill... - Page 6 Disconnection Of Battery WARNING It is recommended to disconnect the cable from the negative battery terminal before proceeding with this installation.
- Page 7 Removal of Door Cards (Front) 1. Release the top and side push clips by prying the assembly out from the indicated locations with a trim removal tool. 2. Once the 2 push clips are released, pull outwards to release the third clip and remove the assembly.
- Page 8 Removal of Door Cards (Front) 3. The tweeter connector will release by compressing the locking tab with a flat head screwdriver, pull outward to decouple the connector from twetter assembly. 4. Remove the cover from behind the door handle by prying it from the edge using a trim removal tool.
- Page 9 Removal of Door Cards (Front) 5. Unscrew the phillips-head screw with a PH2 Screwdriver. 6. Using a trim removal tool pry upwards along the seem of the arm rest to release panel.
- Page 10 Removal of Door Cards (Front) 7. Unscrew the two phillips-head screws inside the pocket of the door card with a PH2 Screwdriver. 8. Remove control panel by prying upward with the plastic trim removal tool.
- Page 11 Removal of Door Cards (Front) 9. Release the window control panel by compressing the locking tab with a flat head screwdriver, pull outward to decouple the connector. 10. Unclip all door card clips using a plastic trim removal tool at indicated arrow areas.
- Page 12 Removal of Door Cards (Front) 11. Tilt the door card by the bottom edge and lift upwards to release the door card. 12. Behind the door trim is the door handle mechanism. Start by sliding out the retention colars indicated by 1. and 2. You can now turn and release the ball joint from their seated locations.
- Page 13 Removal of Speakers (Front) 13. Using a flat head screw driver compress the locking tab, and unplug the speaker wiring connector from the speaker assembly. 14. Drill through the 3 rivets holding speaker in place to allow factory speaker to seperate from door.
- Page 14 Removal of Speakers (Front) 15. Remove the factory speaker by levering it out from the bottom to release the clip holding it into the door.
- Page 15 Removal of Door Cards (Rear) 16. Remove the trim from the rear door using a plastic trim removal tool on the marked locations. 17. Remove the cover from behind the door handle by prying it from the edge using a trim removal tool.
- Page 16 Removal of Door Cards (Rear) 18. Unscrew the phillips-head screws with a PH2 Screwdriver. 19. Using a trim removal tool pry upwards along the seam of the panel to release arm rest.
- Page 17 Removal of Door Cards (Rear) 20. Unscrew the two phillips head screws. 21. Using a trim removal tool pry upwards along the seem of the panel to release the electric window control panel.
- Page 18 Removal of Door Cards (Rear) 22. Release the window control panel by compressing the locking tab with a flat head screwdriver, pull outward to decouple the connector. 23. Release all door card clips using a plastic trim removal tool at indicated arrow areas.
- Page 19 Removal of Door Cards (Rear) 24. Tilt the door card by the bottom edge and lift upwards to release the door card. 25. Behind the door trim is the door handle mechanism. Start by sliding out the retention colars indicated by 1. and 2. You can now turn and release the ball joint from their seated locations.
- Page 20 Removal of Speakers (Rear) 26. Using a flat head screw driver compress the locking tab, and unplug the speaker wiring connector from the speaker assembly. 27. Drill through the 3 rivets holding speaker in place to allow factory speaker to seperate from door.
- Page 21 Removal of Speakers (Rear) 28. Remove the speaker by levering it out from the bottom of the door panel.
- Page 22 Installation of Alpine Speakers (Rear) 29. Ensure you have the correct coaxial speaker (rear) before fitting. Secure the Alpine speaker assembly to the door. Re-install 3 of the rivets provided. 30. Plug the Alpine speaker assembly into the factory speaker connector.
- Page 23 Installation of Alpine Speakers (Rear) 31. Secure the mated connections to the door skin using one of the provided foam adhesive pieces. 25 - 16 32. Follow the ‘Removal of Door Cards (Rear)’ in reverse order to re-install the door...
- Page 24 Installation of Alpine Speakers (Front) 33. Ensure you have the correct component speaker (front) before fitting. Secure the Alpine speaker assembly to the door. Re-install 3 of the rivets provided. 34. Plug the Alpine speaker assembly into the factory speaker connector.
- Page 25 Installation of Alpine Speakers (Front) 35. Secure the mated connections to the door skin using one of the provided foam adhesive pieces.
- Page 26 36. Mate the Toyota 4pin connector which was previsouly plugged into the factory tweeter with the Alpine crossover harness. 37. Take the Alpine tweeter connector and run it to the Tweeter panel area. Then bundle excess wiring neatly and secure to factory wiring harness with a cable tie.
- Page 27 12 - 4 38. Follow the ‘Removal of Door Cards (Front)’ in reverse order to re-install the door cards. Noting step 40. 39. When remounting the door card ensure the tweeter harness is outside the panel. (as shown).
- Page 28 40. Release the push clip from the factory tweeter by pulling down and transfer it to the Alpine Assembly. 41. Connect the Alpine tweeter assembly to the factory tweeter connector and wrap a foam adhesive pad around the connection.
-
Page 29: Installation Complete
Installation of Alpine Speakers (Front) 42. Starting with the bottom edge mount the assembly by pushing the clips into the indicated locations. Installation Complete... - Page 30 Notes...
- Page 31 Notes...
- Page 32 ALPINE PREMIUM SPEAKER SYSTEM RN16 - S65 / RN16 - R65...
