Electrical Components

3. Electrical Components
Warning

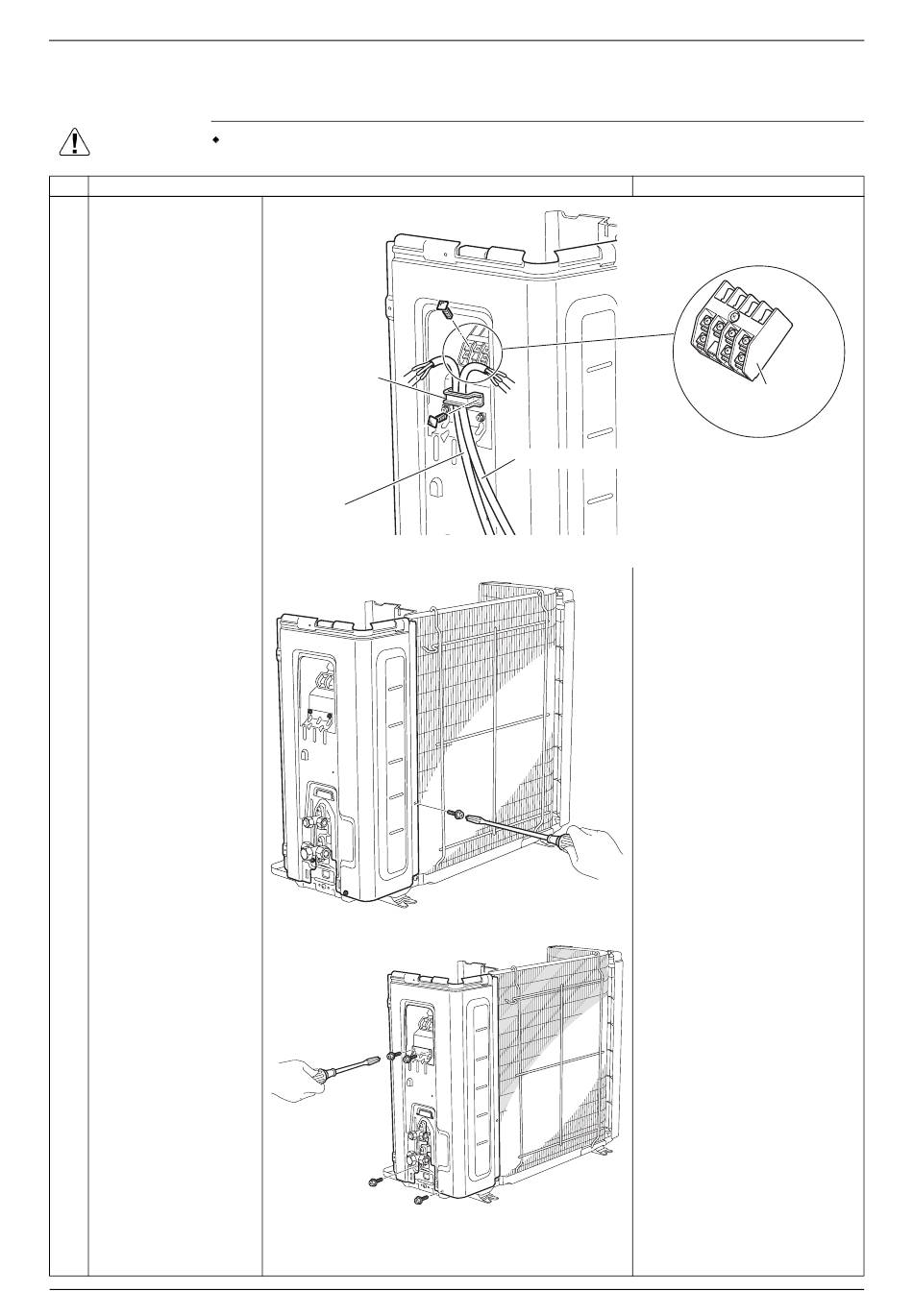

Step
Remove the 7 screws
1
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
Remove the screw and
2
remove the wire fixture.
3 Remove the screw on
the rear side.
4 Remove the 4 screws
on the right side.
6
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Wire fixture
Connecting wire
Power supply wire
(R19328)
(R15219)
(R20745)
Si011356EA
Points
Terminal board
Removal Procedure
