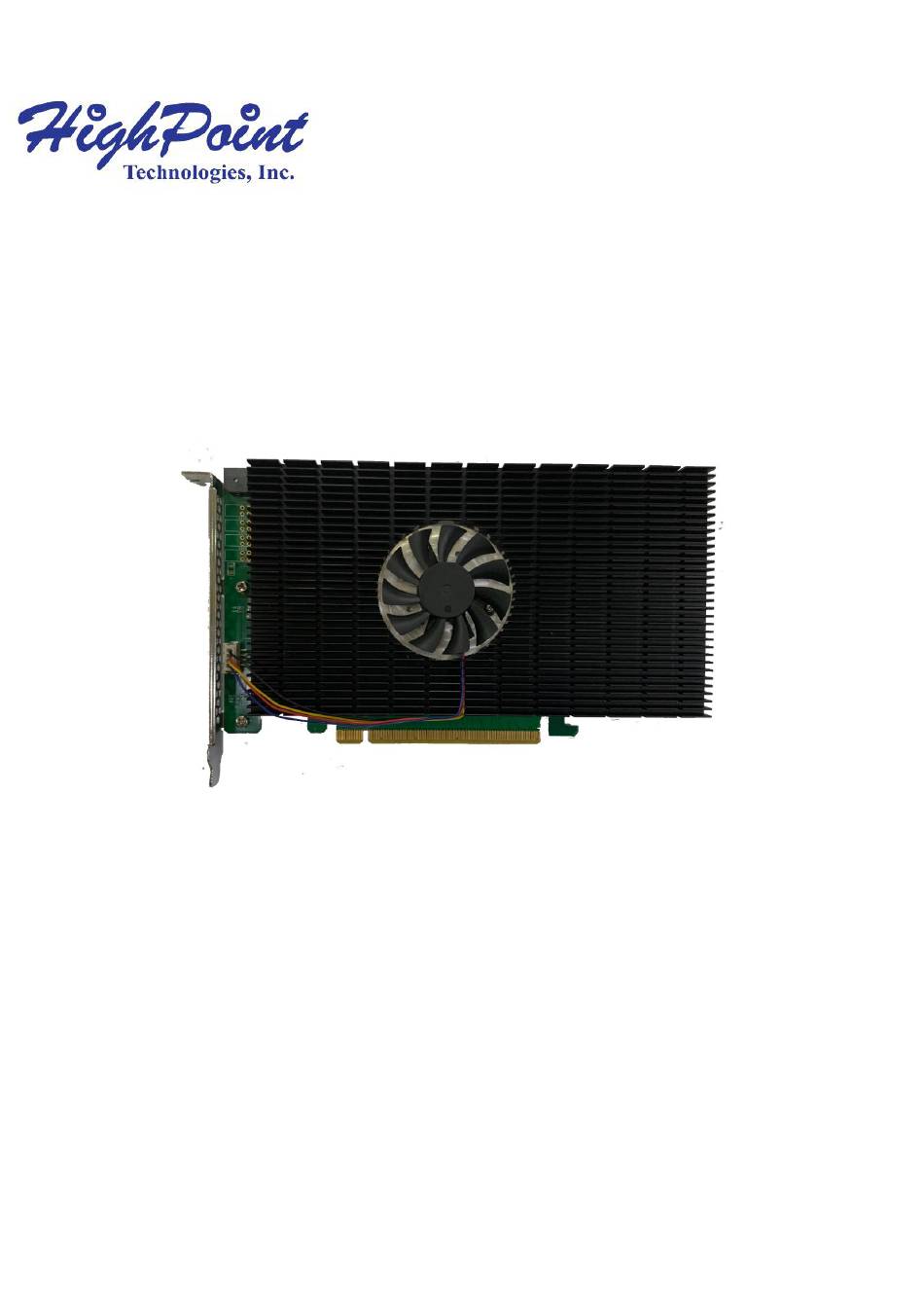

- Page 1 SSD7505 4x M.2 Port to PCIe 4.0x16 NVMe RAID Controller SSD7505 Quick Installation Guide V1.04...
-
Page 2: System Requirements
System with a free PCIe 4.0 x16 or PCIe3.0 x16 slot Windows 10, Windows Server 2016 and Windows Server 2019 Linux kernel 3.10 and later macOS 10.13 and later SSD7505 Kit Content SSD7505 Controller Card Quick Installation Guide ... - Page 3 SSD7505 Hardware Front View Full-Height form factor Anodized aluminum heat sink Low-Noise Cooling Fan PCIe 4.0 x16 Host Interface...
- Page 4 SSD7505 Hardware Installation: Step 1. On the rear of the SSD7505, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7505. Step 2. These 4 screws are used to install the NVMe SSD’s.
- Page 5 The following example shows four PCIe Gen4 SSD installed into Port 1, 2, 3 & 4; Step 6. Replace the heat sink after installing all SSDs Step 7. On the rear of the SSD7505, refasten the 6 screws that were removed in step 1.
- Page 6 Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7505. If the cover is improperly installed, the fan and thermal pad will be unable to sufficiently cool the NVMe SSD’s and controller componentry, which may result in damage...
- Page 7 Download link: SSD7505 Driver, WebGUI, Installation Guide https://highpoint-tech.com/USA_new/series-ssd7500-download.htm Other Reference Information: MotherBoard & NVMe SSD Compatibility List SSD7505 User Guide – How to Set up & Monitor RAID Array https://highpoint-tech.com/USA_new/series-ssd7500-resource.htm...
-
Page 8: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7505 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
