Using Film Holders to Digitize Industrial X-ray Films
Two film holders included in the digitizer package are designed to scan the
standard-size industrial X-ray film. These holders are 8.5" x 4.5" Film Holder and
12" x 3 1/3" Film Holder. To scan film, use the holder that correctly matches
the film size to be scanned. The use of the individual film holder is explained in
the succeeding pages of the manual.
Positioning Industrial X-ray Films

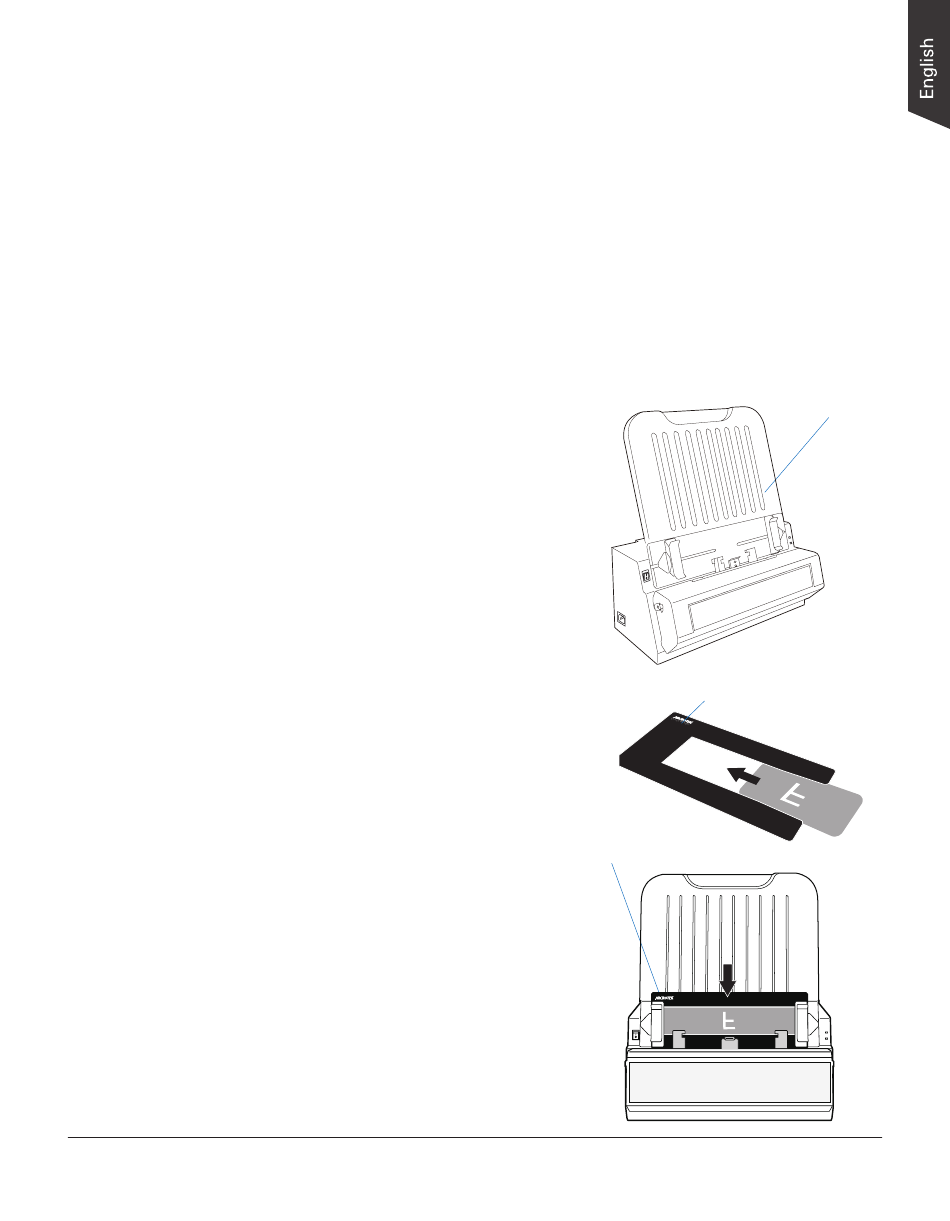

A. Using the 8.5" x 4.5" Film Holder
To scan 8.5" x 4.5" industrial film, use
the 8.5" x 4.5" Film Holder, which can
hold up to one piece of the 8.5" x 4.5"
industrial X-ray film at a time.
1. Install the Feed Tray onto your
2. Load the film face down inside the
3. Load and insert the 8.5" x 4.5" Film
4. Make sure that the Light Shield has
digitizer before using it. Refer to the
previous section "Installing the Feed
Tray" for the detail.
holder. Slide the film along the slot
of the holder until the film is fully
loaded.
Holder with loaded film into the Feed
Tray, with the side to be scanned
facing down and with the top of the
film directing downwardly.
Push the holder into the tray until the
edge of it touches the bottom edge of
the Feed Tray.
been pull up.
Microtek logo
Microtek logo
12.5" x 3 1/3" Film Holder
NDT-2000 User's Manual
Feed Tray
31
