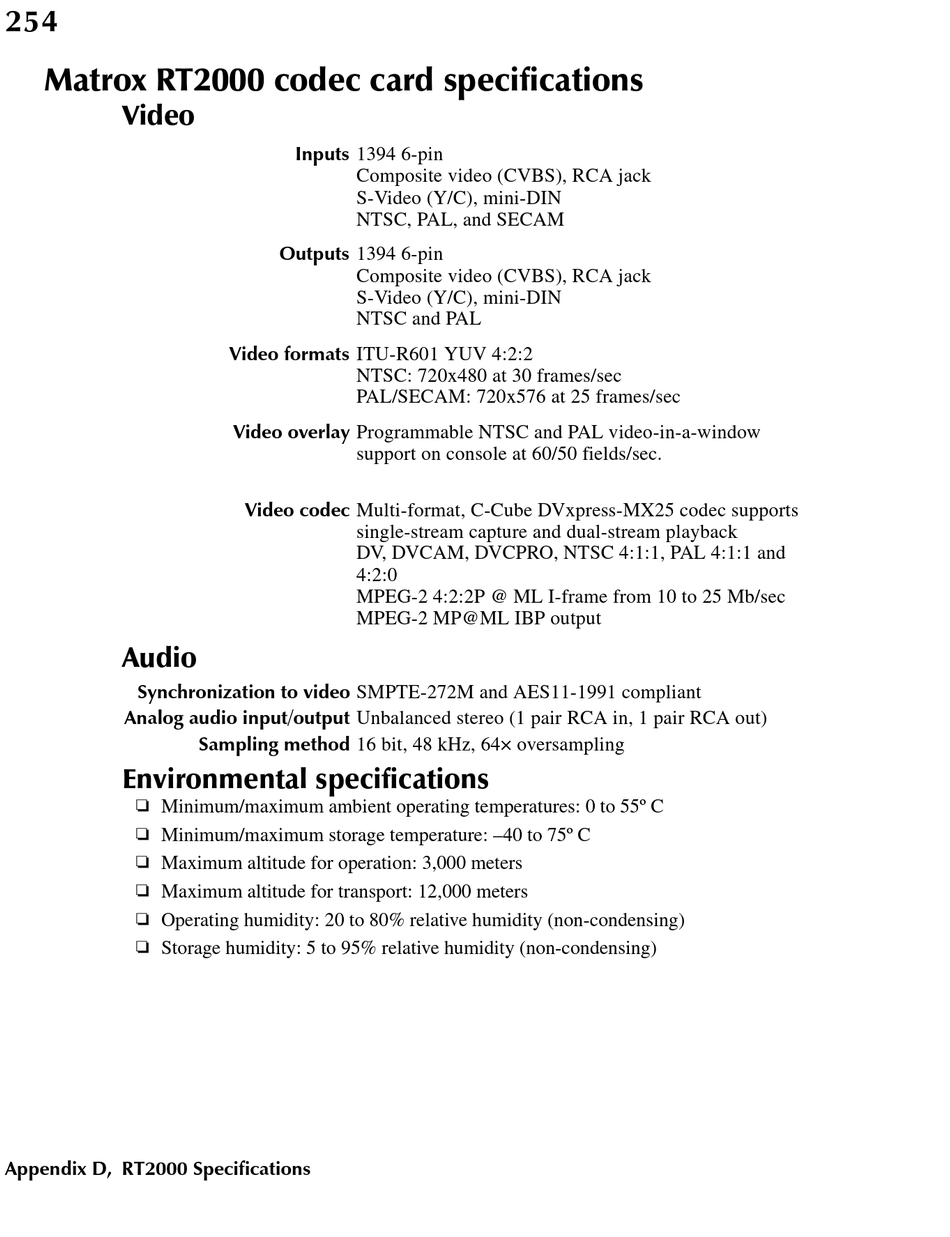

Matrox RT2000 codec card specifications
Video
Audio
Synchronization to video SMPTE-272M and AES11-1991 compliant
Analog audio input/output Unbalanced stereo (1 pair RCA in, 1 pair RCA out)
Environmental specifications
Minimum/maximum ambient operating temperatures: 0 to 55º C
✃
Minimum/maximum storage temperature: –40 to 75º C
✃
Maximum altitude for operation: 3,000 meters
✃
Maximum altitude for transport: 12,000 meters
✃
Operating humidity: 20 to 80% relative humidity (non-condensing)
✃
Storage humidity: 5 to 95% relative humidity (non-condensing)
✃
Appendix D, RT2000 Specifications
Inputs 1394 6-pin
Composite video (CVBS), RCA jack
S-Video (Y/C), mini-DIN
NTSC, PAL, and SECAM
Outputs 1394 6-pin
Composite video (CVBS), RCA jack
S-Video (Y/C), mini-DIN
NTSC and PAL
Video formats ITU-R601 YUV 4:2:2
NTSC: 720x480 at 30 frames/sec
PAL/SECAM: 720x576 at 25 frames/sec
Video overlay Programmable NTSC and PAL video-in-a-window
support on console at 60/50 fields/sec.
Video codec Multi-format, C-Cube DVxpress-MX25 codec supports
single-stream capture and dual-stream playback
DV, DVCAM, DVCPRO, NTSC 4:1:1, PAL 4:1:1 and
4:2:0
MPEG-2 4:2:2P @ ML I-frame from 10 to 25 Mb/sec
MPEG-2 MP@ML IBP output
Sampling method 16 bit, 48 kHz, 64× oversampling
