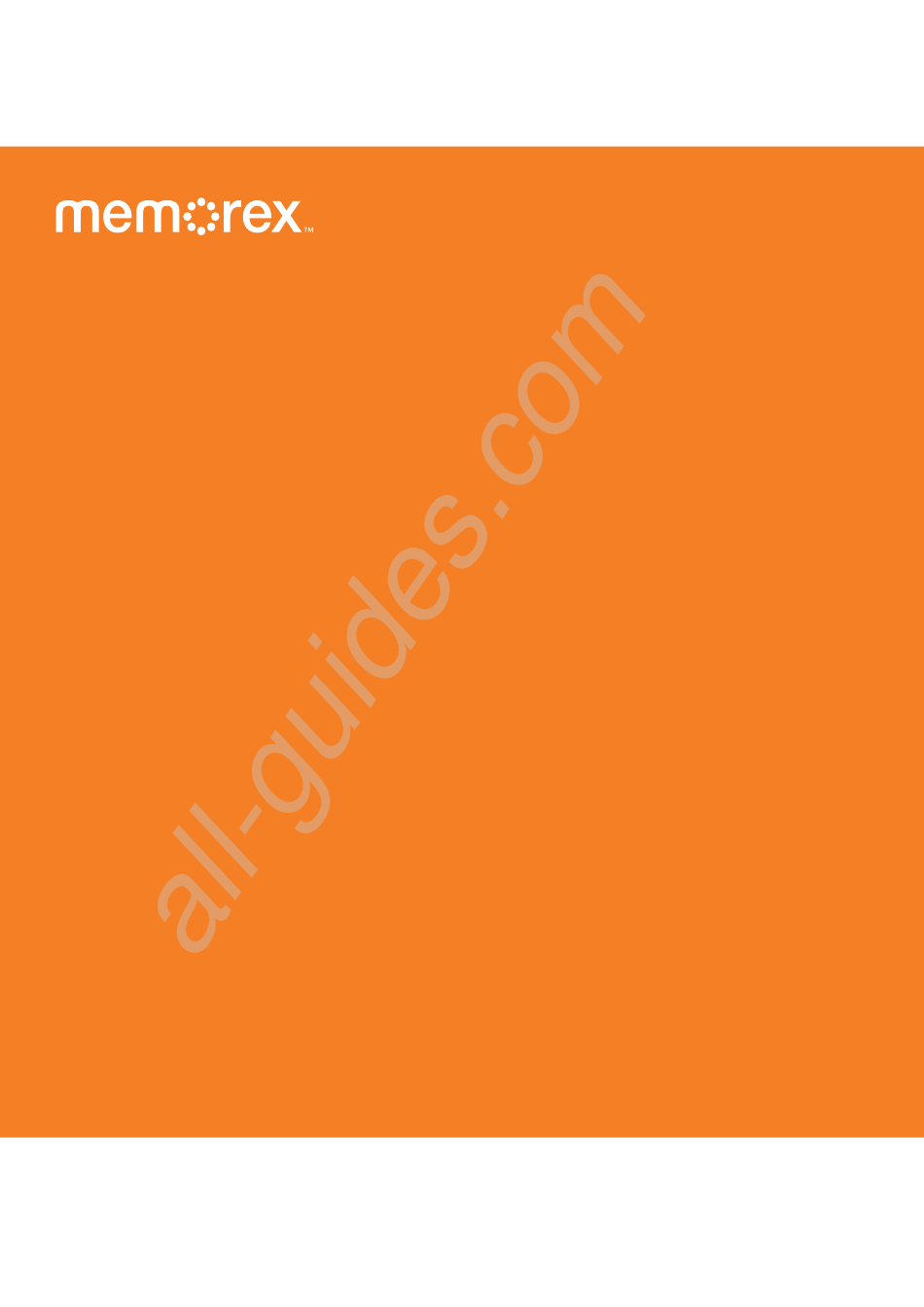

- Page 1 All manuals and user guides at all-guides.com Video Camera Digital Let’s Make Memories User Guide Please read these instructions completely, before operating this product. memorexelectronics.com MCC215...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com CONTENTS Contents ..........1 • Viewing the Version ......26 Safety Precautions ........2 • Setting the Icon .......27 Location of Controls ......4 • Turning the Audio Recording Using the Strap ........6 On and Off ........28 Getting Started ........7 •... -
Page 3: Safety Precautions
All manuals and user guides at all-guides.com SAFETY PRECAUTIONS FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. - Page 4 All manuals and user guides at all-guides.com SAFETY PRECAUTIONS Be sure to observe the following precautions when using the unit: • This unit works best when used in bright lighting, such as sunlight or a brightly-lit room. Results in dimly-lit areas will vary. •...
-
Page 5: Location Of Controls
All manuals and user guides at all-guides.com LOCATION OF CONTROLS REAR/INTERIOR AV CABLE PART NO. Up π Button E532R4POLAR0001* OK Button Display USB CABLE PART NO. Down † Button E531RAMTOMIN008* MENU Button Power Button *Consumer Replaceable Part Mode Control (See page 46 to order.) SHUTTER Button USB/TV OUT Jacks (Under Compartment) - Page 6 All manuals and user guides at all-guides.com LOCATION OF CONTROLS (CONTINUED) FRONT/SIDE Battery Compartment Strap Holders (BATTERY COVER PART NO. (HANDSTRAP PART NO. P337RBDV096C011*) K910RDV096C0001*) Speaker CD PART NO. K539RCD096C0001* Lens SD/MMC Card Slot (Bottom of *Consumer Replaceable Part Unit) (See page 46 to order.) Microphone...
-
Page 7: Using The Strap
All manuals and user guides at all-guides.com USING THE STRAP Insert the Velcro straps into each of the Press the velcro ends onto the straps to Strap Holders. adjust the length of the straps as desired. Fold over the Strap Flap and connect as shown. -
Page 8: Getting Started
All manuals and user guides at all-guides.com GETTING STARTED INSTALLING THE BATTERIES Remove the battery compartment cover by Slide the cover back on. sliding it off. Insert three (3) AAA batteries NOTE: When the batteries are low, the into the battery compartment, observing the battery low indicator will blink in the display. -
Page 9: Turning The Power On And Off
GETTING STARTED (CONTINUED) TURNING THE POWER ON AND OFF Press the Power button to turn the unit Press and hold the Power button until on. “Memorex” will appear briefly in the “Goodbye” appears in the display display. (approximately one second). -
Page 10: Inserting An Sd/Mmc Memory Card
All manuals and user guides at all-guides.com GETTING STARTED (CONTINUED) INSERTING AN SD/MMC MEMORY CARD (UP TO 2 GB) An SD/MMC card must be inserted in order to take pictures/videos with this camera. Insert the SD/MMC card with the label side facing the display side of the camera as shown. -
Page 11: Operation
All manuals and user guides at all-guides.com OPERATION TAKING A SINGLE PICTURE Press the Power button 1 to turn the Press the Up π button 1 to zoom in or unit on. Rotate the Mode control 2 to the Down † button 2 to zoom out as the Picture Taking position. -
Page 12: Changing The Picture Mode
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE PICTURE MODE Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Picture Taking position. Single Picture Continuous Three Pictures 10 Seconds Self-Timer... -
Page 13: Changing The Picture Resolution
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE PICTURE RESOLUTION Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Picture Taking position. 0.3 Mega Pixels 1.3 Mega Pixels 2.0 Mega Pixels (interpolated) -
Page 14: Changing The White Balance (P)
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE WHITE BALANCE Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Picture Taking position. Auto Adjusts White balance Under Sunlight Under Cloudy Skies... -
Page 15: Changing The Ev Compensation
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE EV COMPENSATION Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Picture Taking position. EV-1.5 EV+2 EV-2.0... -
Page 16: Viewing The Pictures
All manuals and user guides at all-guides.com OPERATION (CONTINUED) VIEWING THE PICTURES Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select other pictures. the Picture Viewing position. -
Page 17: Recording A Video
All manuals and user guides at all-guides.com OPERATION (CONTINUED) RECORDING A VIDEO Press the Shutter button and then the Press the Power button 1 to turn the unit will start recording the video and unit on. Rotate the Mode control 2 to the counter will start counting. -
Page 18: Changing The Video Resolution
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE VIDEO RESOLUTION Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Video Recording position. QVGA (Good Quality) VGA (Best Quality) Press the Up π... -
Page 19: Changing The White Balance (V)
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE WHITE BALANCE Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Video Recording position. Auto Adjusts White balance Under Sunlight Under Cloudy Skies... -
Page 20: Changing The Ev Compensation (V)
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE EV COMPENSATION Press the MENU button and the Press the Power button 1 to turn the settings will appear. unit on. Rotate the Mode control 2 to the Video Recording position. EV+2 EV-1.5 EV+1.5... -
Page 21: Viewing The Videos
All manuals and user guides at all-guides.com OPERATION (CONTINUED) VIEWING THE VIDEOS Press the Power button 1 to turn the Press the Up π button 1 or the Down † button 2 to select a video. Press the OK unit on. Rotate the Mode control 2 to button 3 to start playback. -
Page 22: Setting The Date And Time
All manuals and user guides at all-guides.com OPERATION (CONTINUED) SETTING THE DATE AND TIME Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Time Set the SET position. -
Page 23: Setting The Date/Time Stamp
All manuals and user guides at all-guides.com OPERATION (CONTINUED) SETTING THE DATE/TIME STAMP (ON PICTURES) Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to †... -
Page 24: Formatting The Sd/Mmc Card
All manuals and user guides at all-guides.com OPERATION (CONTINUED) FORMATTING THE SD/MMC CARD Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Format the SET position. -
Page 25: Setting The Light Frequency
All manuals and user guides at all-guides.com OPERATION (CONTINUED) SETTING THE LIGHT FREQUENCY Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Frequency the SET position. -
Page 26: Setting The Pc Camera/Mass Storage
All manuals and user guides at all-guides.com OPERATION (CONTINUED) SETTING THE PC CAMERA/MASS STORAGE Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the PC the SET position. -
Page 27: Viewing The Version
All manuals and user guides at all-guides.com OPERATION (CONTINUED) VIEWING THE VERSION Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Version. the SET position. -
Page 28: Setting The Icon
All manuals and user guides at all-guides.com OPERATION (CONTINUED) SETTING THE ICON Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Icon setting. the SET position. -
Page 29: Turning The Audio Recording On And Off
All manuals and user guides at all-guides.com OPERATION (CONTINUED) TURNING THE RECORDED AUDIO ON AND OFF DURING VIDEO PLAYBACK Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to †... -
Page 30: Changing The Tv System
All manuals and user guides at all-guides.com OPERATION (CONTINUED) CHANGING THE TV SYSTEM Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the TV System the SET position. -
Page 31: Default Setting
All manuals and user guides at all-guides.com OPERATION (CONTINUED) DEFAULT SETTING Press the Power button 1 to turn the Press the Up π button 1 or the Down unit on. Rotate the Mode control 2 to † button 2 to select the Default the SET position. -
Page 32: Connecting The Unit To A Tv
All manuals and user guides at all-guides.com CONNECTING THE UNIT TO A TV You can connect this unit to a TV using the supplied A/V cable. This will allow you to view the unit’s videos and pictures on a non-high definition (non- HD) television. -
Page 33: Computer Connection
All manuals and user guides at all-guides.com COMPUTER CONNECTION CONNECTING YOUR CAMERA TO YOUR PC: Once you have taken a few pictures/videos with your camera or as soon as the camera’s memory is full, you can download the files into your computer. Connect your camera to the PC, following these simple steps: 1. -
Page 34: Software Installation
All manuals and user guides at all-guides.com SOFTWARE INSTALLATION SUPPORTED OPERATING SYSTEMS This unit is compatible with Microsoft Windows XP (Home or Professional Edition with Service Pack 2 or higher) or Vista. • Before and while installing the software, make sure that you do not have the camera attached to your computer. -
Page 35: Installing Photoimpression And Videoimpression
All manuals and user guides at all-guides.com SOFTWARE INSTALLATION (CONTINUED) Installing PhotoImpression and VideoImpression 1. After completing the Driver installation, click “Photo & Video Editing”. 2. Click “Video Impression” and follow the on-screen instructions to install the VideoImpression software. 3. Click “Photo Impression” and follow the on-screen instructions to install the PhotoImpression software. -
Page 36: Downloading And Transferring Files
All manuals and user guides at all-guides.com DOWNLOADING AND TRANSFERRING FILES TRANSFERRING PHOTO/VIDEO FILES FROM THE UNIT USING DRAG AND DROP METHOD USING WINDOWS Turn on your computer. Turn on the unit. Connect the smaller end of the cable to the USB jack on the unit and the larger end of the cable to your USB port on your PC. -
Page 37: Using Photoimpression
All manuals and user guides at all-guides.com USING PHOTOIMPRESSION See below for basic instructions on using the PhotoImpression software. For full features/instructions, click the “?” (top right corner of the window) or visit Arcsoft’s website. 1. Click START c PROGRAMS c Arcsoft PhotoImpression4 c PhotoImpression4. -
Page 38: Using Videoimpression
All manuals and user guides at all-guides.com USING VIDEOIMPRESSION See below for basic instructions on using the VideoImpression software. For full features/instructions, click the “?” (top right corner of the window) or visit Arcsoft’s website. 1. Click START c PROGRAMS c Arcsoft VideoImpression 1.6 c VideoImpression 1.6. -
Page 39: Using The Unit As A Pc Cam
All manuals and user guides at all-guides.com USING THE UNIT AS A PC CAM 1. Set the Camera to PC Camera, as described on page 25. 2. Connect the camera to the computer as described on page 32. 3. Double click the “PC Camera” icon on your desktop, the screen at the right will appear. - Page 40 All manuals and user guides at all-guides.com USING THE UNIT AS A PC CAM (CONTINUED) 6. Use the following icons to capture and save still photos: Save Save As Start Capture Capture Frame Stop Capture Self-Timer 7. Click FILE –> START CAPTURE to start the preview. 8.
-
Page 41: Safely Removing The Hardware
All manuals and user guides at all-guides.com SAFELY REMOVING THE HARDWARE SAFELY REMOVING THE UNIT FROM THE COMPUTER NOTE: To avoid damage to the unit or data loss, always follow the procedure listed below before disconnecting the unit from the USB port on your computer. -
Page 42: Troubleshooting Guide
All manuals and user guides at all-guides.com TROUBLESHOOTING GUIDE If you experience a problem with this unit, check the chart below before calling for service. Symptom Possible Cause Solution Press the Power button for one Unit will not turn on. Power is off. - Page 43 All manuals and user guides at all-guides.com TROUBLESHOOTING GUIDE (CONTINUED) Can’t take video/picture. Memory is full. Delete some pictures/videos. Press the Power button for one Power is off. second to turn on. When connected to a TV, picture is poor. Options are set incorrectly.
-
Page 44: Formatting The Unit
All manuals and user guides at all-guides.com FORMATTING THE UNIT Formatting the Player WARNING! Do not format this player unless it stops working and you are instructed to do so by technical support personnel. 1. Use the USB cable to connect the player and the computer. -
Page 45: Resetting The Unit
All manuals and user guides at all-guides.com RESETTING THE UNIT If the unit acts erratically, reset the unit by removing the batteries for a couple of seconds and then reinserting. FOR FIRMWARE UPGRADE Please visit our Web site at www.memorexelectronics.com to check if there is new firmware available. -
Page 46: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS System Requirements and Compatibility • Operating System: For PC: Windows XP (SP2)/Vista • USB 1.1 • CD-ROM Drive If you have questions regarding your system specifications, please call your PC manufacturer. Camera Specifications Internal Memory ..................8MB External Memory ...........SD/MMC card, up to 2 MB Resolution ........640 x 480 to 2048 x 1536 (Interpolation) - Page 47 All manuals and user guides at all-guides.com FOR FIRMWARE UPGRADE, PLEASE VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM TO CHECK IF THERE IS NEW FIRMWARE AVAILABLE. FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: WWW.MEMOREXELECTRONICS.COM FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S) ON PAGES 4 AND 5 AND THEN CONTACT FOX INTERNATIONAL AT: 1-800-321-6993.
