REMINGTON
®
POWERHAMMER
Model 476
Operating
Instructions

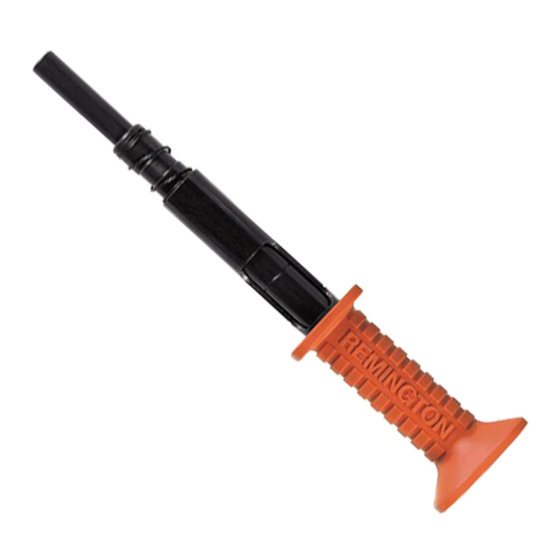

The Remington POWERHAMMER is
designed for use with Remington 22
caliber, Type A crimped power loads and
Remington Power Fasteners which are
no longer than 68mm (2 11/16").
Remington Power Fasteners are manu-
factured from special steel and heat
treated to produce a very hard, yet duc-
tile, fastener.
CAUTION:
Read this manual and all labels carefully
before operating your powder actuated
tool. This manual should always accom-
pany the tool and be transferred with it
upon change of ownership.
WARNING: This tool is de-
WARNING ICON
G 001
signed only for use by qualified opera-
tors. Qualification is obtained through a
thorough understanding of the Safety
Warnings and operating instructions as
defined in this operating manual.
Advertisement
Table of Contents
Related Manuals for Remington POWERHAMMER 476
Summary of Contents for Remington POWERHAMMER 476
- Page 1 POWERHAMMER Model 476 Operating Instructions The Remington POWERHAMMER is designed for use with Remington 22 caliber, Type A crimped power loads and Remington Power Fasteners which are no longer than 68mm (2 11/16"). Remington Power Fasteners are manu- factured from special steel and heat treated to produce a very hard, yet duc- tile, fastener.
-
Page 2: Safety Precautions
WARNING: Safety Precautions The following pages contain detailed warnings, cautions, and rules of safe operation. Read carefully and become familiar before operating to avoid seri- ous injury. We expressly disclaim any liability for any injury to persons or dam- age to property which result from your failure to take the precautions contained in this manual. - Page 3 Safety Precautions G 018 G 018 WARNING POWDER ACTUATED TOOLS IN USE!
- Page 4 Safety Precautions HANDLING THE TOOL NEVER place your hand over the muzzle. Accidental discharge can cause serious injury. ALWAYS store UNLOADED pow- der actuated tool and loads in a locked container. Keep power loads of different power levels in separate containers.
- Page 5 Safety Precautions G 018 G 018 G 018 G 018 G 018...
- Page 6 Safety Precautions KNOW YOUR FASTENING BASE MATERIAL ALWAYS know the thickness and type of base material into which you are fastening. NEVER GUESS. Test the base material by using the Center Punch Test. The Center Punch Test is performed by using a hammer to test drive the particular fastener to be used into the mate- rial.
- Page 7 Safety Precautions CENTER PUNCH TEST Sinks in Point with flattens average hammer blow TOO HARD TOO SOFT G 018 G 018 Start Surface BROWN GRAY shatters GREEN TOO BRITTLE G 018 YELLOW GLASS CAST TILE BRICK IRON G 018 G 018 G 018...
- Page 8 Safety Precautions NEVER drive fasteners into thin or easily penetrated materials unless it is backed by concrete or steel. When in doubt, such as when base material is concealed, conduct a Center Punch Test. Check continu- ally to avoid fastening into unsuit- able material, especially in older buildings.
- Page 9 Safety Precautions G 018 G 018 76 mm 3" 76mm 3" 76mm 76mm 3" 3" WELD 25 mm 12.7 mm 1" 1/2" TOO THIN 4.8 mm MIN 3/16" G 018 G 018...
-
Page 10: Operating The Tool
Safety Precautions OPERATING THE TOOL ALWAYS hold tool perpendicular to work surface. Should the tool fail to fire, hold the muzzle firmly against the work sur- face for 30 seconds. Then remove the tool, eject the load and safely discard the misfired load into water or oil. - Page 11 Safety Precautions 90° WATER Spall Shield G 018 GASOLINE LINE 482-49 G 018 G 018 G 018 G 018 482-51...
- Page 12 Safety Precautions Remington Power Loads are avail- able in four power levels with gray (1) being the lowest power level and yel- low (4) being the highest power level. Always start with the lowest power level (gray-level 1) and increase until a proper fastening is made.
- Page 13 Safety Precautions Start GRAY BROWN GREEN 482-53 YELLOW NOTE: Failure to start with the lowest power level can result in overdrive condition and will result in damage to tool. D E R P O W L O A 482-54 482-55 G 018 G 018 POWER...
-
Page 14: Why A Fastener Holds
Safety Precautions NEVER use fasteners longer than 68mm (2 11/16"). NEVER use com- mon nails. Remington Power Fas- teners are manufactured from spe- cial steel and heat treated to pro- duce a very hard, yet ductile fas- tener. Remington tools drive flat- headed fasteners. - Page 15 Safety Precautions Head Shank G 018 Plastic Flat-headed Dome-headed Flute G 018 LOAD UNLOAD Overdriven Fasteners An overdriven fastener results when too strong of a power load is used causing the piston to extend past the muzzle. Move to the next lightest power load. Repeated overdrive will damage your tool.
-
Page 16: Operation
Grab the muzzle and pull forward until it stops. This sets the piston and opens the chamber area. Insert the proper Remington Power Load into the chamber, while holding the muzzle downward. Be sure to keep holding the muzzle downward and away from you. - Page 17 Operation Chamber Muzzle Firing Grip Barrel LOADING Firing Line Up Grooves Spring Must Be Compressed FIRING EJECTING Continued...
- Page 18 Operation After the fastening is made, remove the tool from the work surface. Grab the barrel and pull forward rapidly. This ejects the spent load and sets the piston in the firing position. NOTE: THE TOOL CANNOT BE FIRED IN THE OVERHEAD POSI- TION.
-
Page 19: Limited Warranty
Limited Warranty SGB Youngman warrants this Remington Model 476 POWERHAMMER against defects in materials and workmanship for a period of 30 days from the date of purchase. This warranty extends only to the original purchaser of the POWERHAMMER and only applies if the POWERHAMMER... - Page 20 IMPORTANT This tool is designed to use 22 caliber neck-down crimped loads, power levels 1 (gray) through 4 (yellow). 15.9 mm 5/8" G 018 Neck-Down Straight Wadded Crimped Power Power Load Load CAUTION WARNING ICON G 001 Do not use any load other than the 22 caliber neck-down crimped power load.
