Summary of Contents for FastCraft 57310

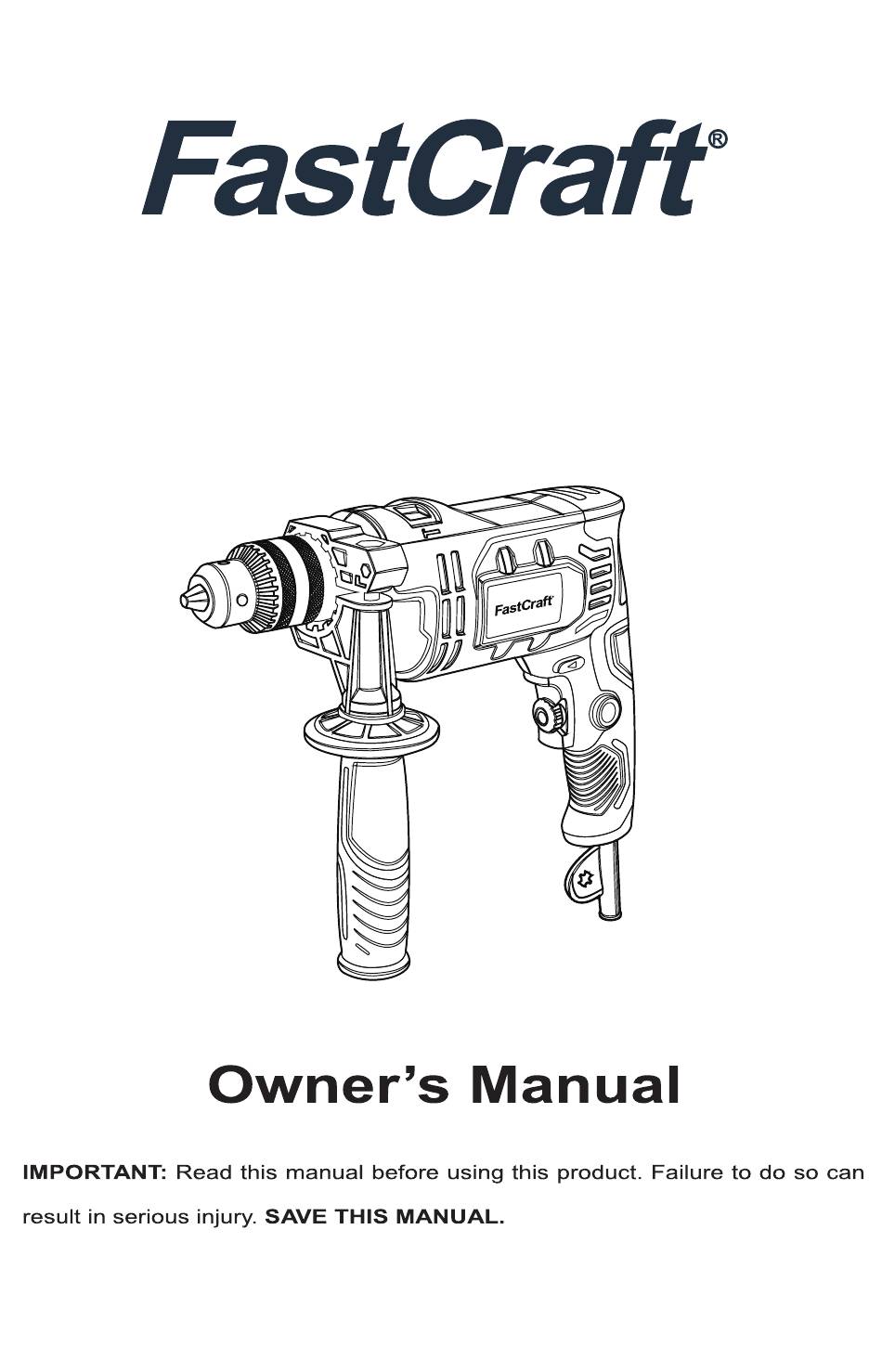

- Page 1 IMPACT DRILL Model 57310...
- Page 3 General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″ power tool ″ in the warnings refers to your mains-operated (corded) power tools or battery-operated (cordless) power tools.
- Page 4 :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB) 3.Personal Safety a.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 5 power tool accidentally. d.Store idle power tools out of the reach of children and do not allow persons unfa- miliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e.Maintain power tools.
- Page 6 j.Keep your hands away from under the workpiece. k.Never use your hands to remove dust, chips or waste close by the bit. l.Rags, cloths, cord, string and the like should never be left around the work area. m.If you are interrupted when operating the drill, complete the process and switch off before looking up.
- Page 7 SYMBOL DESCRIPTION Class II construction Double Insulated construction Read the manual before set-up and/or use. Wear safety glasses, ear protection and respiratory protection. Use dust mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos.
- Page 8 8.Operation a .Power Supply Power tool plugs must match the outlet. Do not use any adapter plugs with earthed power tools, Check the power supply, operation power should be a little less than rated power says on the name plate. b.Auxiliary Handle And Depth Gauge : Always ensure that the drill is switched off and plug is removed from the power point before...
- Page 9 2)Continuously operation： ON: Depress the trigger switch and the lock on button OFF: Release the trigger switch ) to the end of a vacuum hose. 3)To adjust the drilling speed： This tool has a variable speed switch that de- l i v e r s h i g h e r s p e e d a n d t o r q u e w i t h increased trigger pressure.
- Page 10 NOTE: The first time the tool is run after changing the direction of rotation, you may hear a click on start up. This is normal and does not indicate a problem. 11.Hammer Action Selector ●To select hammer action for drilling in ma- sonry, set the hammer action selector fully to the right marked with symbol ●To select drill mode for drilling in wood and...
- Page 11 4)When drilling through holes, place a block of wood behind the work piece to prevent ragged or splintered edges on the backside of the hole. b.DRILLING METALS 1)For maximum performance, use HSS drill bits for metal drilling. 2)Clamp the workpiece securely. 3)Set the tool to the drill mode.
- Page 12 13.Maintenance Never use aggressive detergents or solvents for cleaning. a.To prevent accidents, always unplug the saw from the power source before cleaning or performing any maintenance the saw may be cleaned most effectively using compressed air.Always wear safety goggles when using compressed air. If compressed air is not available, use a brush to remove dust and chips from the saw.
- Page 13 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain,damaging your health and well-being 16.After sales For questions about this or any other Fast Craft Products, please email us: FastCraft @nyclcompany.com. .11.
- Page 14 .12.
