GE Profile PP942SMSS Dimensions And Installation Information

PP942SM
GE Profile 30" Built-In CleanDesign Electric Cooktop
™

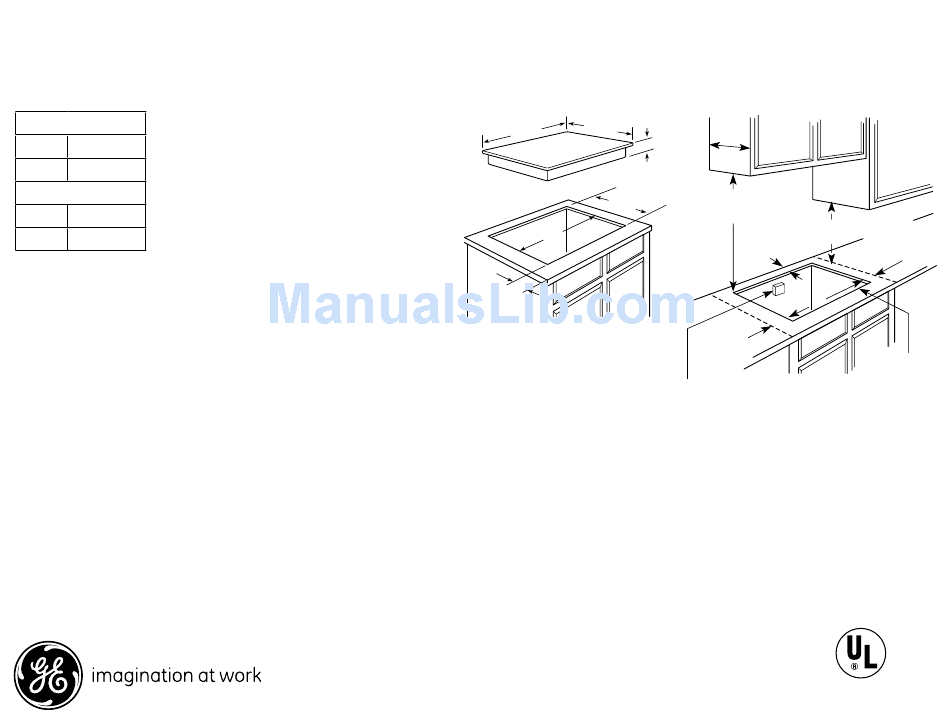

Dimensions and Installation Information (in inches)
Note: Check local codes for required breaker size
†
KW Rating
Important: Requires a 5" free area between
240V 7.8
the bottom of the cooktop to any combustible
208V
5.9 material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Breaker Size
Refer to installation instructions. Requires a
240V 40 Amps
15" minimum from cooktop to adjacent
†
overhead cabinets. Units are furnished with
208V 30 Amps
†
a 48" flexible armored cable.
Note: 30" Ribbon cooktops are approved for use over select GE 30" Single
Wall Ovens and Warming Drawers. All 30" ribbon cooktops can be installed
over 27" wall ovens and warming drawers. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile
consult both the cooktop and downdraft installation instructions packed
with product before installing. Cooktop gas/electric supply may need to be
re-routed to install downdraft. The countertop must be at least 26" deep with
a flat surface area of 23-1/2" or more, front to back. In addition, other
clearances to the front edge of the countertop must be considered.
Consult cabinet and countertop manufacturer's specs for flush mount
installation prior to install.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
™ Telescopic Downdraft System,
GE Profile ™ or
service,
®
21-1/2
29-7/8
Cooktop
19-5/8
28-1/2
2-1/2**
Required
* Depth of unit at conduit connection location (rear) is
6-1/2" on models PP980/950 and 4-5/8" on models
PHP900/PP975/972/962/945/942/932/912,
JP655/356/346.
**Raised bull nose countertops may require up to
3/8" additional clearance to prevent interference
with curved front.
30_ss_cktp_install.eps
13" MAX.
depth
3-1/4*
30" MIN. to
unprotected
cabinet
15" MIN.
to cabinet
1-3/4" to
rear wall
1-1/2" MIN.
clearance to
side wall
from cut-out
Electrical junction box 16" MIN.
below countertop
Specification Revised 12/07
1-1/2" MIN.
clearance to
side wall
from cut-out
Cut should
not interfere
with cabinet
structure
at front
Listed by
Underwriters
Laboratories
220587
