GE JGBS20BEHCT Dimensions And Installation Information

GE Appliances
JGBS20BEH – GE ® 30" Free-Standing Standard Clean Gas Range

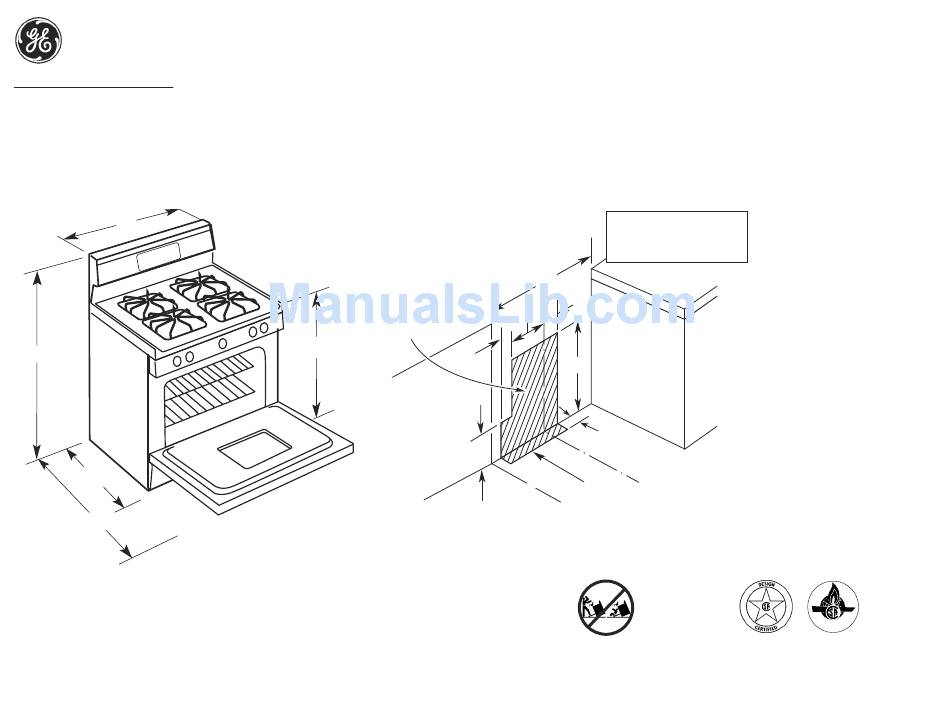

Dimensions (in inches) and Installation Information
30
46-7/8
26-1/4*
46-3/8
*Dimension from wall to front of closed door handle is 29" .
Depth to front top edge of cooktop – 25-1/4" .
Specification Created 5/03
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36±1/4
4
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
24
2
9
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
For answers to your Monogram,
GE appliance questions, visit our website at
®
GEAppliances.com or call
GE Answer Center
Factory set for Natural gas. A set of
LP orifices is included with each
range for LP conversion.
Gas Self-Clean Range
Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
CERTIFIED
® GE Profile ™ or
® service, 800.626.2000.
