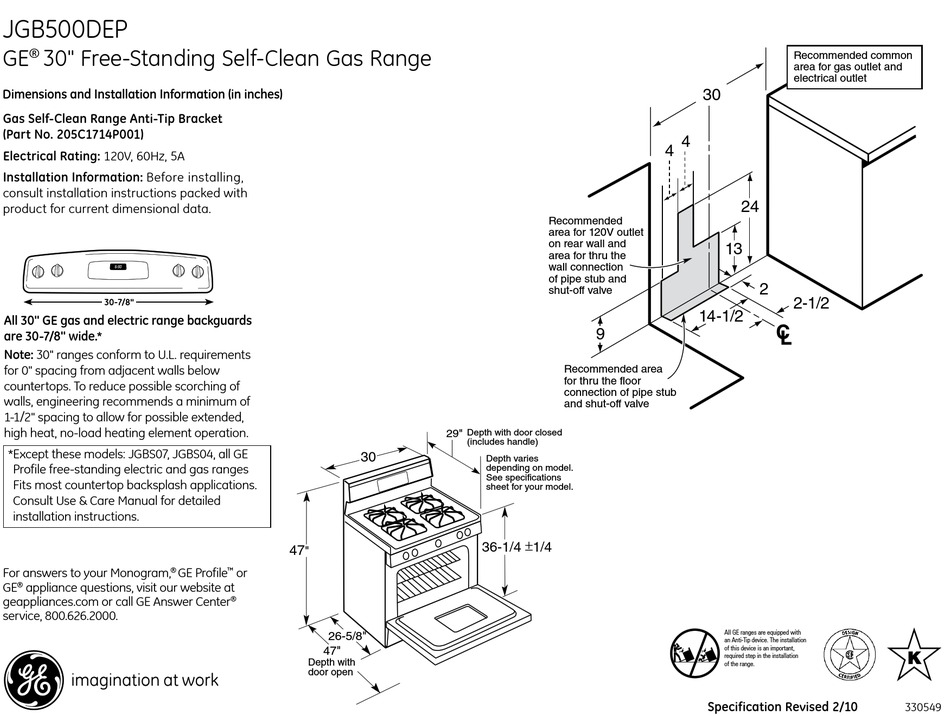

JGB500DEP
GE 30" Free-Standing Self-Clean Gas Range
®
Dimensions and Installation Information (in inches)
Gas Self-Clean Range Anti-Tip Bracket
Depth with
(Part No. 205C1714P001)
door open
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
26-5/8"
47"
30
47
"
or
™
®
26-5/8"
47"
Depth with
door open
36-1/4 ± 1/4
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
29" Depth with door closed
(includes handle)
Depth varies
depending on model.
See specifications
sheet for your model.
36-1/4 ± 1/4
Recommended
area for 120V outlet
on rear wall and
area for thru the
30
4
4
24
13
2
14-1/2
9
Recommended common
area for gas outlet and
electrical outlet
All GE ranges are equipped with
30
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
4
4
Specification Revised 2/10
24
13
Recommended common
area for gas outlet and
electrical outlet
2-1/2
330549
