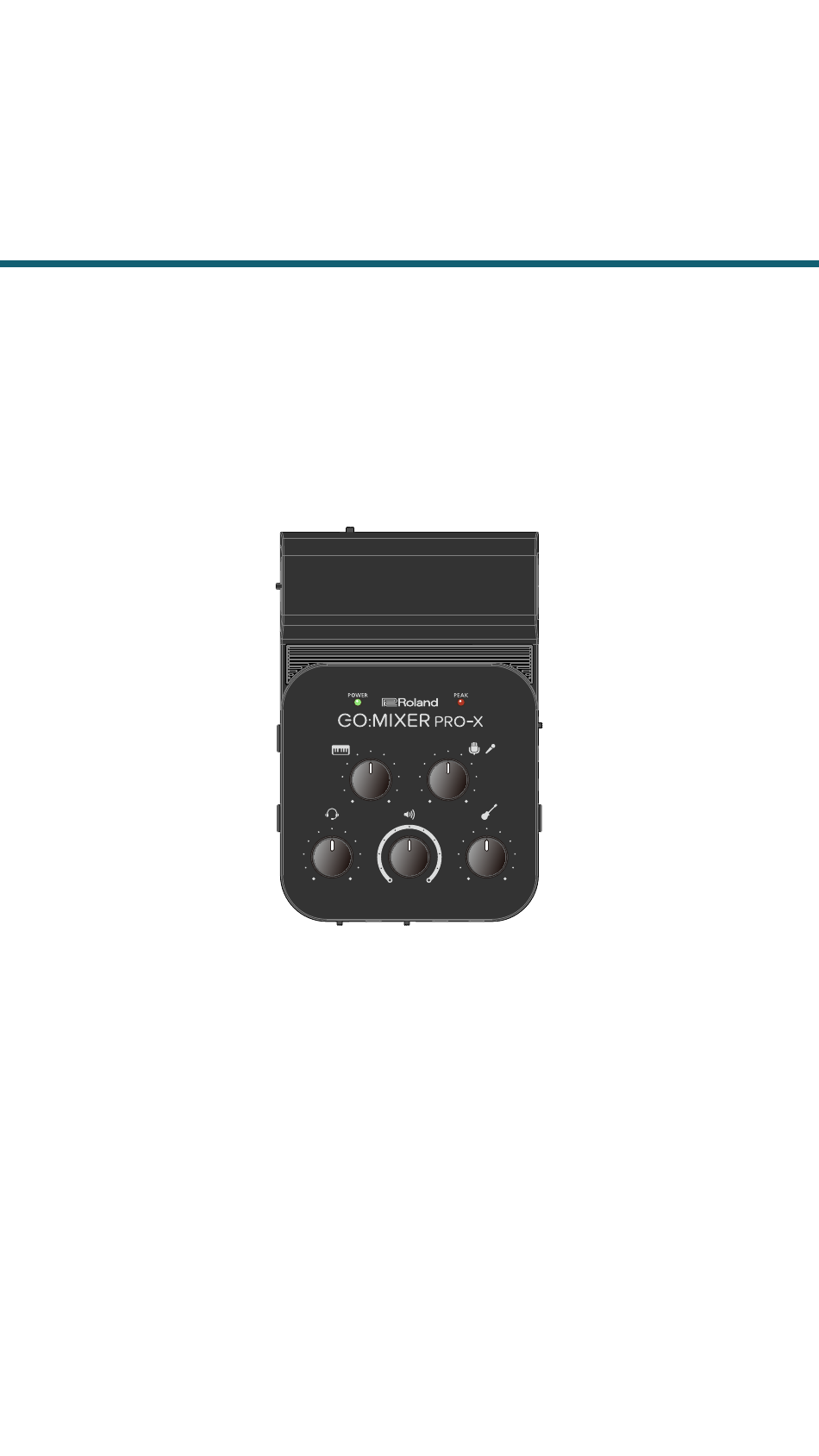

GO:MIXER PRO-X
Owner's Manual
01
Before using this unit, carefully read the leaflet
"USING THE UNIT SAFELY" and "IMPORTANT
NOTES. " After reading, keep the document(s) where
it will be available for immediate reference.
© 2021 Roland Corporation

Advertisement

Table of Contents
loading

Related Manuals for Roland GO:MIXER PRO-X

Summary of Contents for Roland GO:MIXER PRO-X

  • Page 1 GO:MIXER PRO-X Owner’s Manual Before using this unit, carefully read the leaflet “USING THE UNIT SAFELY” and “IMPORTANT NOTES. ” After reading, keep the document(s) where it will be available for immediate reference. © 2021 Roland Corporation...

  • Page 2: Connecting Devices

    beginning Connecting Devices USB *1 *4 *2–*5 INSTRUMENT (L/MONO, R) SMARTPHONE IN/OUT GUITAR/ BASS *2 HEADPHONE/ HEADSET LINE IN 2 LINE IN 1...
  • Page 3 GO:MIXER PRO-X. Connect the included USB cable first to the GO:MIXER PRO-X and then to your smartphone (p. 6). * If you are unable to record on your smartphone, slowly repeat step 2 once again.
  • Page 4 (*1) Connect only the included cable to this unit’s USB port. Also, do not connect the included cable to any device other than this unit (p. 6). (*2) You must connect your guitar, bass, or mic to this jack. If a mic and/or guitar are not connected, turn the [GUITAR/BASS] knob, [MIC] knob, or [HEADSET MIC] knob all the way to the left (the minimum setting).
  • Page 5 Connecting This Unit to Your Smartphone with an Analog Cable This unit includes a cable for making an analog connection (3.5 mm TRRS audio cable) to your smartphone. SMARTPHONE IN/OUT * A single-channel (mono) signal is sent to your smartphone. * For smartphones that do not have an earphones jack, a Lightning-3.5 mm headphone jack adapter or a USB-C to 3.5 mm headphone...
  • Page 6 Connecting a Smartphone Three USB cables for connection to a smartphone are included with this device. By using these USB cables, you can supply power from a connected smartphone to this device. Connecting an iPhone or iPad This is a Lightning–USB cable for connecting this device to an iPhone or iPad.
  • Page 7 MEMO For information about smartphone compatibility, access the following link. https://roland.cm/gomixerproxcp...

  • Page 8: Adjusting The Volume

    beginning Adjusting the Volume Adjust the knob so that the PEAK indicator lights briefly when your performance is loudest. INSTRUMENT HEADSET (L/MONO, R) PEAK If this stays lit, the sound is too loud. GUITAR/ BASS *2 HEADPHONE/ SMARTPHONE OUT *1...
  • Page 9 (*1) The [HEADPHONE/SMARTPHONE OUT] knob adjusts the overall volume that is recorded. (*2) The sound distorts if you turn the knob up too high. Adjust the knob so that the sound doesn’t distort, and raise the volume using the [HEADPHONE/SMARTPHONE OUT] knob.
  • Page 10 beginning Record Recording with a Camera App When you’re ready, use an app (such as a video camera) on your smartphone to record. * Some Android smartphones do not offer USB connectivity. For these models, connect a 3.5 mm TRRS audio cable to the earphones jack of the smartphone (p.

  • Page 11: Connection Examples

    beginning Connection Examples Here are some examples of connecting mics or instruments to this device. Make connections and settings as appropriate for the equipment that you’re using.
  • Page 12 Connecting a Mic MIC *1, 2, 3 MIC *3 HEADSET MIC (*1) If you’re using a condenser mic that requires an external power supply, set the [PHANTOM POWER] switch to “48 V. ” (*2) If you need to supply phantom power when using an iPhone or iPad, install batteries in this unit.
  • Page 13 Phantom power supply iPhone, Android conditions iPad Using batteries Supplying power from the smartphone (USB) (*3) Connect a mic going through an effect unit to the INSTRUMENT jack.
  • Page 14 Connecting a Guitar or Bass GUITAR/BASS *4, 5 INSTRUMENT (L/MONO, R) *4 (*4) If you’re routing your guitar (or bass) through an effect device, connect it to the INSTRUMENT jacks. (*5) When connecting a guitar or bass with an active pickup, use the [PAD GUITAR/BASS] switch to reduce the input signal to lower the amount of distortion.
  • Page 15 Connecting to the Headphone Jack of an Audio Player or Computer LINE IN 1, LINE IN 2...
  • Page 16 Connecting a Keyboard or Effect Unit INSTRUMENT (L/MONO, R) Connecting a Headset or Headphones HEADPHONE/ HEADSET...
  • Page 17 Recording a Mix of Instrumental Performance and Smartphone Music With the 4XCAMERA app, you can mix the sound from this unit with the music playing on your smartphone. USB *6 *7 *8 LOOP BACK=ON SMARTPHONE IN/OUT *6 *8 INSTRUMENT (L/MONO, R) GUITAR/BASS LINE IN 1 LINE IN 2...
  • Page 18 (*6) If you want to record video using your camera app or 4XCAMERA while playing back music from your smartphone, turn the [LOOP BACK] switch “ON. ” (*7) Audio is output to the smartphone as two channels (stereo). (*8) If you are using the 4XCAMERA app, select some music on your smartphone.
  • Page 19 Multitrack Recording with a DAW USB *9 *10 INSTRUMENT (L/MONO, R) GUITAR/BASS LINE IN 1 LINE IN 2 LOOP BACK=OFF *9 (*9) If you want to use a DAW app to record your performance, set the [LOOP BACK] switch to the “OFF” position.

  • Page 20: Using Batteries

    beginning Using Batteries If you’re not supplying power from the smartphone, install batteries in this unit. Turn the battery cover counterclockwise to remove it. Insert batteries as shown in the illustration (pay attention to the polarity). Turn the battery cover clockwise to attach it.
  • Page 21 Set the [BATTERY] switch to the “ON” position. *1 (*1) Don’t operate the [BATTERY] switch while a smartphone is connected. Doing so might destabilize the smartphone’s operation. * If operating on batteries, the POWER indicator blinks when the batteries run low. If you continue using the unit in this state, the power automatically turns off after approximately one minute.

  • Page 22: Block Diagram

    beginning Block Diagram +48 V PHANTOM POWER HEADSET MIC GUITAR/BASS LINE IN 1 LINE IN 2 INSTRUMENT PEAK SMART- PHONE IN SMART- PHONE LOOP HEADPHONE BACK...

  • Page 23: Main Specification

    beginning Main Specification Number of Audio Input 11 channels Channels Output 3 channels INSTRUMENT 1/4-inch phone (L/MONO, R) jacks type Stereo miniature LINE IN 1 jack phone type Stereo miniature LINE IN 2 jack phone type 1/4-inch phone GUITAR/BASS jack type (supports high impedance) Stereo miniature...
  • Page 24 Lightning to USB micro-B type cable USB Type-C® to USB micro-B type cable 3.5 mm TRRS audio cable * This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website. https://www.roland.com/...
