RGB540SEH – Hotpoint 30" Free-Standing Gas Range

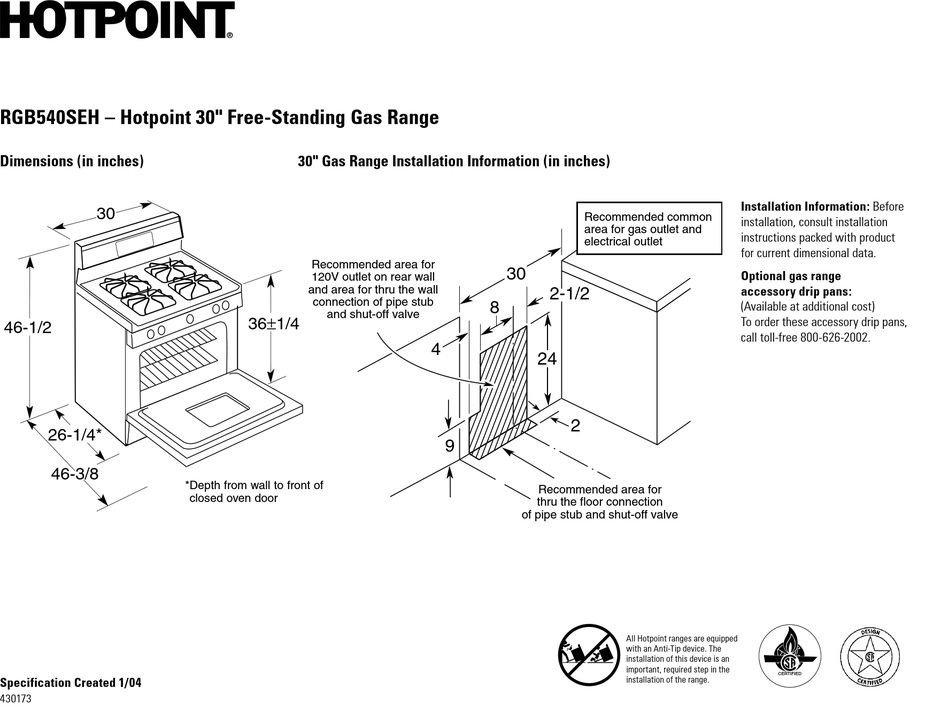

Dimensions (in inches)
30
46-1/2
26-1/4*
46-3/8
30
Specification Created 1/04
C L
430173
8
®
30" Gas Range Installation Information (in inches)
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36±1/4
*Depth from wall to front of
closed oven door
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
2-1/2
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
4
24
2
9
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Installation Information: Before
installation, consult installation
instructions packed with product
for current dimensional data.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
CERTIFIED
installation of the range.
Advertisement
Related Manuals for Hotpoint Hotpoint RGB540SEHSA
Summary of Contents for Hotpoint Hotpoint RGB540SEHSA
- Page 1 26-1/4* 46-3/8 *Depth from wall to front of closed oven door Recommended common area for gas outlet and electrical outlet for GE free-standing gas range models Specification Created 1/04 430173 2-1/2 30" Gas Range Installation Information (in inches) Recommended area for...
-
Page 2: Features And Benefits
• Simmer Burner – Provides low, even heat distribution for delicate foods and sauces. • All Purpose Burners – Deliver a wide range of heat output ideal for most cooking requirements. • Electronic Clock and Timer – Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen.
